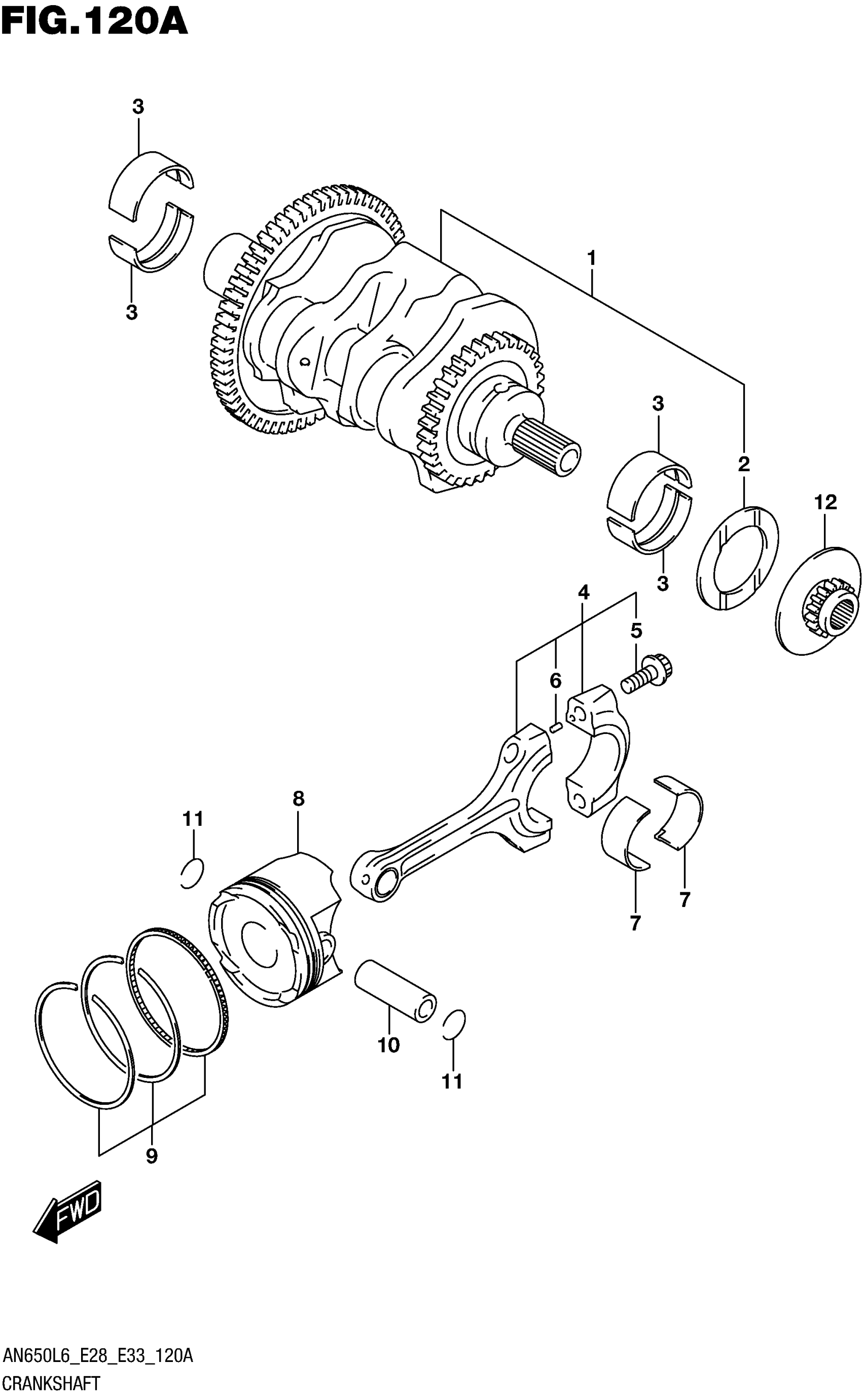

Suzuki AN650L6 (2016) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12200-10830

Unavailable

2-1

.WASHER (48.1X64X2.04)

09160-48005

Unavailable

2-2

.WASHER (48.1X64X2.06)

09160-48006

$30.35

2-3

.WASHER (48.1X64X2.09)

09160-48007

Unavailable

2-4

.WASHER (48.1X64X2.11)

09160-48008

Unavailable

2-5

.WASHER (48.1X64X2.14)

09160-48009

Unavailable

2-6

.WASHER (48.1X64X2.16)

09160-48010

$30.35

3-1

BEARING, CRANKSHAFT (GREEN)

12229-10G01-0A0

Unavailable

3-2

BEARING, CRANKSHAFT (BLACK)

12229-10G01-0B0

Unavailable

3-3

BEARING, CRANKSHAFT (BROWN)

12229-10G01-0C0

Unavailable

4

CONNROD ASSY

12160-10G00

Unavailable

5

.BOLT, CONNROD

12163-10G00

Unavailable

6

.PIN, CONNROD

12165-27A50

$1.54

7-1

BEARING, CRANK PIN (GREEN)

12164-10G00-0A0

Unavailable

7-2

BEARING, CRANK PIN (BLACK)

12164-10G00-0B0

Unavailable

7-3

BEARING, CRANK PIN (BROWN)

12164-10G00-0C0

Unavailable

7-4

BEARING, CRANK PIN (YELLOW)

12164-10G00-0D0

Unavailable

8

PISTON (YELLOW)

12111-10G11-0F0

$113.93

9

RING SET, PISTON

12140-10G10

Unavailable

10

PIN,PISTON

12151-10G00

$20.52

11

SNAP RING

09381-16001

$1.67

12

SPROCKET, CAM CHAIN DRIVE (NT

12731-10G10

Unavailable
