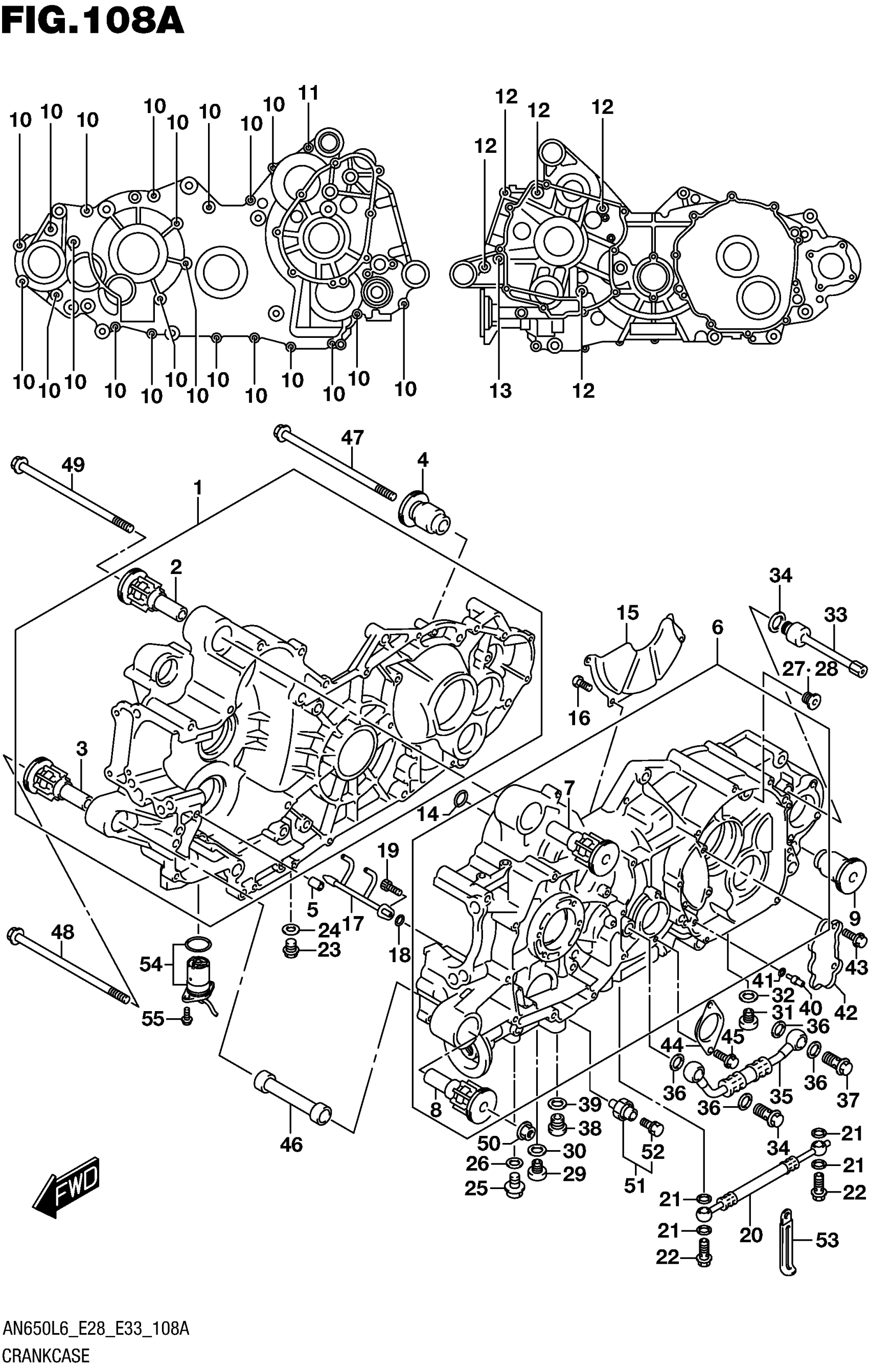

Suzuki AN650L6 (2016) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET, RH

11310-10831

Unavailable

2

.BUSH, ENGINE MTG

11652-10G00

$27.80

3

.BUSH, ENGINE MTG

11652-10G30

$24.62

4

BUSH, ENGINE MTG

11651-10G00

$27.85

5

PIN,CRANKCASE

11319-33E50

$5.32

6

CRANKCASE SET, LH

11320-10831

Unavailable

7

.BUSH, ENGINE MTG

11652-10G00

$27.80

8

.BUSH, ENGINE MTG

11652-10G30

$24.62

9

BUSH, ENGINE MTG

11651-10G00

$27.85

10

BOLT

01547-0635A

$2.30

11

BOLT

01547-0685A

Unavailable

12

BOLT

01550-0895A

$4.60

13

BOLT (8X105)

09103-08097

$3.44

14

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

15

SEPARATOR, CRANKCASE OIL

11323-10G00

Unavailable

16

BOLT

07130-0612A

$2.50

17

JET, PISTON COOLING

11390-10G00

Unavailable

18

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

19

BOLT

07130-0612A

$2.50

20

PIPE, CRANKCASE OIL

11282-10G10

$102.17

21

GASKET (10.1X16X1)

09168-10007

$1.71

22

UNION

09360-10066

$4.73

23

PLUG (10X12)

09247-10008

$1.97

24

GASKET (10X14X3.6)

09168-10002

$2.13

25

BOLT (8X12)

01550-0812A

$2.32

26

GASKET (8.2X14X1)

09168-08016

$1.65

27

PLUG (16X8)

09248-16012

$4.64

28

GASKET (16X22X2)

09168-16002

$1.91

29

PLUG (14X20) | OIL DRAIN

09247-14036

$6.17

30

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

31

PLUG | OIL DRAIN

09248-12008

$10.28

32

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

33

PLUG, T/M OIL FILLER

11326-10G00

$10.48

34

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

35

PIPE, OIL PUMP NO.2

11328-10G20

Unavailable

36

.GASKET (14X20X1.5)

09168-14015

$2.03

37

UNION

09360-14012

$10.86

38

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

39

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

40

JET(8)

09493-80005

$16.25

41

O RING (D:1.2,ID:4)

09280-04004

$1.91

42

COVER, CRANKCASE LH

11324-10G00

Unavailable

43

BOLT (6X12) | LH

09103-06172

$1.68

44

CAP, PRIMARY SHAFT LH

11325-10G10

$5.10

45

BOLT (6X12) | LH

09103-06172

$1.68

46

SPACER, ENG MTG FRONT

11611-10G00

Unavailable

47

BOLT (10X235) | LOWER

09103-10460

Unavailable

48

BOLT (10X305) | FRONT

09103-10153

$23.93

49

BOLT (10X275) | UPPER

09103-10347

$21.83

50

NUT

08319-3110A

$2.73

51

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

52

.BOLT

37822-33D00

$4.35

53

CLAMP (L:45)

09404-06429

$1.83

54

SWITCH ASSY, OIL LEVEL

37990-10G10

$164.73

55

BOLT

01547-0616A

$2.03
