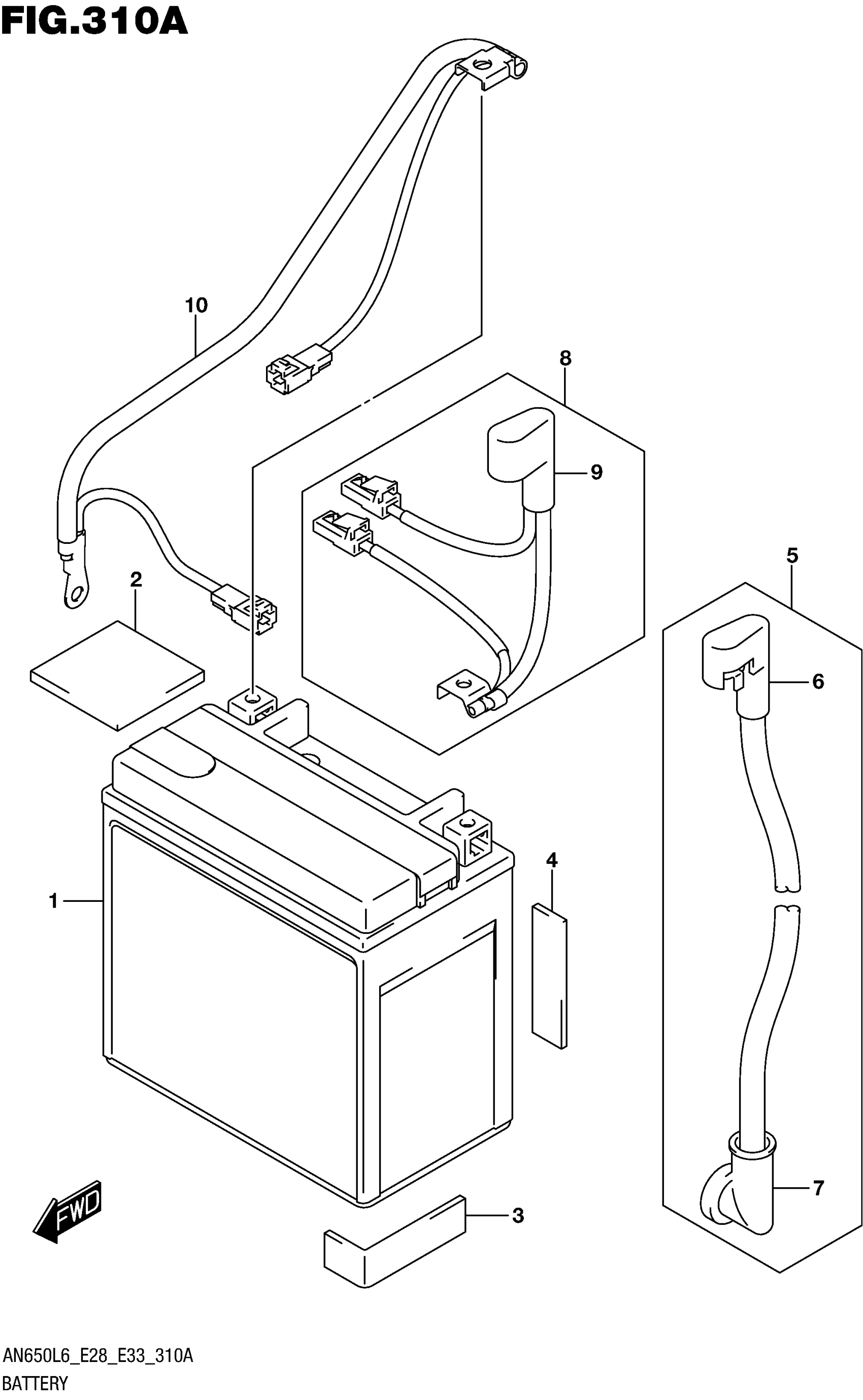

Suzuki AN650L6 (2016) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY This part replaces 33610-26D10.

33610-38F02

$125.32

1

BATTERY ASSY This part replaces 33610-26D10.

33610-38F02

$125.32

2

PROTECTOR (50X50X5.0)

33652-20C00

$2.99

3

PROTECTOR (20X90X4)

33652-49000

$3.58

4

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

5

WIRE, STARTER

33810-10G00

Unavailable

6

.CAP, STARTER RELAY

31861-29F00

$7.63

7

.CAP, STARTER MOTOR

31861-48B10

$6.55

8

WIRE,BATTERY PL This part replaces 33820-10G00.

33820-10G01

$43.88

9

.CAP,STARTER RELAY

31861-29F10

$7.35

10

WIRE, BATTERY MINUS

33860-10G00

Unavailable
