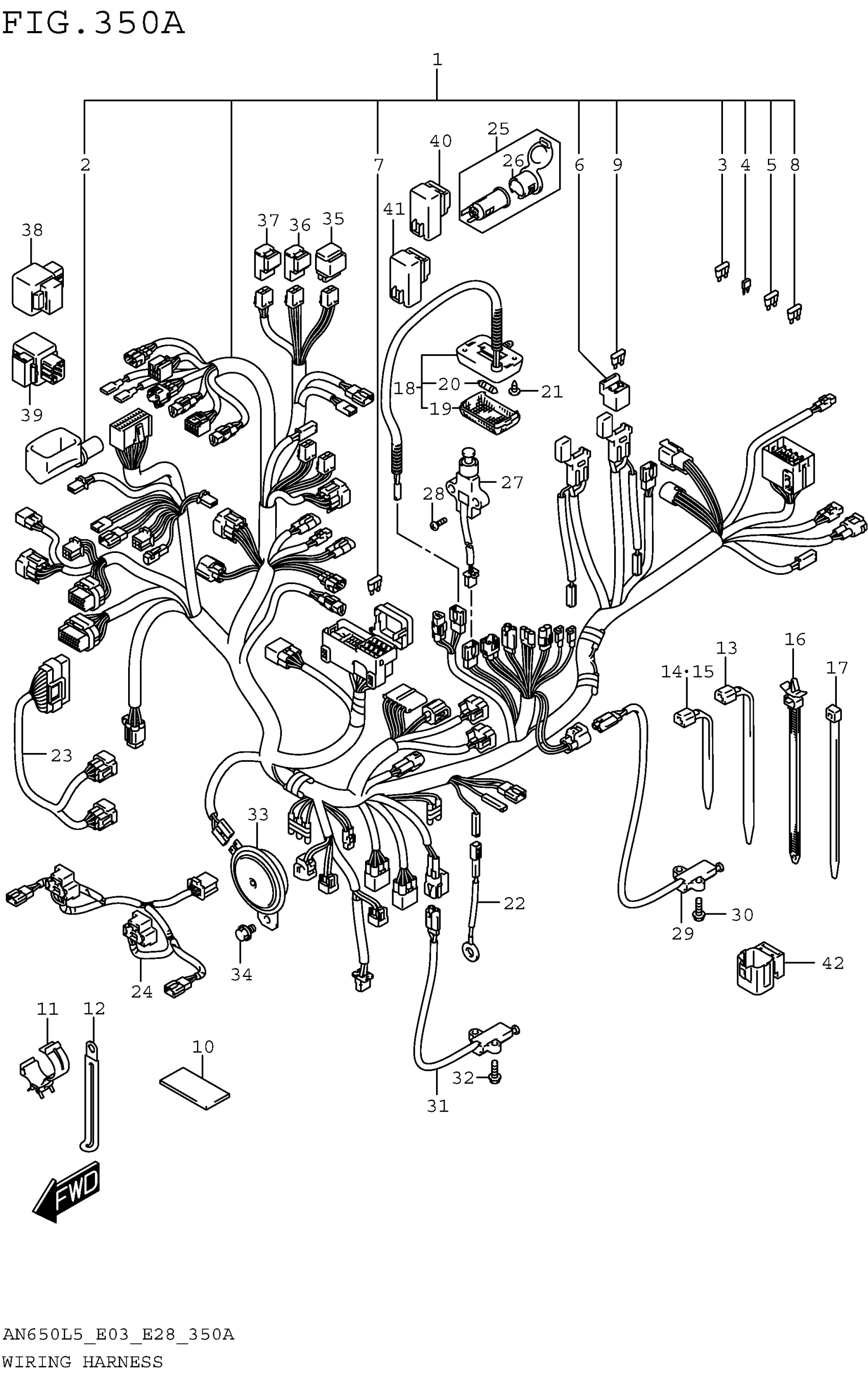

Suzuki AN650L5 (2015) WIRING HARNESS (AN650L5 E03) Diagram

HARNESS,WIRING This part replaces 36610-26J80.

36610-26J81

$839.10

COVER

36618-41G00

Unavailable

FUSE (3A)

09481-03502

Unavailable

FUSE (10A)

09481-10501

$2.06

FUSE (15A)

09481-15501

$2.02

HOLDER

36742-45G00

$23.63

FUSE (15A)

09481-15501

$2.02

FUSE (20A)

09481-20501

Unavailable

FUSE (40A)

09481-40101

$9.35

PROTECTOR

36920-08D00

Unavailable

CLAMP

09403-30403

Unavailable

CLAMP (L:45)

09404-06429

$1.83

CLAMP (L:125)

09407-14403

$2.26

CLAMP (L:190)

09407-19401

$3.05

CLAMP (L:165)

09407-18402

$2.19

CLAMP (L:90)

09407-11402

$1.80

CLAMP (L:145)

09407-14407

$3.57

LAMP ASSY, TRUNK BOX

36210-10G00

Unavailable

LENS

36212-79001

Unavailable

BULB (12V,5W)

09471-12073

$3.03

SCREW

03541-0412A

$1.49

WIRE, OIL PRESSURE SWITCH LEAD

36851-26J00

Unavailable

HARNESS, WIRING NO.2

36620-26J00

$203.85

WIRE,HEADLAMP L This part replaces 36856-26J00.

36856-26J01

$61.77

TERMINAL, POWER SOURCE (GRAY)

39410-49F00-P4Z

Unavailable

COVER (GRAY)

39441-49F00-P4Z

$9.07

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

.SCREW

02112-0516A

$1.49

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$80.70

BOLT

01550-0620A

$1.97

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$70.52

BOLT

01550-0620A

$1.97

HORN ASSY

38500-26J00

$79.70

BOLT

01550-0812B

$2.73

RELAY ASSY | FAN MOTOR

38740-38B00

$63.30

RELAY ASSY,FUEL PUMP | SIDE STAND This part replaces 38740-26E00.

38740-26E01

$38.58

RELAY ASSY,FUEL PUMP | FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

RELAY ASSY | MIRROR MOTOR

38750-03G00

$145.53

RELAY ASSY | SCREEN

38750-10G00

Unavailable

RELAY ASSY | LOW BEAM

38740-04J00

$45.38

RELAY ASSY,FUEL PUMP | HEAD LAMP This part replaces 38740-26E00.

38740-26E01

$38.58

CAP, TS

36654-06J40

Unavailable
