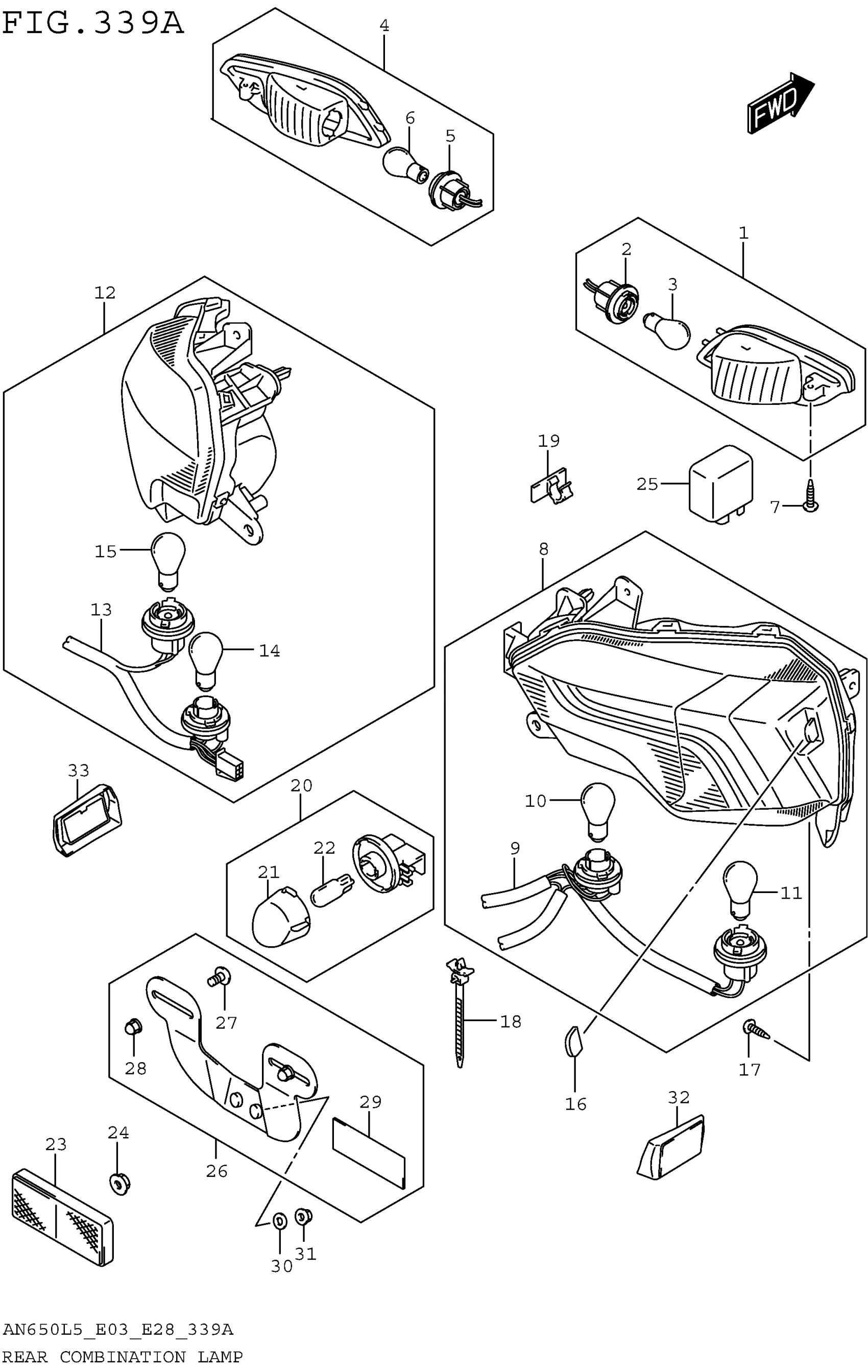

Suzuki AN650L5 (2015) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-26J00

$75.87

2

SOCKET, RH

35618-26J00

Unavailable

3

BULB (12V,21W)

09471-12186

$12.66

4

LAMP ASSY, FRONT TURNSIGNAL LH

35602-26J00

$74.47

5

SOCKET, LH

35638-26J00

$64.94

6

BULB (12V,21W)

09471-12186

$12.66

7

SCREW

03541-0520A

$1.80

8

LAMP ASSY, REAR COMBINATION RH

35603-26J01

$176.27

9

SOCKET & CORD, RH

35658-26J01

Unavailable

10

BULB (12V,21/5W) This part replaces 09471-12046.

09471-12128

$6.73

11

BULB (12V,21W)

09471-12186

$12.66

12

LAMP ASSY, REAR COMBINATION LH

35604-26J01

$180.85

13

SOCKET & CORD, LH

35678-26J01

Unavailable

14

BULB (12V,21/5W) This part replaces 09471-12046.

09471-12128

$6.73

15

BULB (12V,21W)

09471-12186

$12.66

16

CUSHION

09329-18001

$1.91

17

SCREW

03541-0516A

$1.49

18

CLAMP (L:90)

09407-11402

$1.80

19

CLAMP

09403-10318

Unavailable

20

LAMP ASSY, LICENSE

35910-14F01

$30.22

21

LENS

35912-14F11

$8.28

22

.BULB (12V5W)

09471-12216

$5.36

23

REFLECTOR ASSY, REAR SIDE

35970-07F01

$20.88

24

NUT

08316-1005A

$2.19

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08

26

BRACKET, LICENSE PLATE

35927-10G00

Unavailable

27

SCREW

02142-0612B

$2.05

28

NUT

08313-2006B

$2.85

29

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.03

30

WASHER (6.5X24X1.2)

09160-06114

$2.03

31

NUT

08316-1006A

$2.19

32

REFLECTOR ASSY, REAR SIDE RH

35973-26J00

$71.79

33

REFLECTOR ASSY, REAR SIDE LH

35974-26J00

$71.79
