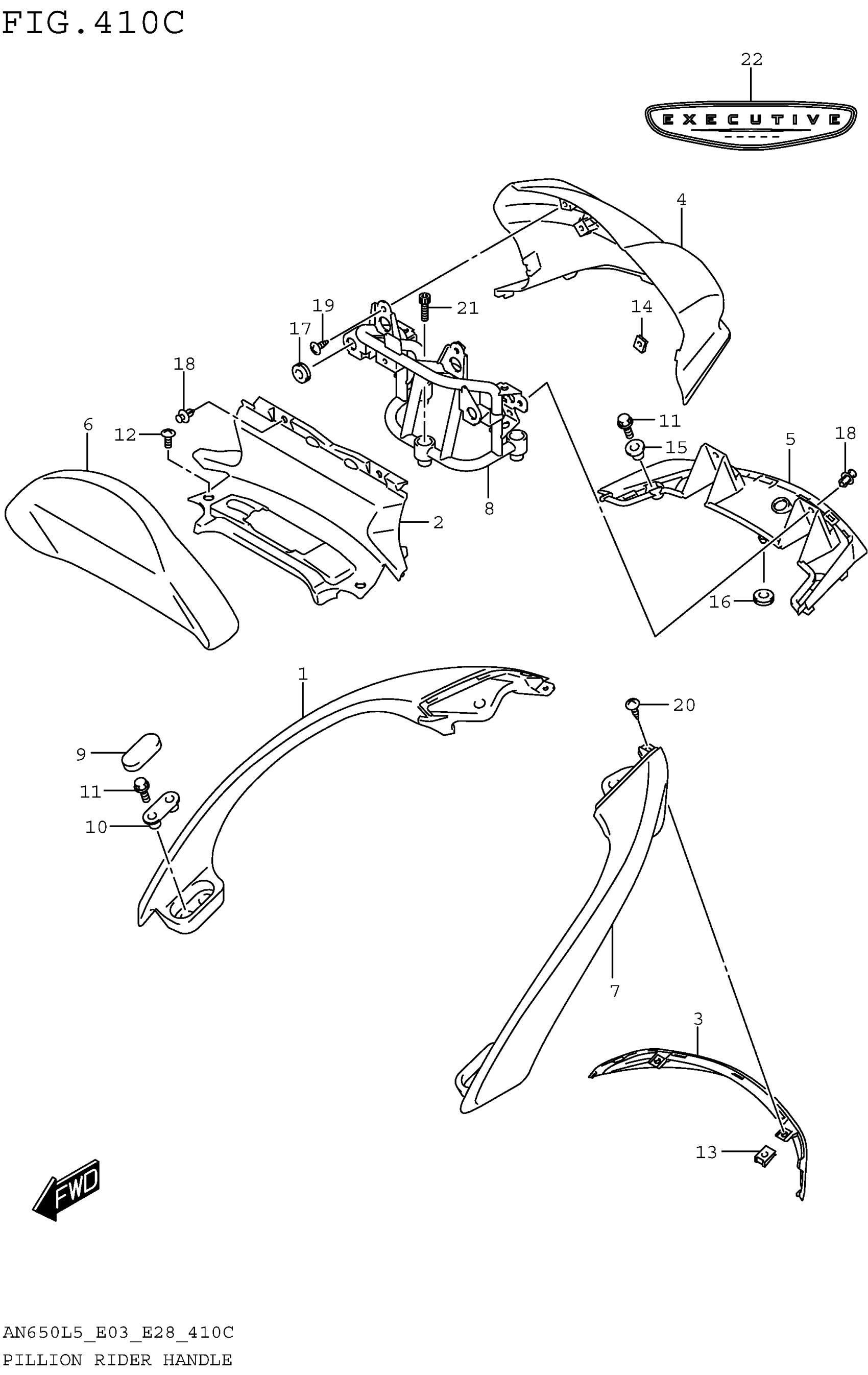

Suzuki AN650L5 (2015) PILLION RIDER HANDLE (AN650ZL5 E28) Diagram

#

Description
Price

1

HANDLE, PILLION RIDER RH (GRAY)

46210-26J01-PGZ

$194.95

1

HANDLE, PILLION RIDER RH (WHITE)

46210-26J01-RB5

$197.70

1

HANDLE, PILLION RIDER RH (BLACK)

46210-26J01-YKV

$168.48

2

COVER, BACKREST FRONT (GRAY)

46215-26J10-PGZ

Unavailable

2

COVER, BACKREST FRONT (WHITE) This part replaces 46215-26J10-RB5.

46215-26J11-RB5

$36.63

2

COVER, BACKREST FRONT (BLACK)

46215-26J10-YKV

Unavailable

3

COVER, PILLION RIDER HDL LOWE This part replaces 46216-26J00-291.

46216-26J50

$10.67

4

COVER, BACKREST REAR (GRAY)

46216-26J10-PGZ

Unavailable

4

COVER, BACKREST REAR (WHITE)

46216-26J10-RB5

$77.42

4

COVER, BACKREST REAR (BLACK)

46216-26J10-YKV

$66.33

5

COVER, BACKREST REAR LOWER (GRAY)

46217-26J10-PGZ

Unavailable

5

COVER, BACKREST REAR LOWER (WHITE)

46217-26J10-RB5

Unavailable

5

COVER, BACKREST REAR LOWER (BLACK)

46217-26J10-YKV

Unavailable

6

BACKREST ASSY,P This part replaces 46220-26J10-AGJ.

46220-26J11-AGJ

$134.57

7

HANDLE, PILLION RIDER LH (GRAY)

46230-26J01-PGZ

Unavailable

7

HANDLE, PILLION RIDER LH (WHITE)

46230-26J01-RB5

$250.02

7

HANDLE, PILLION RIDER LH (BLACK)

46230-26J01-YKV

Unavailable

8

BRACKET, PILLION BACKREST

46240-26J10

Unavailable

9

CAP, PILLION RIDER HANDLE BOLT

46251-10G00

Unavailable

10

WASHER, PILLION

46290-10G01

Unavailable

11

BOLT (8X25)

09106-08151

$3.70

12

SCREW (6X16)

09139-06139

$3.23

13

NUT

09148-05038

$1.97

14

NUT

09148-05038

$1.97

15

WASHER

09169-08049

$4.11

16

CUSHION

09320-08028

$3.04

17

CUSHION

09320-08049

$3.26

18

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10

19

SCREW

03541-0512A

$1.49

20

SCREW

03541-0512A

$1.49

21

BOLT

07130-0825A

$3.04

22

EMBLEM, "EXECUTIVE"

68165-26J10

$41.33
