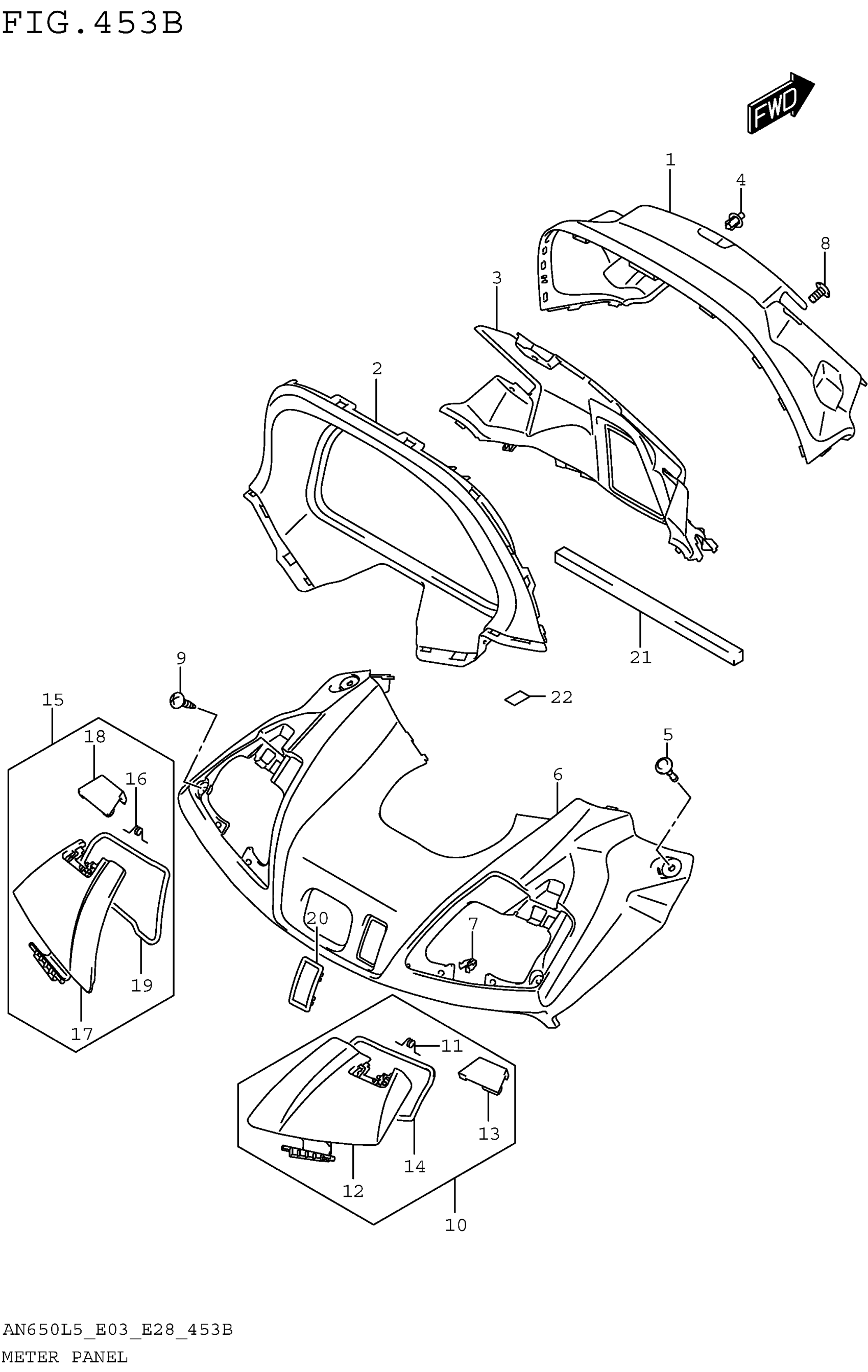

Suzuki AN650L5 (2015) METER PANEL (AN650L5 E33) Diagram

#

Description
Price

1

PANEL, METER FRONT UPPER This part replaces 94421-26J01-291.

94421-26J50

$31.00

2

PANEL, METER REAR This part replaces 94422-26J02-291.

94422-26J50

$39.28

3

PANEL, METER FRONT LOWER This part replaces 94424-26J00-291.

94424-26J50

$31.57

4

CLIP, METER PANEL FRONT

94479-35F00

$5.62

5

CLIP, FRONT PANEL

94479-35F00

$5.62

6

PANEL, FRONT This part replaces 94671-26J02-291.

94671-26J51

$69.76

7

CLIP

09409-08326

$2.48

8

SCREW

02142-0512B

$2.05

9

SCREW

03541-0516B

$1.78

10

LID, FRONT PANEL BOX RH This part replaces 92140-26J00-291.

92140-26J50

$42.77

11

SPRING

73843-81J00

$3.74

12

.LID, FRONT PANEL RH This part replaces 92142-26J00-291.

92142-26J50

$17.77

13

.LOCK, FRONT PANEL BOX RH This part replaces 92143-26J00-291.

92143-26J50

$11.52

14

CUSHION, FRONT PANEL LID

92145-26J00

$5.30

15

LID, FRONT PANEL BOX LH This part replaces 92150-26J00-291.

92150-26J50

$57.28

16

SPRING

73843-81J00

$3.74

17

.LID, FRONT PANEL LH This part replaces 92152-26J00-291.

92152-26J50

$21.62

18

LOCK, FRONT PANEL BOX LH (BLACK)

92153-26J00-291

$11.57

19

CUSHION, FRONT PANEL LID

92145-26J00

$5.30

20

GROMMET, FRONT PANEL

94672-26J00

$25.14

21

CUSHION, METER PANEL

94425-26J00

$5.73

22

TAPE, METER PANEL

94432-19F00

Unavailable
