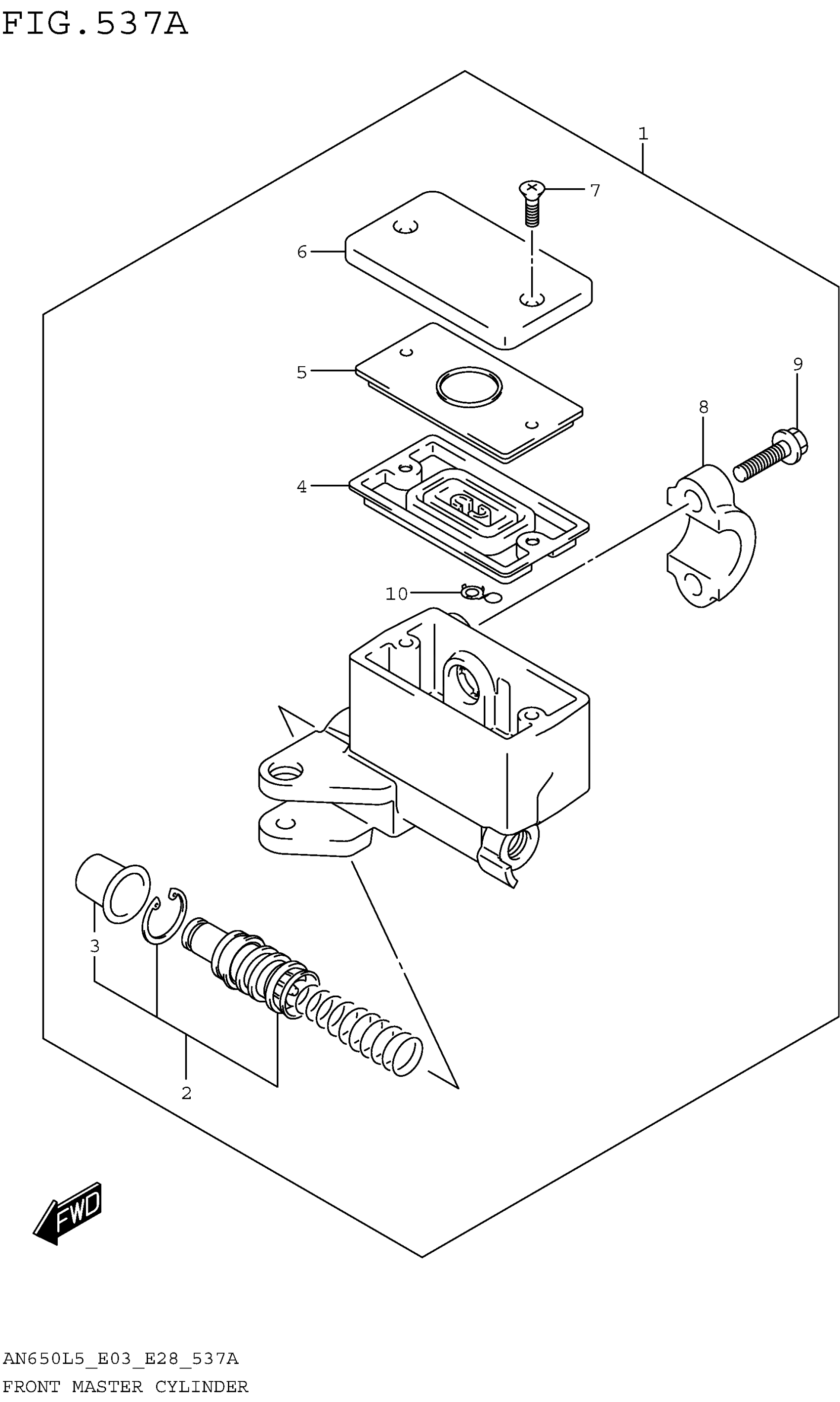

Suzuki AN650L5 (2015) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10G20

$317.03

2

PISTON/CUP SET

59600-45850

$39.48

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-49460

$9.78

5

PLATE, DIAPHRAGM

59668-41C00

$9.32

6

CAP

59669-10G00

$38.30

7

SCREW

69689-49300

$1.91

8

.HOLDER

59671-36500

$12.21

9

BOLT (6X22)

59675-02FA0

$3.82

10

PROTECTOR

59664-32F00

$11.68
