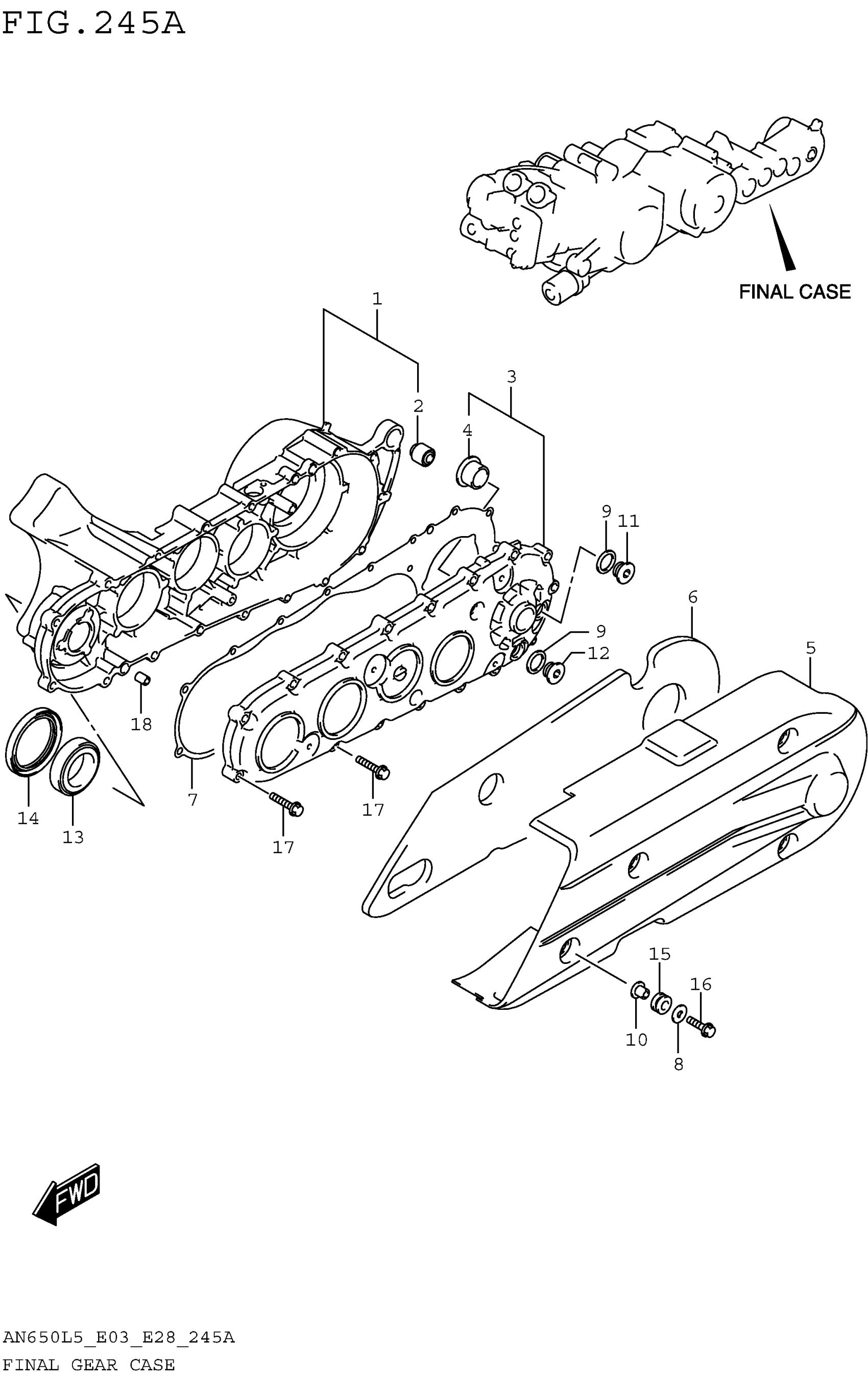

Suzuki AN650L5 (2015) FINAL GEAR CASE Diagram

#

Description
Price

1

CASE, FINAL GEAR RH

27450-10G10

Unavailable

2

BUSH (10.2X22.3X20)

09319-10032

$9.27

3

CASE, FINAL GEAR LH

27460-26J00

$311.77

4

BUSH

27433-24A00

Unavailable

5

COVER, FINAL GEAR CASE

27471-10G00

$125.61

6

CUSHION, FINAL GEAR CASE

27472-10G01

Unavailable

7

GASKET, FINAL GEAR CASE

27551-10G00

$24.03

8

WASHER (6.5X18X1.6)

09160-06109

$1.49

9

GASKET (18X24.2X2)

09168-18003

$1.49

10

WASHER

09169-06062

$2.50

11

PLUG

09248-18012

Unavailable

12

PLUG | OIL DRAIN

09248-18013

Unavailable

13

BEARING (35X55X14) | RH

09265-35012

Unavailable

14

SEAL,OIL(53X68. | RH This part replaces 09283-53002.

09283-53003

$12.72

15

CUSHION

09320-09016

$1.97

16

BOLT

01547-0625B

$2.45

17

BOLT

01547-0630A

$2.32

18

PIN

04211-09149

$1.65
