Description

Price

1

RELAY ASSY,STAR This part replaces 31800-10G00.

31800-10G02

$67.77

2

SCREW (6X8)

09128-06013

$1.49

3

RECTIFIER ASSY This part replaces 32800-26J00.

32800-26J02

$262.27

4

PLATE, RECTIFIER

32832-26J00

Unavailable

5

SCREW

02162-0630A

$2.07

6

COIL ASSY, IGNITION

33410-47H00

$150.98

7

CONTROL UNIT,FI This part replaces 32920-26J10.

32920-26J11

$1,553.52

8

CUSHION, FI CONTROL UNIT

33651-37000

$4.48

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

10

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

11

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

$2.60

12

SENSOR ASSY, CAM POSITION

32160-02F10

$150.35

13

PACKING

32161-02F00

$9.72

14

BOLT (6X16)

09106-06073

$2.39

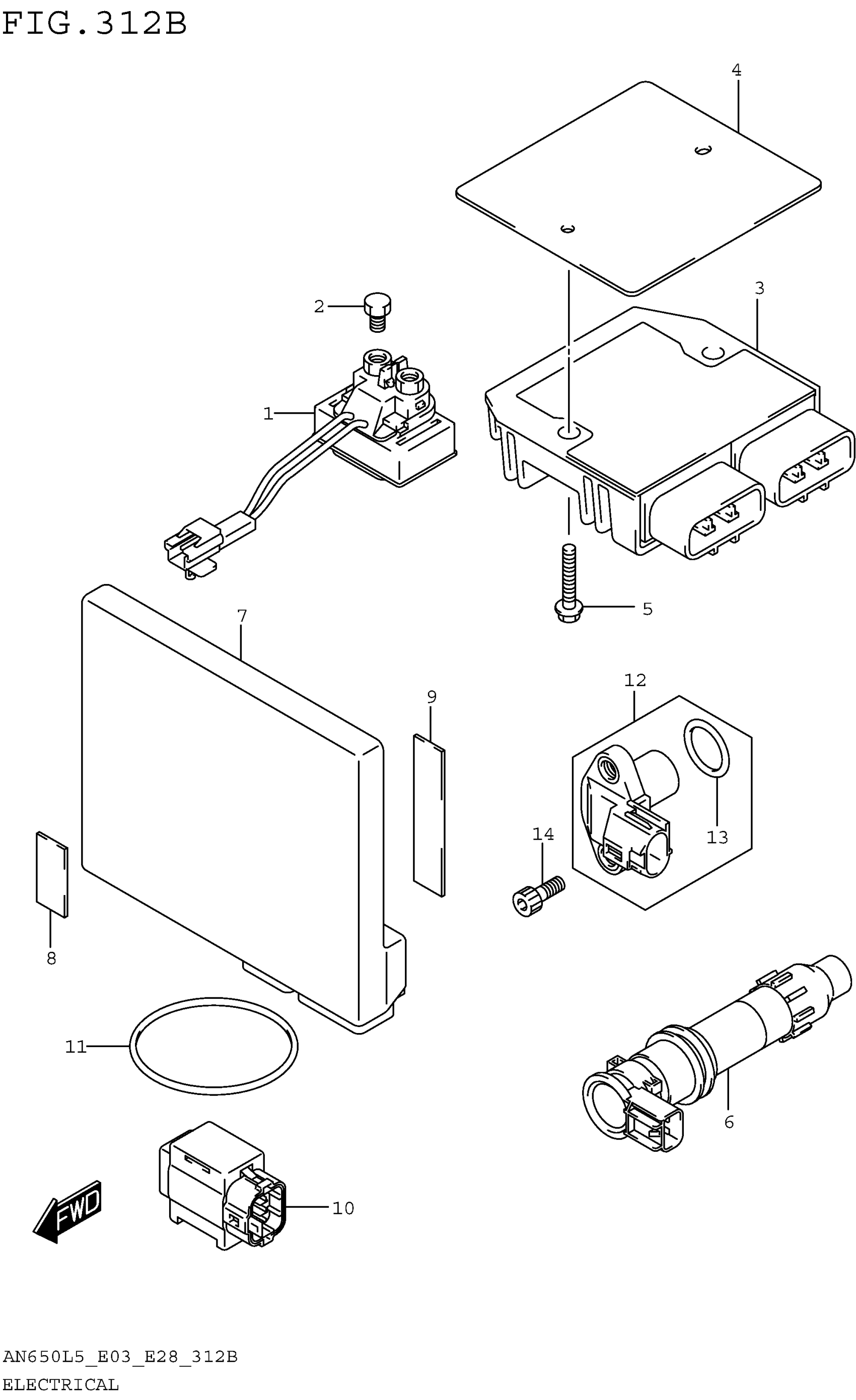

Suzuki AN650L5 (2015) ELECTRICAL (AN650L5 E33) Diagram
