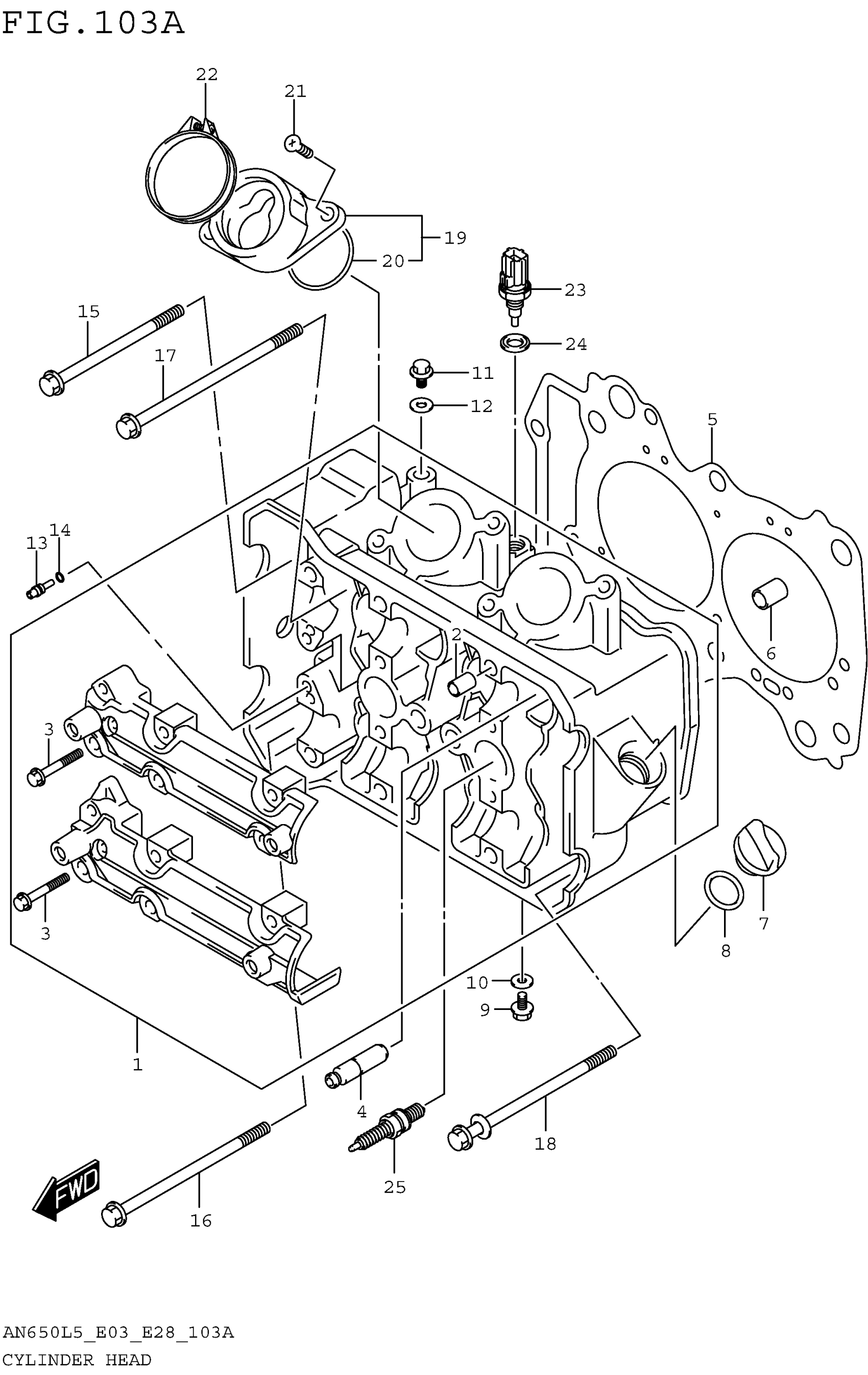

Suzuki AN650L5 (2015) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-10G10

Unavailable

2

PIN (8X11)

09206-08001

$1.78

3

BOLT (6X40)

09103-06266

$2.12

4

GUIDE, VALVE (OS:0.3) | OPT

11115-33D71

$40.73

5

GASKET, CYLINDER HEAD

11141-10G00

$42.45

6

PIN

04211-13189

$2.19

7

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

8

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

9

BOLT (6X12)

09103-06222

$2.26

10

GASKET (5.8X13X1.2)

09168-06023

$2.35

11

BOLT (8X9.5)

09103-08421

$4.12

12

GASKET (8.2X14X1)

09168-08016

$1.65

13

JET AIR(14)

09493-28010

$16.57

14

O RING (D:1.2,ID:4)

09280-04004

$1.91

15

BOLT, CYLINDER HEAD (L:110)

11161-10G50

Unavailable

16

BOLT (8X135)

09103-08212

$7.47

17

BOLT (10X150)

09116-10130

Unavailable

18

BOLT (10X155)

09116-10133

Unavailable

19

PIPE ASSY,INTAK This part replaces 13101-10G00.

13101-10G01

$51.27

20

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

21

SCREW

02122-0616A

$1.49

22

CLAMP

13170-39H00

Unavailable

23

SENSOR, WATER TEMP

13650-49X00

$90.19

24

GASKET (12X17X1)

09168-12017

$1.95

25

SPARK PLUG (CR8E) | NGK

09482-00456

$6.73

25

SPARK PLUG (U24ESR-N) | DENSO

09482-00457

$6.09

25

SPARK PLUG (CR7E) | OPT NGK

09482-00516

$6.47

25

SPARK PLUG (U22ESR-N) | OPT DENSO

09482-00515

$5.97

25

PLUG SPARK (CR9E) | OPT NGK

09482-00458

$6.47

25

SPARK PLUG (U27ESR-N) | OPT DENSO

09482-00459

$6.09
