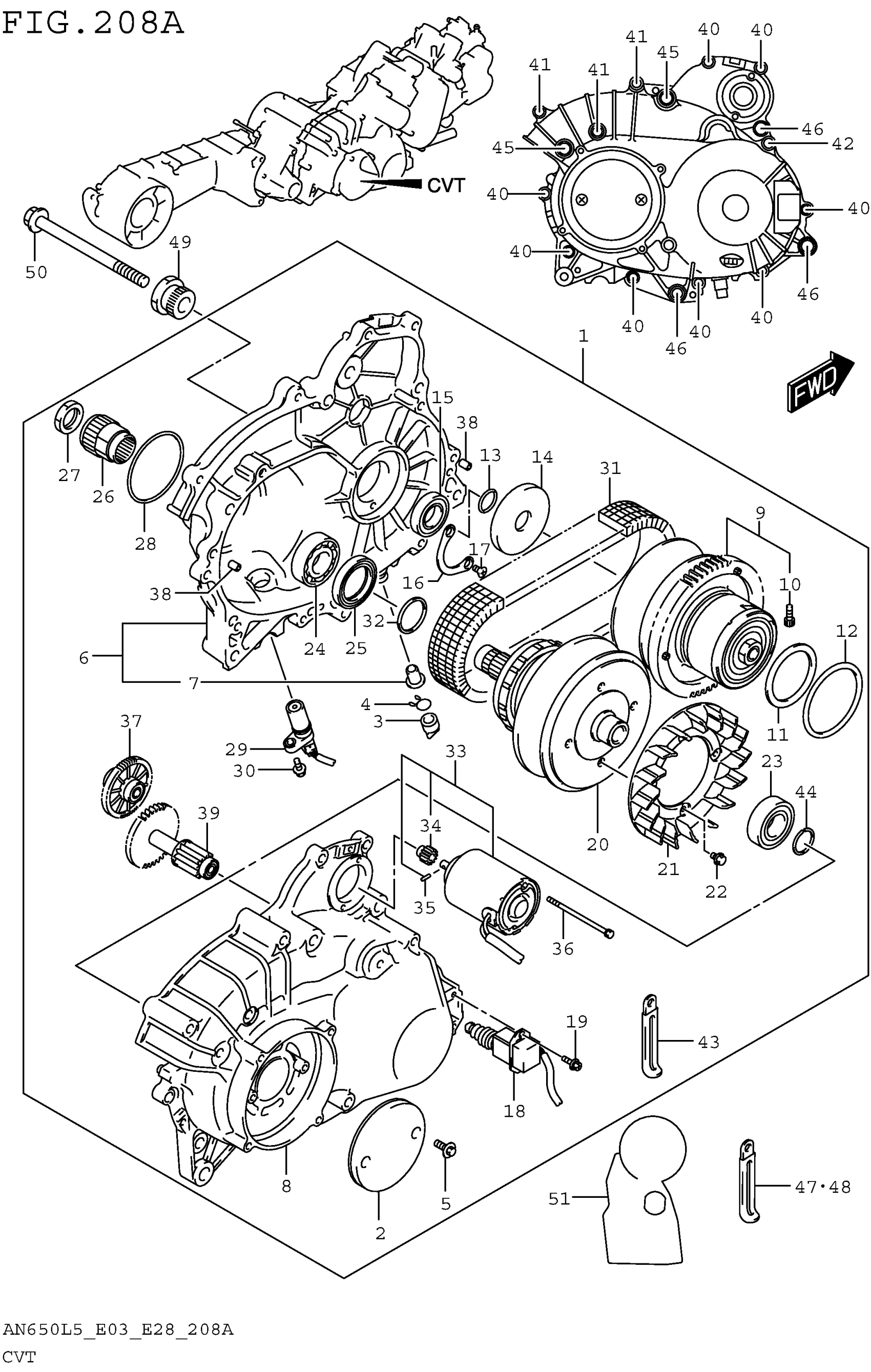

Suzuki AN650L5 (2015) CVT Diagram

#

Description
Price

1

UNIT SET,CVT This part replaces 21000-10832.

21000-10834

$4,643.55

2

FILTER, BELT COOLING

11388-10G00

$20.82

3

CAP,DRAIN This part replaces 13872-00110.

13872-00111

$4.48

4

CLIP

09401-13409

$2.12

5

BOLT (6X20)

09116-06182

$2.30

6

CASE, CVT

21910-10G01

Unavailable

7

UNION

09364-12002

Unavailable

8

COVER, CVT

21921-10G00

Unavailable

9

.PULLEY ASSY, PRIMARY This part replaces 21070-10810.

21070-10811

$1,034.63

10

BOLT, SHAFT STOPPER

21748-10G20

$10.81

11

SHIM SET, PRIMARY PULLEY | T:0.12/0.32/0.52/ 1.12/1.32

21746-10G00

$49.97

12

O RING, PRIMARY PULLEY RH

21747-10G00

$13.73

13

O RING (D:1.2,ID:20.8)

09280-21014

$2.92

14

SEAL, PRIMARY DUST

21757-10G00

$19.78

15

BEARING, PRIMARY PULLEY LH

21751-10G00

$50.70

16

RETAINER, PRIMARY BEARING LH

21753-10G00

Unavailable

17

SCREW, PULLEY BEARING

21754-10G00

Unavailable

18

PPS ASSY This part replaces 26142-78G90.

26142-78G91

$307.85

19

BOLT, PULLEY POSITION SENSOR

24833-58E90

Unavailable

20

PULLEY ASSY, SECONDARY

21081-10G00

$1,171.22

21

FAN, SEC FIXED PULLEY

21815-10G00

Unavailable

22

BOLT, FAN PULLEY

21816-10G00

$8.05

23

BEARING, SECONDARY RH

21817-10G00

$48.23

24

BEARING, SECONDARY LH

21851-10G00

$67.73

25

SEAL, SECONDARY PULLEY

21852-10G10

$29.58

26

ADAPTER, SECONDARY FIXED

21855-10G00

Unavailable

27

NUT, SECONDARY ADAPTER

21856-10G00

$19.62

28

O RING, CVT CASE

21916-10G00

$17.03

29

SENSOR ASSY, SECONDARY

21860-10G00

$123.73

30

BOLT, SECONDARY SENSOR

24832-78G90

Unavailable

31

V BELT, DRIVE

27601-10G00

$658.78

32

COLLAR, SECONDARY PULLEY ADPT

21853-10G00

$16.28

33

MOTOR ASSY,CVT This part replaces 21076-10G01.

21076-10G02

$405.63

34

GEAR, ACTR DRIVE

25112-78G90

$11.23

35

PIN, ACTR DRIVE

25113-58E90

$6.80

36

BOLT, CVT MOTOR

24834-58E90

Unavailable

37

GEAR ASSY, ACTUATOR COUNTER

21077-10G00

$87.90

38

PIN, CVT COVER

21925-10G00

Unavailable

39

GEAR ASSY, ACTR IDLER

21078-10G00

$106.22

40

BOLT, CVT COVER (L:30)

21931-10G00

$7.53

41

BOLT, CVT COVER (L:70)

21932-10G00

Unavailable

42

BOLT, CVT COVER (L:90)

21933-10G00

Unavailable

43

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.35

44

RING SECONDARY PULLEY

21818-10G00

$14.27

45

BOLT (10X140)

09103-10119

$9.58

46

BOLT (10X110)

09103-10318

$6.73

47

CLAMP (L:45)

09404-06429

$1.83

48

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

49

ADAPTER, PRIMARY SHAFT

21282-10G00

$38.95

50

BOLT (12X130)

09103-12077

$8.02

51

CVT, HEAT GUARD

21001-26J00

Unavailable
