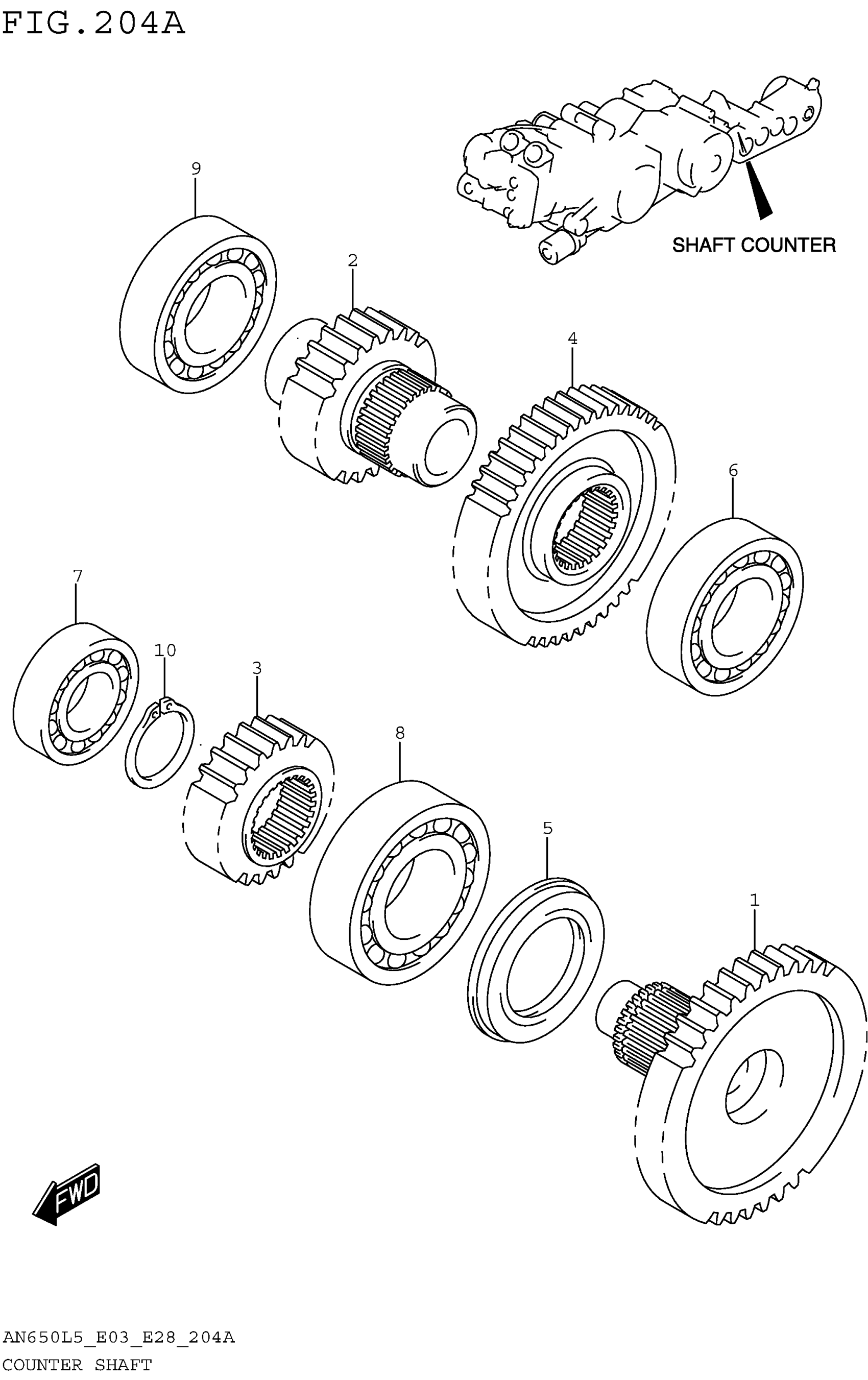

Suzuki AN650L5 (2015) COUNTER SHAFT Diagram

SHAFT, COUNTER (NT:39)

24121-10G30

$189.27

SHAFT, IDLE (NT:22)

24151-10G20

$119.18

GEAR, IDLER DRIVE (NT:25)

24331-10G00

$80.38

GEAR, IDLER DRIVEN (NT:43)

24381-10G00

$118.08

OIL SEAL (35X52X6) | LH

09283-35015

$19.38

BEARING (30X55X13) | LH

09262-30113

$49.77

BEARING (20X47X14) | RH

09262-20069

$23.28

BEARING (30X62X16) | LH

09262-30124

$33.95

BEARING (30X62X16) | RH

09262-30124

$33.95

CIRCLIP

08331-31289

$2.19
