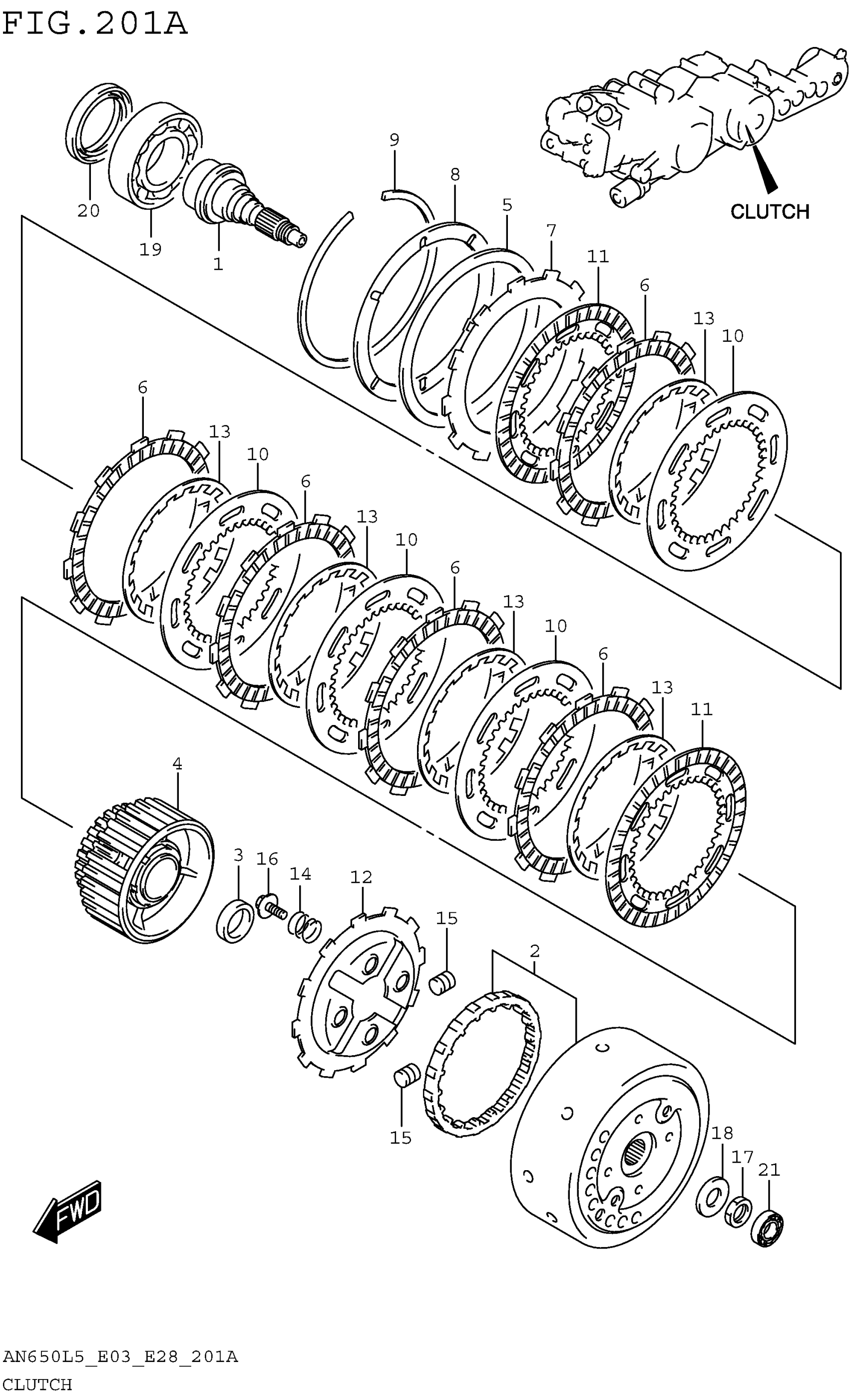

Suzuki AN650L5 (2015) CLUTCH Diagram

#

Description
Price

1

SHAFT, CLUTCH (NT:42)

21421-10G00

Unavailable

2

HOUSING SET, CLUTCH

21221-10830

$334.77

3

SPACER, CLUTCH HOUSING

21222-10G00

Unavailable

4

GEAR SET, HUB CLUTCH SLEEVE (NT:31)

21321-10821

$421.08

5

WASHER, CLUTCH SPRING WAVE

21412-10G00

$50.63

6

PLATE,CLUTCH DR This part replaces 21441-26J00.

21441-26J10

$22.68

7

PLATE, CLUTCH DRIVE OUTER (T:3.2)

21443-10G00

$28.75

8

SEAT, CLUTCH SPRING

21446-10G00

$20.42

9

CIRCLIP, CLUTCH OUTER

21447-10G00

$9.07

10

PLATE, CLUTCH DRIVEN NO.1 (T:2.0)

21451-10G10

$16.01

11

PLATE,CLUTCH DR This part replaces 21452-26J00.

21452-26J10

$29.35

12

PLATE, CLUTCH INNER (T:3.2)

21465-10G00

$37.98

13

WASHER, CLUTCH PLATE

21472-10G10

$19.58

14

SPRING, CLUTCH REACTION

21512-10G00

$6.44

15

ROLLER, CLUTCH

21650-10G00

$15.53

16

BOLT (5X16)

09116-05020

$2.03

17

NUT

09140-18016

$6.70

18

WASHER (18X30X2.5)

09160-18033

$3.50

19

BEARING (50X72X12) | RH

09262-50003

Unavailable

20

OIL SEAL (50X64X7)

09283-50009

$16.35

21

BEARING | LH This part replaces 08123-63010.

08123-6301B

$14.10
