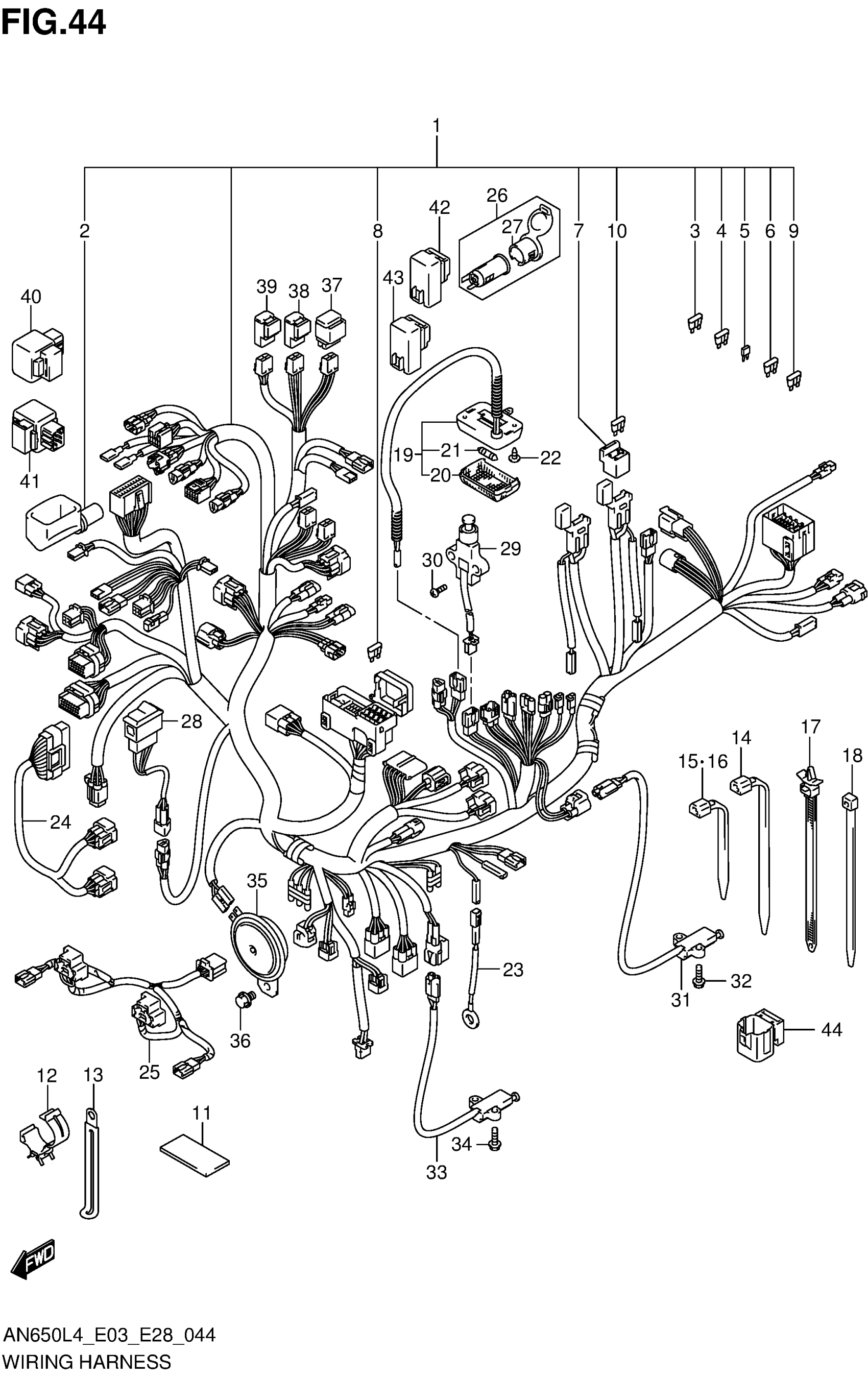

Suzuki AN650L4 (2014) WIRING HARNESS (AN650ZL4 E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-26J40

Unavailable

2

COVER

36618-41G00

Unavailable

3

FUSE (3A)

09481-03101

Unavailable

4

FUSE (5A)

09481-05101

$0.68

5

FUSE (10A)

09481-10501

$2.07

6

FUSE (15A)

09481-15101

$2.77

7

HOLDER

36742-45G00

$26.67

8

FUSE (15A)

09481-15101

$2.77

9

FUSE (20A)

09481-20101

$2.13

10

FUSE (40A)

09481-40101

$10.15

11

PROTECTOR

36920-08D00

Unavailable

12

CLAMP

09403-30403

Unavailable

13

CLAMP (L:45)

09404-06429

$1.82

14

CLAMP (L:125)

09407-14403

$2.24

15

CLAMP (L:190)

09407-19401

$3.32

16

CLAMP (L:165)

09407-18402

$2.21

17

CLAMP (L:90)

09407-11402

$1.81

18

CLAMP (L:145)

09407-14407

$2.80

19

LAMP ASSY, TRUNK BOX

36210-10G00

Unavailable

20

LENS

36212-79001

Unavailable

21

BULB (12V,5W)

09471-12073

$3.30

22

SCREW

03541-0412A

$1.37

23

WIRE, OIL PRESSURE SWITCH LEAD

36851-26J00

Unavailable

24

HARNESS, WIRING NO.2

36620-26J00

$226.85

25

WIRE,HEADLAMP L This part replaces 36856-26J00.

36856-26J01

$69.38

26

SOCKET ASSY (GRAY)

39410-49F00-P4Z

Unavailable

27

COVER (GRAY)

39441-49F00-P4Z

$10.25

28

SWITCH ASSY, SEAT HEATER

37320-19H00

$138.07

29

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

30

.SCREW

02112-0516A

$1.45

31

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$90.63

32

BOLT

01550-0620A

$1.97

33

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$93.18

34

BOLT

01550-0620A

$1.97

35

HORN ASSY

38500-26J00

$89.96

36

BOLT

01550-0812B

$2.73

37

RELAY ASSY, FAN MOTOR

38740-38B00

$71.43

38

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

39

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

40

RELAY ASSY, MIRROR MOTOR

38750-03G00

$161.95

41

RELAY ASSY, SCREEN

38750-10G00

Unavailable

42

RELAY ASSY, LOW BEAM

38740-04J00

$51.22

43

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

44

CAP, TS

36654-06J40

Unavailable
