Description

Price

1

SHIELD, LEG FRONT (GRAY)

48111-26J00-PGZ

$454.83

1

SHIELD, LEG FRONT (WHITE)

48111-26J00-RB5

$455.33

1

SHIELD, LEG FRONT (BLACK)

48111-26J00-YVB

$463.93

2

COVER, FR LEG SHIELD (GRAY)

48131-26J01-PGZ

Unavailable

2

COVER, FR LEG SHIELD (WHITE)

48131-26J01-RB5

$106.53

2

COVER, FR LEG SHIELD (BLACK)

48131-26J01-YVB

Unavailable

3

SCREW

09136-06002

$2.44

4

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

5

CLIP

09409-08326

$2.48

6

SHIELD, LEG LOWER This part replaces 48137-26J00-291.

48137-26J50

$70.47

7

CLIP, LEG LOWER

94479-35F00

$5.62

8

COVER, LOWER BRACKET

94458-10G00

$22.08

9

BOLT (6X12)

09111-06107

$2.60

10

CUSHION

09320-06026

$4.10

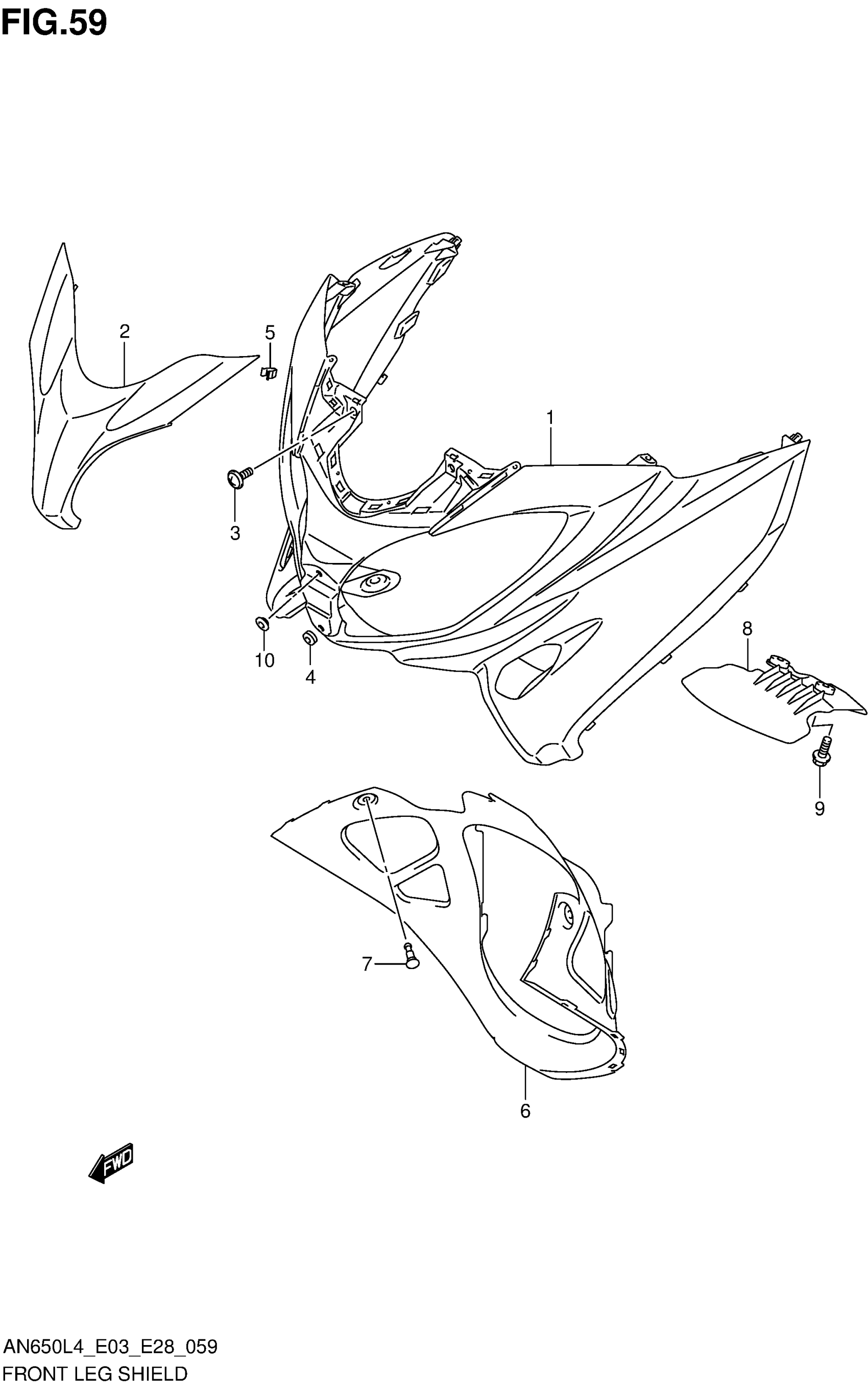

Suzuki AN650L4 (2014) FRONT LEG SHIELD Diagram
