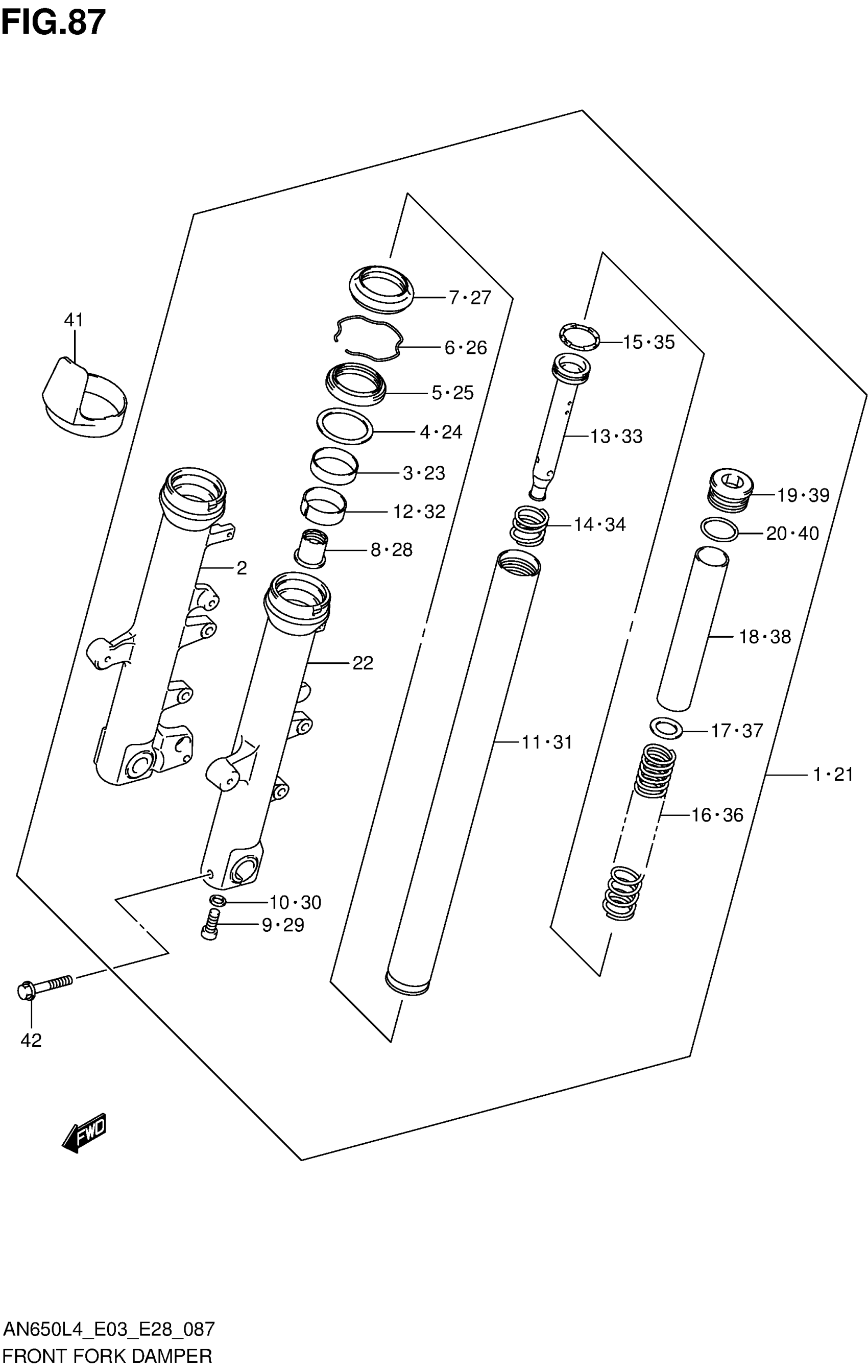

Suzuki AN650L4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FR This part replaces 51103-10G90.

51103-10G91

$711.25

2

TUBE, OUTER RH

51131-10G90

Unavailable

3

METAL, SLIDE

51167-26E10

$24.52

4

WASHER

51158-05A00

$5.83

5

OIL SEAL

51153-10G50

$20.70

6

RING, OIL SEAL STOPPER

51156-49440

$5.05

7

SEAL, DUST

51173-14F00

$23.07

8

PIECE, OIL LOCK

51195-33D10

$26.20

9

GASKET

51148-41310

$2.26

10

BOLT

51147-16510

$4.34

11

TUBE, INNER

51110-10G00

$392.77

12

PISTON

51121-33D10

$18.90

13

CYLINDER

51146-10G90

Unavailable

14

SPRING, REBOUND

51177-10G90

Unavailable

15

RING, PISTON

51196-31F00

$7.05

16

SPRING

51171-10G90

$66.60

17

WASHER

51356-10D03

$7.50

18

SPACER

51176-10G10

Unavailable

19

CAP

51351-10G10

Unavailable

20

O RING (D:3.5,ID:31.7)

09280-32001

$2.06

21

DAMPER ASSY, FRONT FORK LH

51104-10G90

$858.55

22

TUBE, OUTER LH

51141-10G90

Unavailable

23

METAL, SLIDE

51167-26E10

$24.52

24

WASHER

51158-05A00

$5.83

25

OIL SEAL

51153-10G50

$20.70

26

RING, OIL SEAL STOPPER

51156-49440

$5.05

27

SEAL, DUST

51173-14F00

$23.07

28

PIECE, OIL LOCK

51195-33D10

$26.20

29

BOLT

51147-16510

$4.34

30

GASKET

51148-41310

$2.26

31

TUBE, INNER

51110-10G00

$392.77

32

PISTON

51121-33D10

$18.90

33

CYLINDER

51146-10G90

Unavailable

34

SPRING, REBOUND

51177-10G90

Unavailable

35

RING, PISTON

51196-31F00

$7.05

36

SPRING

51171-10G90

$66.60

37

WASHER

51356-10D03

$7.50

38

SPACER

51176-10G10

Unavailable

39

CAP

51351-10G10

Unavailable

40

O RING (D:3.5,ID:31.7)

09280-32001

$2.06

41

PROTECTOR

51201-31F00

Unavailable

42

BOLT, LH

51166-10G10

$5.38
