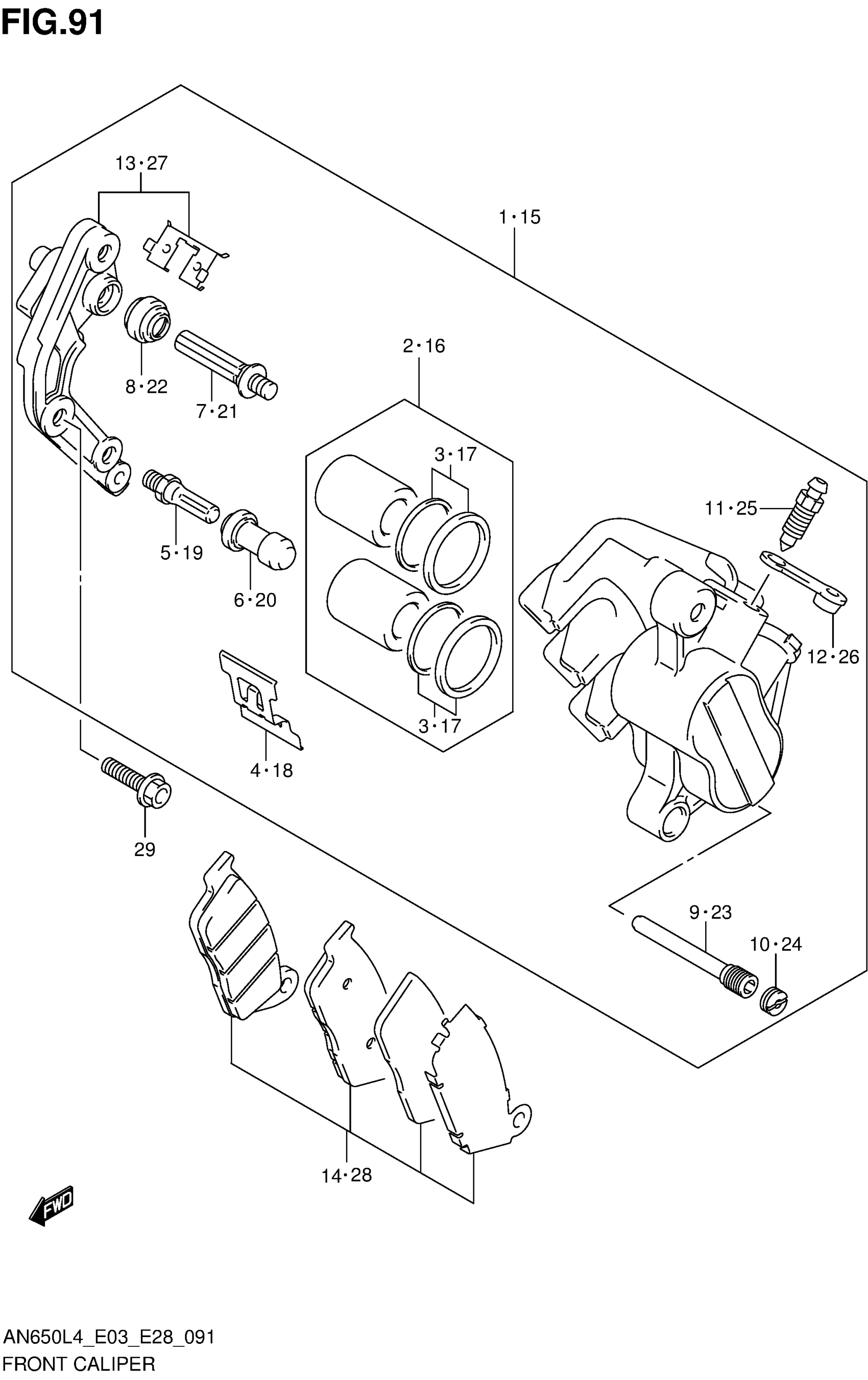

Suzuki AN650L4 (2014) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-26J00-999

$543.50

2

PISTON SET

59300-26860

$47.23

3

SEAL SET, PISTON

59300-13820

$18.77

4

SPRING, PAD

59115-21E10

$14.72

5

PIN

59382-14500

$8.95

6

BOOT

59386-13A00

$7.95

7

PIN

59187-21E10

$26.73

8

BOOT

59303-14500

$5.52

9

PIN, HANGER

59145-21E10

$21.57

10

PLUG, PIN

59146-21E10

$6.15

11

BLEEDER

59121-01A00

$8.73

12

CAP, BLEEDER

59122-01A00

$4.34

13

BRACKET RH

59151-26J00

Unavailable

14

PAD & SHIM SET RH

59101-26810

$112.07

15

CALIPER ASSY, FRONT LH

59300-26J00-999

$543.50

16

PISTON SET

59300-26860

$47.23

17

SEAL SET, PISTON

59300-13820

$18.77

18

SPRING, PAD

59115-21E10

$14.72

19

PIN

59382-14500

$8.95

20

BOOT

59386-13A00

$7.95

21

PIN

59187-21E10

$26.73

22

BOOT

59303-14500

$5.52

23

PIN, HANGER

59145-21E10

$21.57

24

PLUG, PIN

59146-21E10

$6.15

25

BLEEDER

59121-10G00

$14.47

26

CAP, BLEEDER

59122-01A00

$4.34

27

BRACKET LH

59351-26J00

Unavailable

28

PAD & SHIM SET LH

59101-26820

$112.07

29

BOLT (8X28)

09103-08359

$3.76
