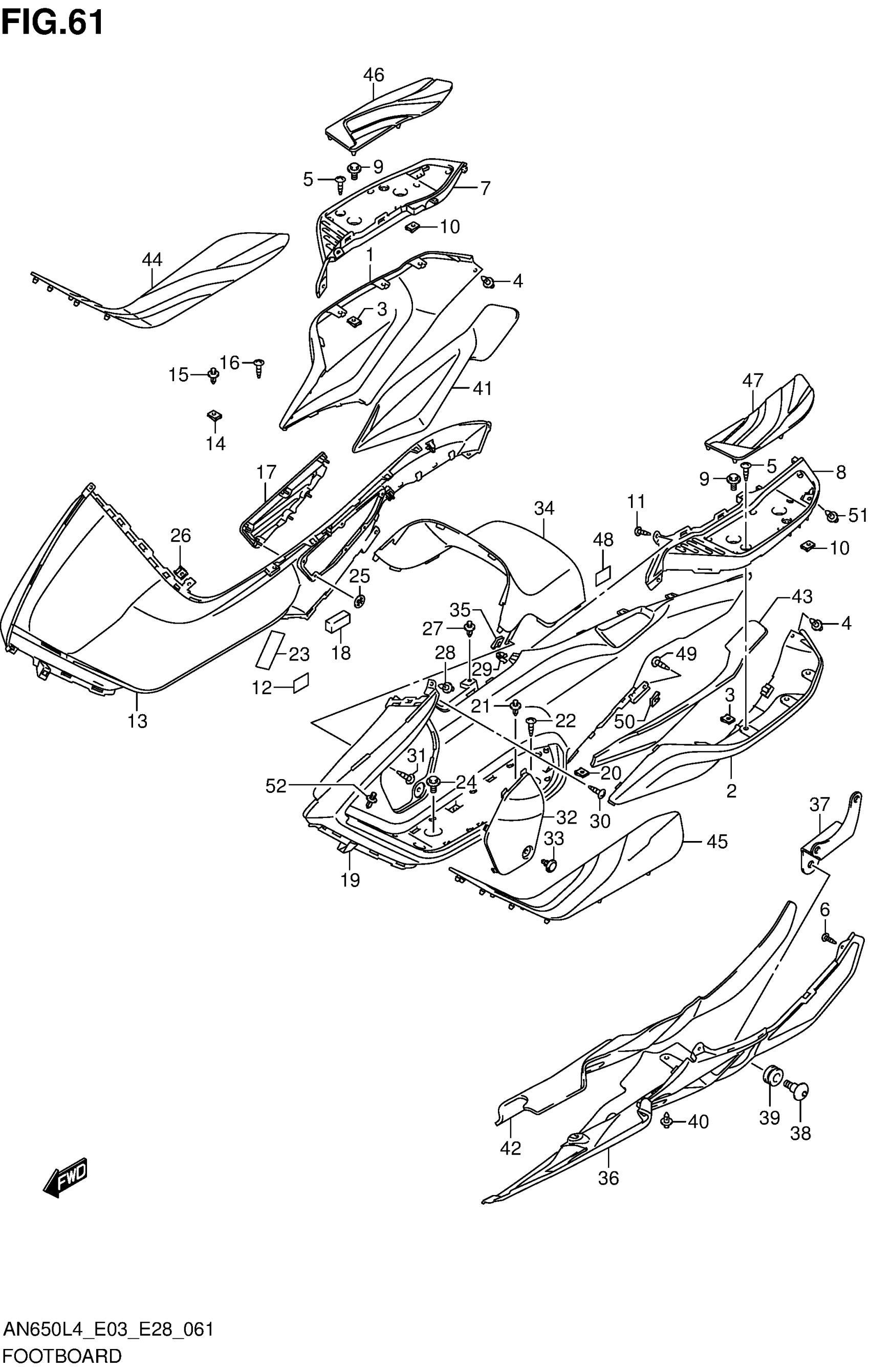

Suzuki AN650L4 (2014) FOOTBOARD Diagram

#

Description
Price

1

FOOTBOARD,REAR This part replaces 48127-26J00-YKV.

48127-26J20-YKV

$107.75

2

FOOTBOARD,REAR This part replaces 48128-26J01-YKV.

48128-26J20-YKV

$107.75

3

NUT

09148-05038

$1.97

4

CLIP (BLACK)

09409-06314-5PK

$2.78

5

SCREW

03541-0512A

$1.49

6

SCREW

03541-0516A

$1.49

7

FOOTBOARD, REAR UPPER RH This part replaces 48125-26J00-291.

48125-26J50

$28.98

8

FOOTBOARD, REAR UPPER LH This part replaces 48126-26J00-291.

48126-26J50

$29.53

9

BOLT (6X14.8)

09111-06109

$4.18

10

NUT

09148-05038

$1.97

11

SCREW

03541-0516A

$1.49

12

CUSHION, FOOTBOARD NO.2

33652-13G00

$3.58

13

FOOTBOARD, RH This part replaces 48120-26J01-291.

48120-26J50

$154.40

14

NUT

09148-05038

$1.97

15

CLIP (BLACK)

09409-06314-5PK

$2.78

16

SCREW

03541-0512A

$1.49

17

LOUVER, AIR RH This part replaces 48123-26J00-291.

48123-26J50

$9.88

18

CUSHION, FOOTBOARD NO.1

48127-10G00

$22.52

19

FOOTBOARD, LH This part replaces 48130-26J01-291.

48130-26J50

$162.30

20

NUT

09148-05038

$1.97

21

CLIP (BLACK)

09409-06314-5PK

$2.78

22

SCREW

03541-0512A

$1.49

23

SHIELD, FOOTBOARD RH

48327-26J00

$12.12

24

BOLT (6X14.8)

48196-26J00

Unavailable

25

NUT

09148-03010

$2.63

26

NUT

09148-05038

$1.97

27

CLIP (BLACK)

09409-06314-5PK

$2.78

28

CLIP

09409-06329

$2.79

29

CLIP

09409-08326

$2.48

30

SCREW

03541-0516A

$1.49

31

SCREW

03541-0516A

$1.49

32

LID,MAINTENANCE This part replaces 48191-26J00-291.

48191-26J51

$17.36

33

CLIP, MAINTENANCE LID

94479-35F00

$5.62

34

COVER, CENTER This part replaces 48124-26J00-291.

48124-26J50

$43.98

35

NUT

09148-05038

$1.97

36

COVER, UNDER CTR This part replaces 48138-26J00-291.

48138-26J50

$90.82

37

BRACKET, UNDER COVER

48330-10G00

Unavailable

38

BOLT (6X20)

09139-06190

$4.17

39

CUSHION

09320-09016

$1.97

40

CLIP

09409-07333

$2.31

41

CUSHION,RR FOOT This part replaces 48313-26J00.

48313-26J01

$13.07

42

CUSHION, UNDER COVER LOWER NO.1

48316-26J00

$19.83

43

CUSHION, REAR FOOTBOARD LOWER LH

48323-26J00

$8.02

44

MAT,FLOOR FR RH This part replaces 48211-26J00-291.

48211-26JA0-291

$30.43

45

MAT,FLOOR FR LH This part replaces 48221-26J00-291.

48221-26JA0-291

$35.50

46

MAT,FLOOR RR RH This part replaces 48231-26J00-291.

48231-26JA0-291

$10.83

47

MAT,FLOOR RR LH This part replaces 48241-26J00-291.

48241-26JA0-291

$10.58

48

CUSHION,FOOTBOARD NO.3

17798-29E30

$7.63

49

SCREW

03541-0516A

$1.49

50

NUT

09148-05038

$1.97

51

CLIP (BLACK)

09409-06314-5PK

$2.78

52

CLIP (BLACK)

09409-06314-5PK

$2.78
