Description

Price

1

HARNESS, WIRING

36610-26J40

Unavailable

2

COVER

36618-41G00

Unavailable

3

FUSE (3A)

09481-03101

Unavailable

4

FUSE (5A)

09481-05101

$1.94

5

FUSE (10A)

09481-10501

$2.06

6

FUSE (15A)

09481-15101

$2.53

7

HOLDER

36742-45G00

$23.63

8

FUSE (15A)

09481-15101

$2.53

9

FUSE (20A)

09481-20101

$2.12

10

FUSE (40A)

09481-40101

$9.35

11

PROTECTOR

36920-08D00

Unavailable

12

CLAMP

09403-30403

Unavailable

13

CLAMP (L:45)

09404-06429

$1.83

14

CLAMP (L:125)

09407-14403

$2.26

15

CLAMP (L:190)

09407-19401

$3.05

16

CLAMP (L:165)

09407-18402

$2.19

17

CLAMP (L:90)

09407-11402

$1.80

18

CLAMP (L:145)

09407-14407

$3.57

19

LAMP ASSY, TRUNK BOX

36210-10G00

Unavailable

20

LENS

36212-79001

Unavailable

21

BULB (12V,5W)

09471-12073

$3.03

22

SCREW

03541-0412A

$1.49

23

WIRE, OIL PRESSURE SWITCH LEAD

36851-26J00

Unavailable

24

HARNESS, WIRING NO.2

36620-26J00

$203.85

25

WIRE,HEADLAMP L This part replaces 36856-26J00.

36856-26J01

$61.77

26

SOCKET ASSY (GRAY)

39410-49F00-P4Z

Unavailable

27

COVER (GRAY)

39441-49F00-P4Z

$9.07

28

SWITCH ASSY, SEAT HEATER

37320-19H00

$124.07

29

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

30

.SCREW

02112-0516A

$1.49

31

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$80.70

32

BOLT

01550-0620A

$1.97

33

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$70.52

34

BOLT

01550-0620A

$1.97

35

HORN ASSY

38500-26J00

$79.70

36

BOLT

01550-0812B

$2.73

37

RELAY ASSY, FAN MOTOR

38740-38B00

$63.30

38

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

39

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

40

RELAY ASSY, DRIVE

38750-03G00

$145.53

41

RELAY ASSY, SCREEN

38750-10G00

Unavailable

42

RELAY ASSY, LOW BEAM

38740-04J00

$45.38

43

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

44

CAP, TS

36654-06J40

Unavailable

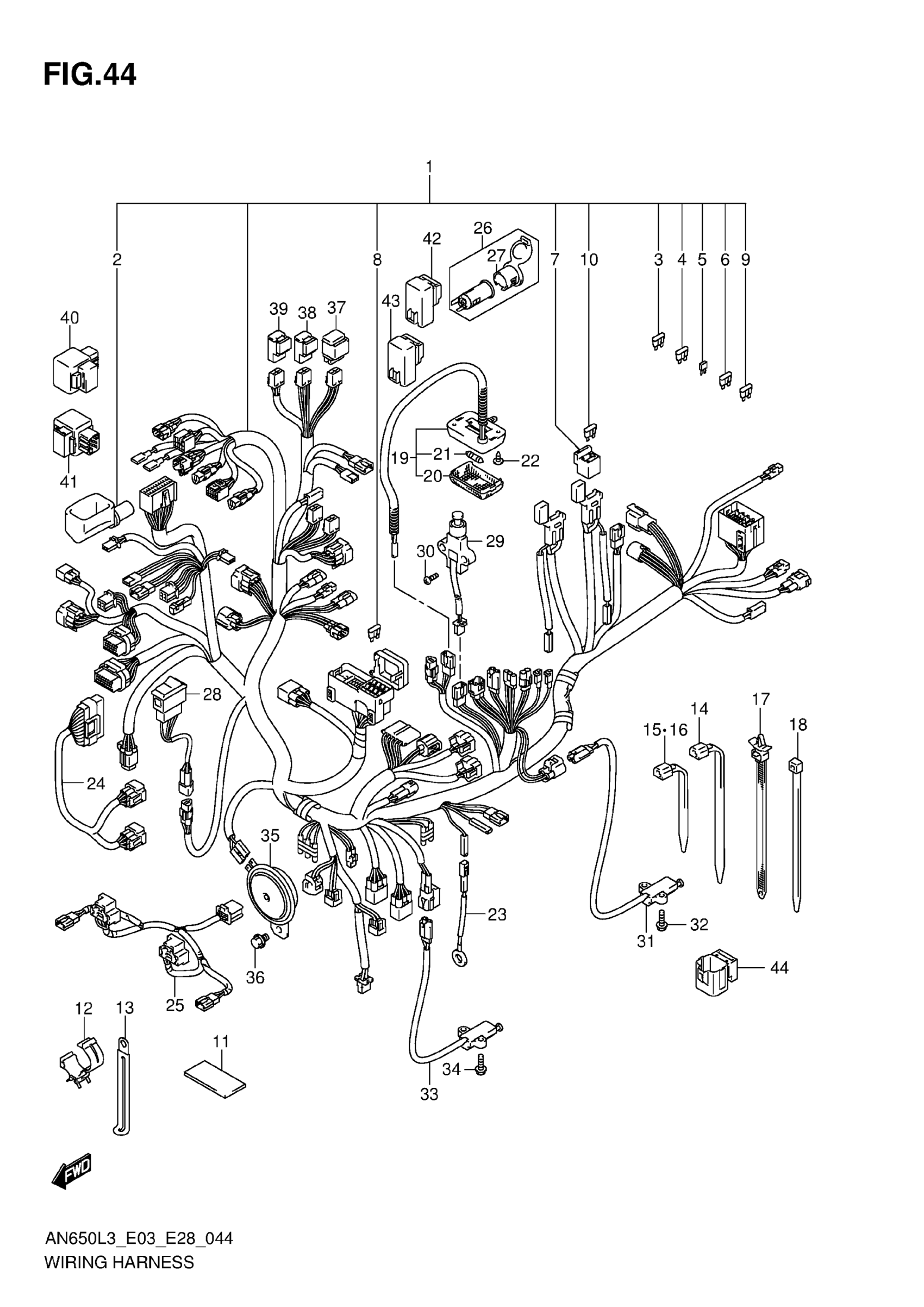

Suzuki AN650L3 (2013) WIRING HARNESS (AN650ZL3 E28) Diagram

HARNESS, WIRING

COVER

FUSE (3A)

FUSE (5A)

FUSE (10A)

FUSE (15A)

HOLDER

FUSE (15A)

FUSE (20A)

FUSE (40A)

PROTECTOR

CLAMP

CLAMP (L:45)

CLAMP (L:125)

CLAMP (L:190)

CLAMP (L:165)

CLAMP (L:90)

CLAMP (L:145)

LAMP ASSY, TRUNK BOX

LENS

BULB (12V,5W)

SCREW

WIRE, OIL PRESSURE SWITCH LEAD

HARNESS, WIRING NO.2

WIRE,HEADLAMP L This part replaces 36856-26J00.

SOCKET ASSY (GRAY)

COVER (GRAY)

SWITCH ASSY, SEAT HEATER

SWITCH ASSY, TRUNK BOX LAMP

.SCREW

SWITCH ASSY,SID This part replaces 37840-10G00.

BOLT

SWITCH ASSY,SID This part replaces 37840-20E00.

BOLT

HORN ASSY

BOLT

RELAY ASSY, FAN MOTOR

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

RELAY ASSY, DRIVE

RELAY ASSY, SCREEN

RELAY ASSY, LOW BEAM

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

CAP, TS
