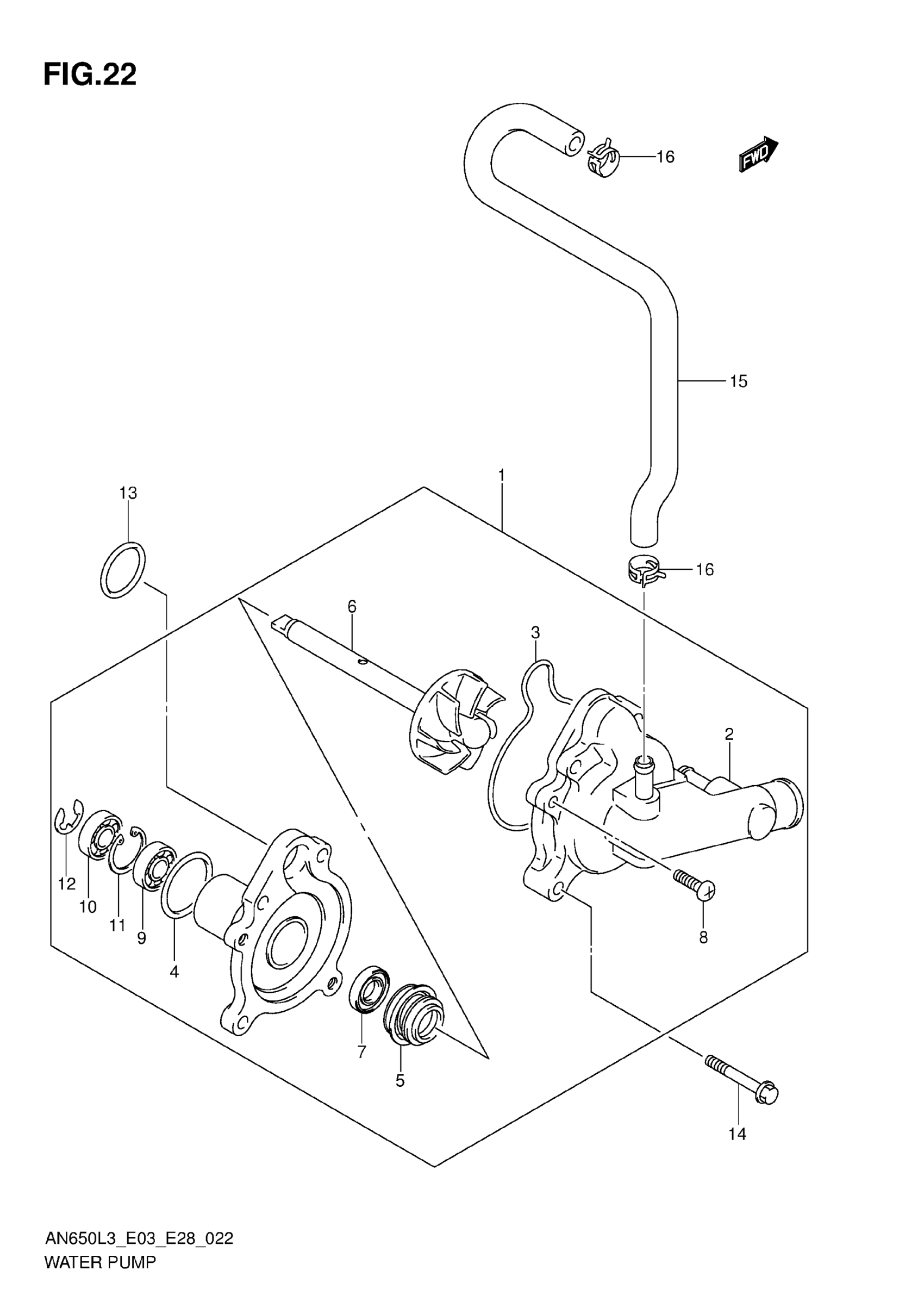

Suzuki AN650L3 (2013) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-10G10.

17400-10G11

$310.22

2

COVER

17411-10G10

$137.80

3

O RING

17418-10G10

$10.46

4

.O-RING

17435-33400

$15.29

5

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

6

IMPELLER

17491-10G10

$64.68

7

.SEAL OIL (10X21X5)

09283-10004

$4.96

8

.SCREW

02112-0616B

$2.12

9

BEARING

08110-68000

$23.70

10

BEARING

08110-69000

$19.23

11

CIRCLIP This part replaces 08331-41209.

08331-41206

Unavailable

12

.E-RING

08332-1108A

$1.78

13

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

14

BOLT

01547-0635A

$2.30

15

HOSE, WATER BYPASS

17856-10G00

$25.33

16

CLIP This part replaces 09401-12409.

09401-12414

$3.26
