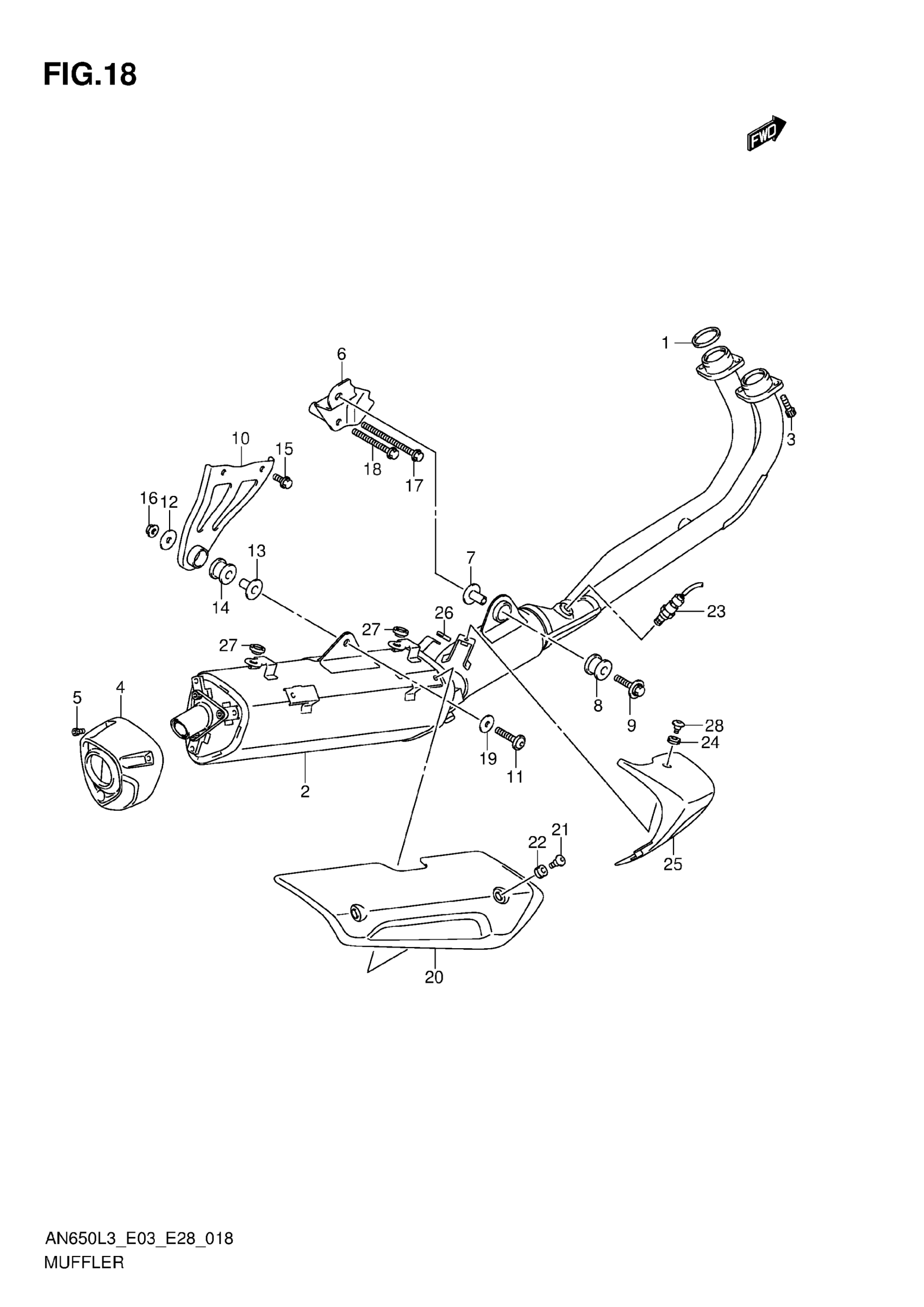

Suzuki AN650L3 (2013) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

2

MUFFLER This part replaces 14305-26J30.

14305-26J31-H01

$1,607.98

3

BOLT

07130-0825A

$3.04

4

COVER, MUFFLER REAR

14790-26J00

$63.50

5

BOLT (6X15)

09106-06078

$3.37

6

BRACKET, MUFFLER SPRT FRONT

14410-26J00

Unavailable

7

SPACER (8.6X12X27.1)

09180-08156

$6.70

8

CUSHION

09320-12085

Unavailable

9

BOLT (8X45)

09116-08134

$5.58

10

BRACKET, REAR

14470-10G20

Unavailable

11

BOLT

09106-08195

$6.17

12

WASHER (8.5X33X1.5)

09160-08146

$2.60

13

SPACER (8.6X12X27.1)

09180-08156

$6.70

14

CUSHION

09320-12085

Unavailable

15

BOLT

01550-0820A

$2.23

16

NUT

08361-2508A

$1.97

17

BOLT (10X115)

09103-10063

$8.73

18

BOLT

01550-0880A

$3.61

19

WASHER (8.5X28X1.6)

09160-08157

$2.95

20

COVER, MUFFLER

14781-26J00

$152.12

21

SCREW (6X20)

09139-06126

$4.04

22

CUSHION

09320-08070

$11.57

23

SENSOR, OXYGEN

18213-23H10

$380.50

24

CUSHION (8.4X18X6)

09320-08066

$8.24

25

COVER, MUFFLER FRONT

14770-26J00

$224.58

26

GROMMET

14795-10FA0

$5.58

27

CUSHION

09321-10018

$5.45

28

SCREW (6X12)

09139-06124

$4.52
