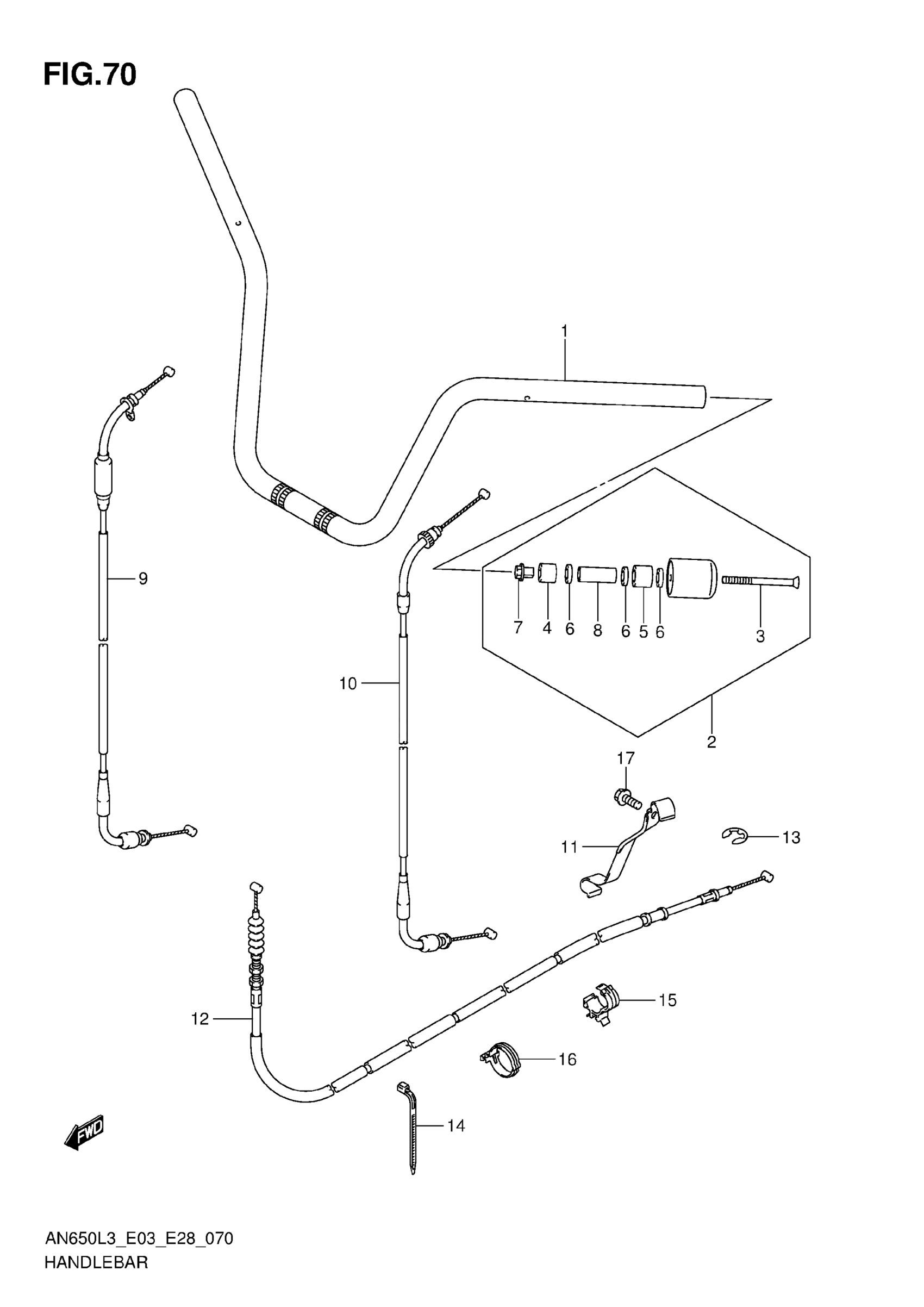

Suzuki AN650L3 (2013) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-10G60

$137.63

2

BALANCER SET,HN This part replaces 56200-11850.

56200-11852

$34.58

3

SCREW (6X127)

09127-06017

$2.78

4

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

5

.EXPANDER,HANDLE BALANCER

56272-42F00

$5.45

6

WASHER (6.5X16X4)

09160-06131

$2.50

7

NUT

56273-10G10

$8.65

8

SPACER (6.5X9X34)

09180-06356

$4.68

9

CABLE ASSY, THROTTLE NO.1

58300-26J00

Unavailable

10

CABLE ASSY, THROTTLE NO.2

58300-26J10

Unavailable

11

GUIDE, BRAKE LOCK CABLE

58621-10G00

Unavailable

12

CABLE BRAKE LOCK This part replaces 58810-26J00.

58810-26J10

$71.77

13

STOPPER,BRAKE LOCK CABLE

58822-10G00

Unavailable

14

CLAMP

09407-18402

$2.19

15

CLAMP

09403-15405

$2.72

16

CLAMP

09403-17402

Unavailable

17

BOLT

01547-0612A

$2.03
