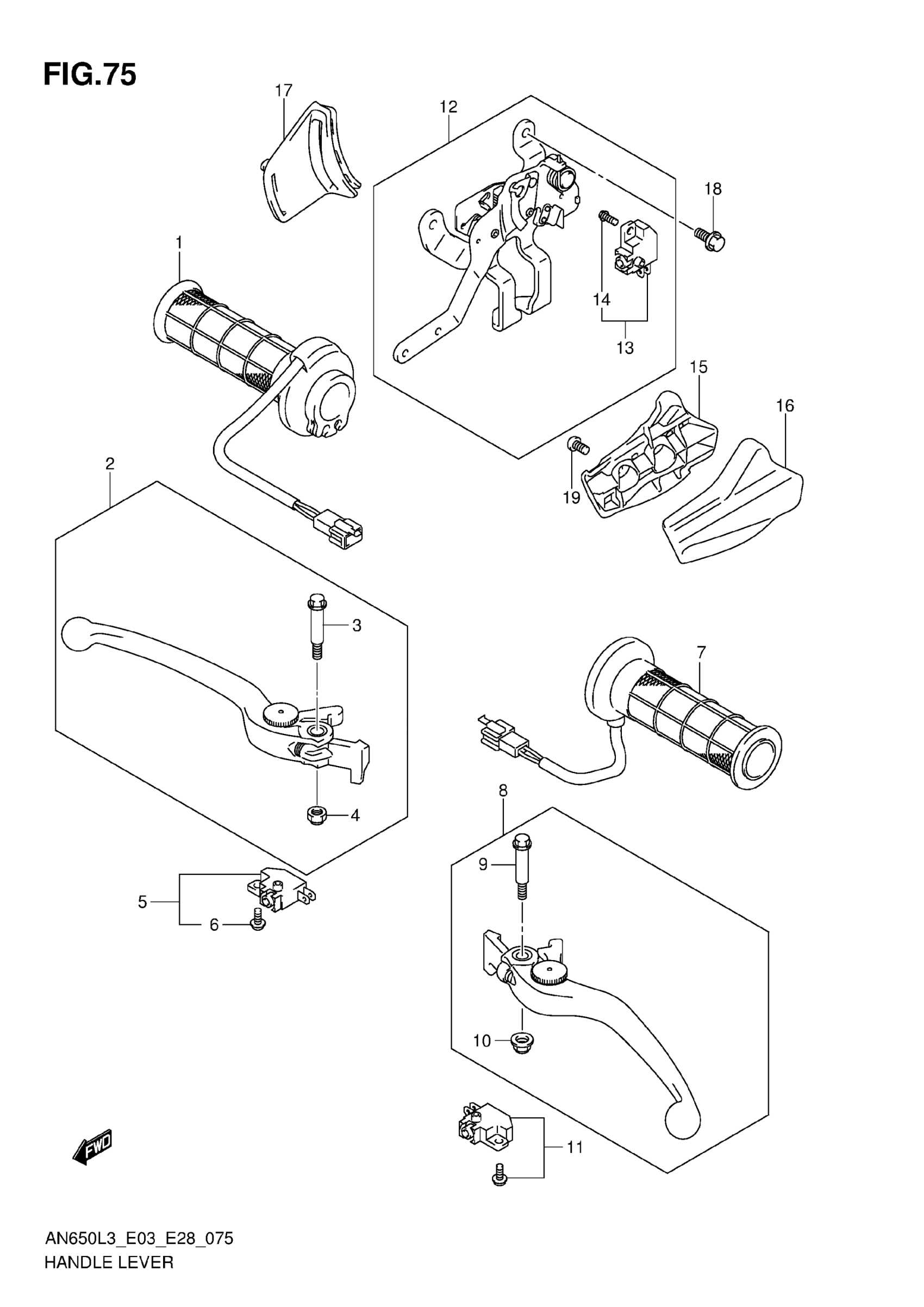

Suzuki AN650L3 (2013) HANDLE LEVER (AN650ZL3 E28) Diagram

#

Description
Price

1

HEATER ASSY, THROTTLE GRIP

57110-05H20

Unavailable

2

LEVER ASSY, FRONT BRAKE

57300-10G32

$44.13

3

BOLT, PIVOT

57431-17H02

$7.13

4

NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

HEATER ASSY, GRIP LH

57210-05H10

$207.37

8

LEVER ASSY, REAR BRAKE

57500-10G32

$78.30

9

BOLT, PIVOT

57431-17H02

$7.13

10

NUT

08319-2106A

$1.91

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J01.

57560-14J02

$38.66

12

LEVER ASSY, BRAKE LOCK

57800-26J00

Unavailable

13

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

14

SCREW

57465-17C00

$2.19

15

KNOB, BRAKE LOCK

57821-26J00

Unavailable

16

GARNISH, BRAKE LOCK KNOB (GRAY)

57822-26J00-PGZ

$31.40

16

GARNISH, BRAKE LOCK KNOB (WHITE)

57822-26J00-RB5

$30.87

16

GARNISH, BRAKE LOCK KNOB (BLACK)

57822-26J00-YVB

$30.87

17

GROMMET, LEVER SEAL

57951-26J00

Unavailable

18

BOLT

01550-0612B

$2.39

19

SCREW

02112-0508A

$1.49
