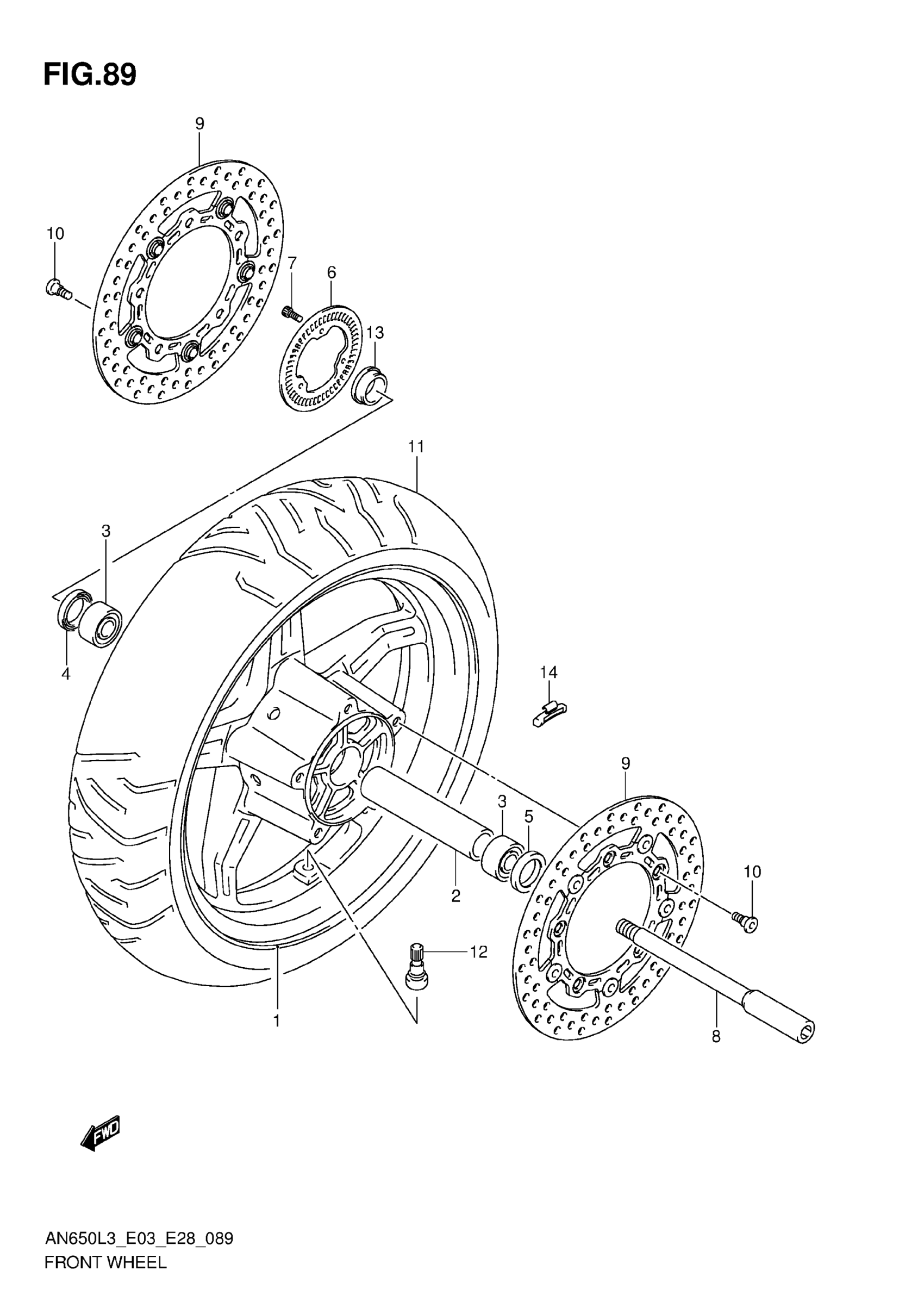

Suzuki AN650L3 (2013) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (15M/CXMT3.50) (BLACK)

54111-10G20-019

$834.75

2

SPACER, HUB BEARING

54731-10G00

$23.47

3

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

4

OIL SEAL (24X40X7)

09282-24004

$6.57

5

OIL SEAL (22X40X7)

09285-22004

$6.02

6

RING, SPEED SENSOR FR

54162-27G00

$140.15

7

BOLT

07130-0512A

$2.19

8

AXLE, FRONT

54711-10G10

$128.72

9

DISC, FRONT BRAKE

59210-26J00

$209.85

10

BOLT (8X21)

09106-08160

$3.57

11

TIRE,FRONT,120/ This part replaces 55110-10G00.

55110-10G01

$295.70

12

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

13

SPACER, FR AXLE RH

54751-10G01

$17.90

14

BALANCER, WHEEL NO.1 | 10G

43222-73H20

Unavailable

14

BALANCER, WHEEL NO.2 | 20G

43224-73H20

Unavailable

14

BALANCER, WHEEL NO.3 | 30G

43226-73H20

Unavailable
