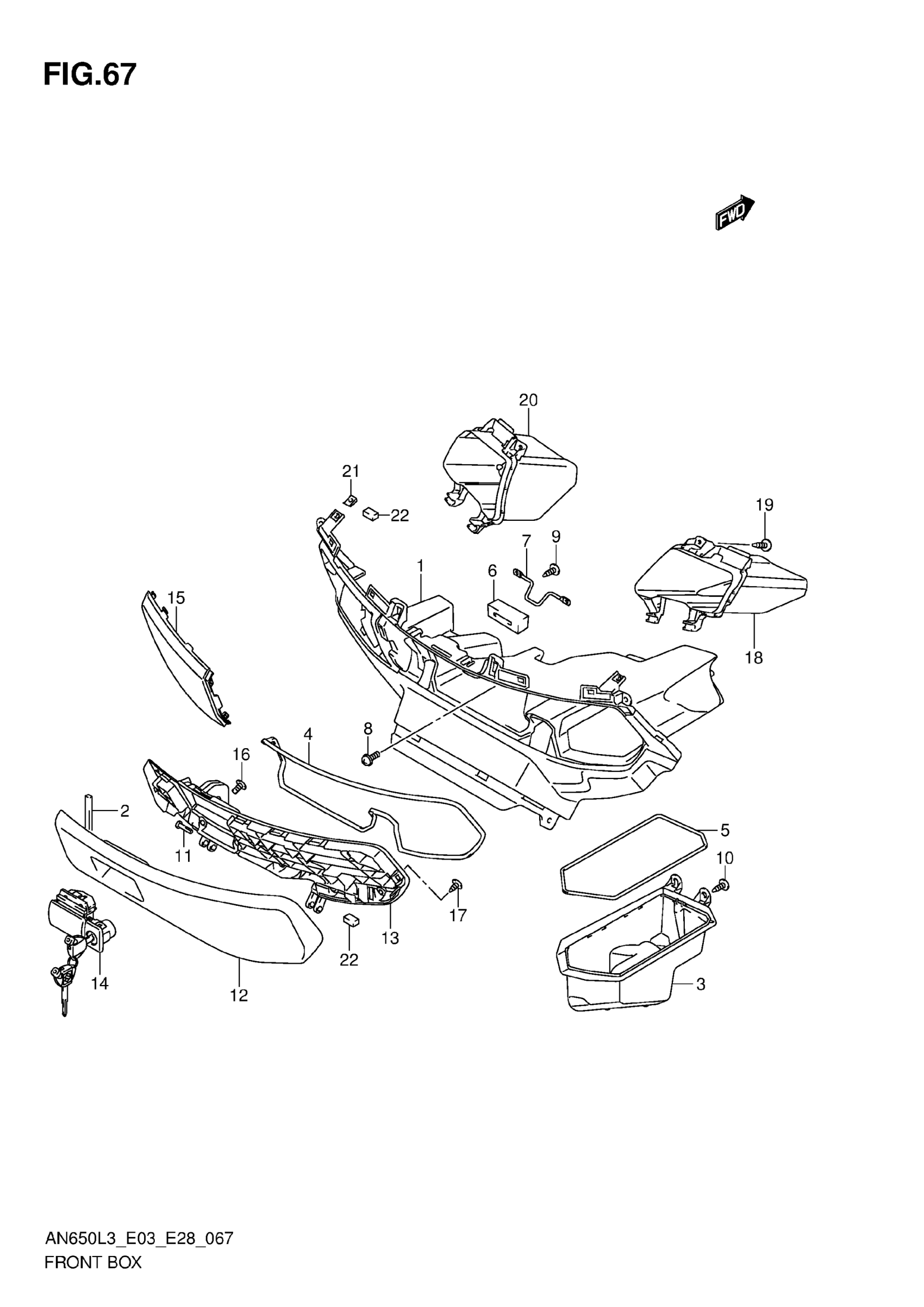

Suzuki AN650L3 (2013) FRONT BOX Diagram

#

Description
Price

1

BOX,FRONT This part replaces 92111-26J00-291.

92111-26J51

$92.83

2

CUSHION, FRONT BOX OUTER LID

92123-26J00

Unavailable

3

COVER, FRONT BOX INNER

92112-26J00

Unavailable

4

CUSHION, FRONT BOX NO.1

92114-26J00

$9.58

5

CUSHION, FRONT BOX INNER

92113-26J00

$4.12

6

CUSHION, FRONT BOX NO.3

92116-10G00

$8.05

7

STRIKER, FRONT BOX

92171-26J00

$5.79

8

SCREW (6X16)

09136-06157

$2.83

9

SCREW

03541-0516A

$1.49

10

SCREW

03541-0516A

$1.49

11

PIN, GLOVE BOX HINGE

73423-50G00

$5.10

12

LID, FRONT BOX OUTER (GRAY)

92121-26J00-PGZ

Unavailable

12

LID, FRONT BOX OUTER (WHITE)

92121-26J00-RB5

$112.85

12

LID, FRONT BOX OUTER (BLACK)

92121-26J00-YVB

$112.85

13

LID, FRONT BOX INNER This part replaces 92122-26J00-291.

92122-26J50

$25.60

14

LOCK SET, LID

92100-10841

$166.35

15

LID, CLNR MAINT (GRAY)

92161-26J00-PGZ

Unavailable

15

LID, CLNR MAINT (WHITE) This part replaces 92161-26J00-RB5.

92161-26J01-RB5

$69.73

15

LID, CLNR MAINT (BLACK) This part replaces 92161-26J00-YVB.

92161-26J01-YVB

$59.80

16

SCREW

02142-0512B

$2.05

17

SCREW

03541-0412B

$1.49

18

BOX, FRONT PANEL RH

92141-26J00

$22.28

19

SCREW

03541-0516A

$1.49

20

BOX, FRONT PANEL LH

92151-26J00

Unavailable

21

NUT

09148-05038

$1.97

22

CUSHION

17798-39G00

$6.49
