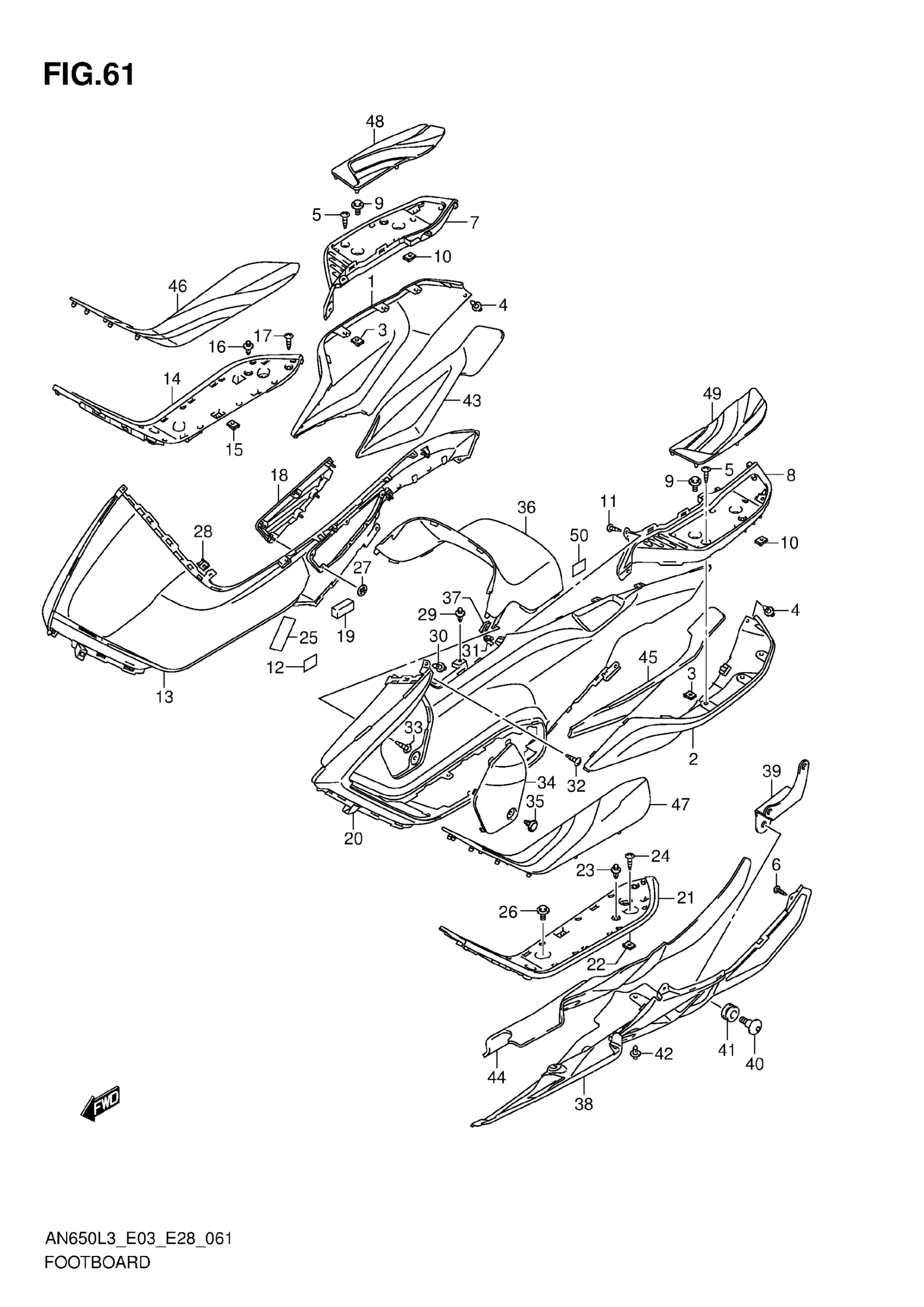

Suzuki AN650L3 (2013) FOOTBOARD Diagram

#

Description
Price

1

FOOTBOARD,REAR This part replaces 48127-26J00-YKV.

48127-26J20-YKV

$107.75

2

FOOTBOARD,REAR This part replaces 48128-26J00-YKV.

48128-26J20-YKV

$107.75

3

NUT

09148-05038

$1.97

4

CLIP (BLACK)

09409-06314-5PK

$2.78

5

SCREW

03541-0512A

$1.49

6

SCREW

03541-0516A

$1.49

7

FOOTBOARD, REAR UPPER RH This part replaces 48125-26J00-291.

48125-26J50

$28.98

8

FOOTBOARD, REAR UPPER LH This part replaces 48126-26J00-291.

48126-26J50

$29.53

9

BOLT (6X14.8)

09111-06109

$4.18

10

NUT

09148-05038

$1.97

11

SCREW

03541-0516A

$1.49

12

CUSHION, FOOTBOARD NO.2

33652-13G00

$3.58

13

FOOTBOARD, RH This part replaces 48121-26J00-291.

48120-26J50

$154.40

14

FOOTBOARD, RH This part replaces 48133-26J00-291.

48120-26J50

$154.40

15

NUT

09148-05038

$1.97

16

CLIP (BLACK)

09409-06314-5PK

$2.78

17

SCREW

03541-0516A

$1.49

18

LOUVER, AIR RH This part replaces 48123-26J00-291.

48123-26J50

$9.88

19

CUSHION, FOOTBOARD NO.1

48127-10G00

$22.52

20

FOOTBOARD, LH This part replaces 48122-26J00-291.

48130-26J50

$162.30

21

FOOTBOARD, LH This part replaces 48134-26J00-291.

48130-26J50

$162.30

22

NUT

09148-05038

$1.97

23

CLIP (BLACK)

09409-06314-5PK

$2.78

24

SCREW

03541-0516A

$1.49

25

SHIELD,FOOTBOARD,R

48327-26J00

$12.12

26

BOLT (6X14.8)

48196-26J00

Unavailable

27

NUT

09148-03010

$2.63

28

NUT

09148-05038

$1.97

29

CLIP (BLACK)

09409-06314-5PK

$2.78

30

CLIP

09409-06329

$2.79

31

CLIP

09409-08326

$2.48

32

SCREW

03541-0516A

$1.49

33

SCREW

03541-0516A

$1.49

34

LID,MAINTENANCE This part replaces 48191-26J00-291.

48191-26J51

$17.36

35

CLIP MAINTENANCE LID

94479-35F00

$5.62

36

COVER, CENTER This part replaces 48124-26J00-291.

48124-26J50

$43.98

37

NUT

09148-05038

$1.97

38

COVER, UNDER CTR This part replaces 48138-26J00-291.

48138-26J50

$90.82

39

BRACKET, UNDER COVER

48330-10G00

Unavailable

40

BOLT (6X20)

09139-06190

$4.17

41

CUSHION

09320-09016

$1.97

42

CLIP

09409-07333

$2.31

43

CUSHION,RR FOOT This part replaces 48313-26J00.

48313-26J01

$13.07

44

CUSHION, UNDER COVER LOWER NO.1

48316-26J00

$19.83

45

CUSHION, REAR FOOTBOARD LOWER LH

48323-26J00

$8.02

46

MAT,FLOOR FR RH This part replaces 48211-26J00-291.

48211-26JA0-291

$30.43

47

MAT,FLOOR FR LH This part replaces 48221-26J00-291.

48221-26JA0-291

$35.50

48

MAT,FLOOR RR RH This part replaces 48231-26J00-291.

48231-26JA0-291

$10.83

49

MAT,FLOOR RR LH This part replaces 48241-26J00-291.

48241-26JA0-291

$10.58

50

CUSHION,FOOTBOARD NO.3

17798-29E30

$7.63
