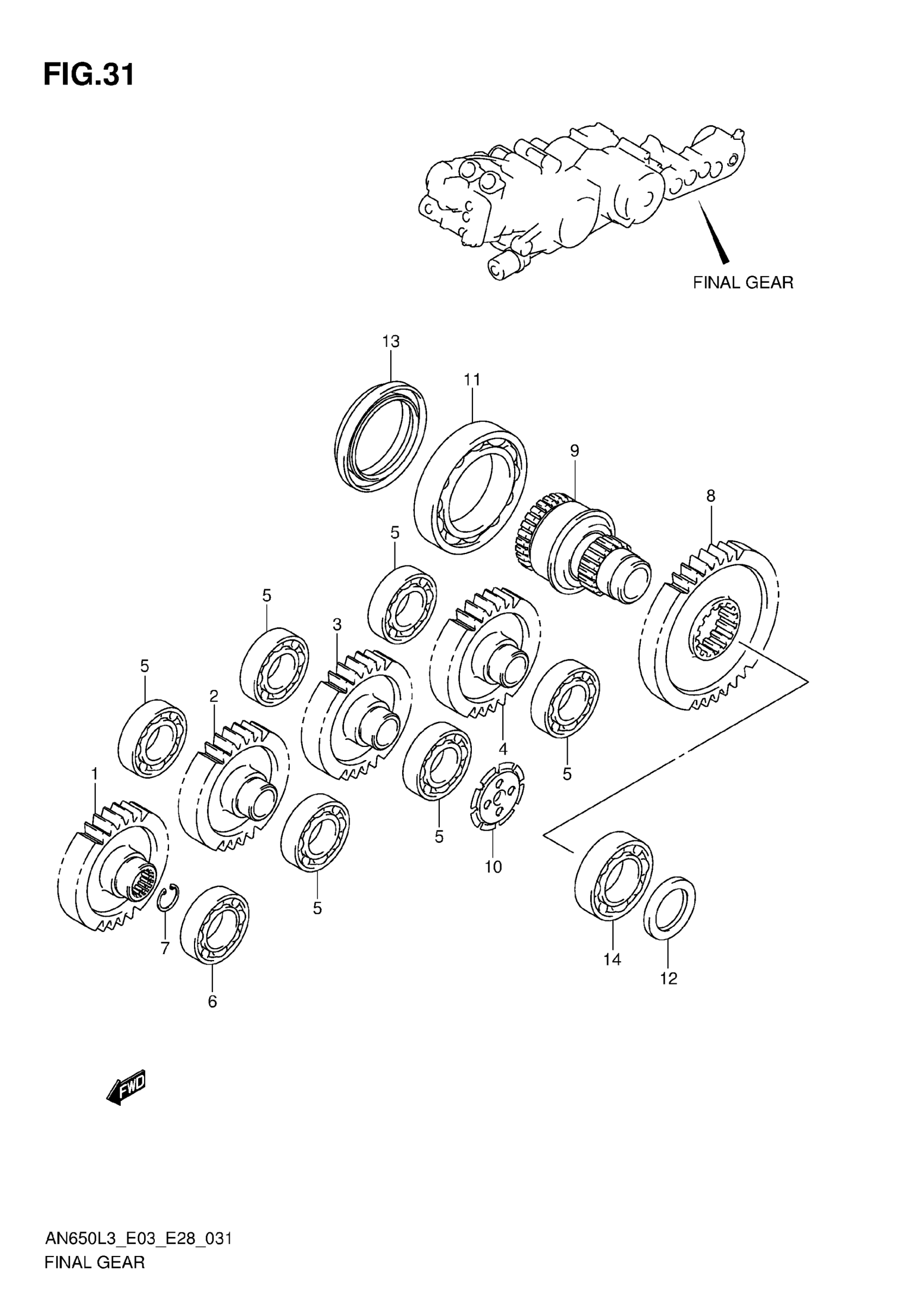

Suzuki AN650L3 (2013) FINAL GEAR Diagram

#

Description
Price

1

GEAR, FINAL DRIVE (NT:31)

27311-10G20

Unavailable

2

GEAR, IDLE NO.1 This part replaces 27351-10G20.

27351-10G00

Unavailable

3

GEAR, IDLE NO.2 This part replaces 27352-10G20.

27352-10G00

Unavailable

4

GEAR, IDLE NO.3 This part replaces 27353-10G20.

27353-10G00

$132.83

5

BEARING (30X62X16)

09262-30124

$33.95

6

BEARING (35X62X14) | LH

09262-35070

$54.70

7

CIRCLIP

08331-41229

$2.97

8

GEAR, FINAL DRIVEN (NT:49)

27321-10G20

Unavailable

9

HUB, FINAL DRIVEN GEAR

27322-10G00

Unavailable

10

PLATE, IDLE GEAR NO.2 LH

27328-10G00

Unavailable

11

BEARING (70X110X13) | RH

09262-70001

$140.93

12

OIL SEAL (38X54X6) | LH

09283-38009

$17.33

13

OIL SEAL (70X96X16) | RH

09289-70001

$51.76

14

BEARING

08113-60087

$43.55
