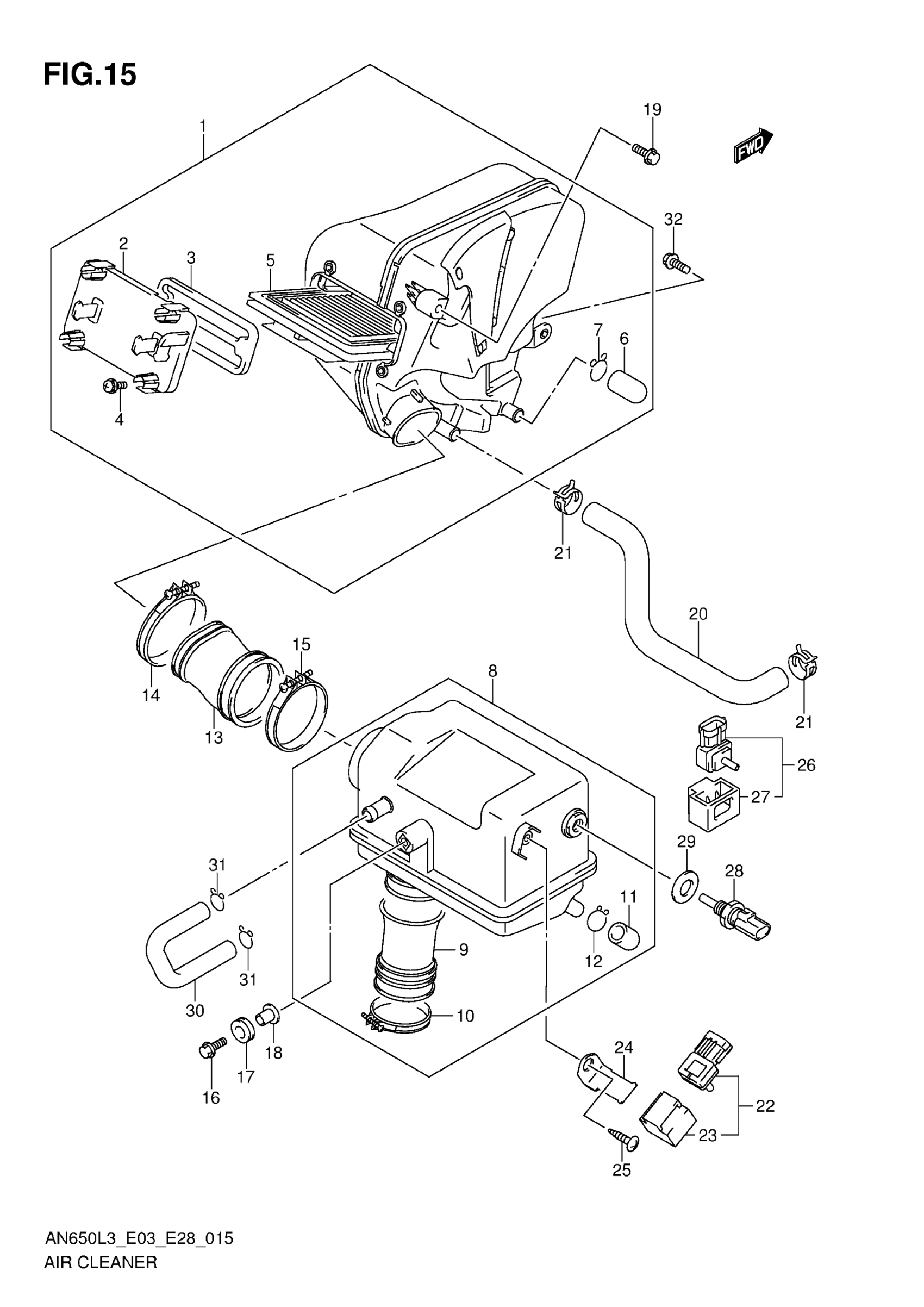

Suzuki AN650L3 (2013) AIR CLEANER (AN650L3 E03) Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13701-10G01

Unavailable

2

CAP, AIR CLEANER

13741-10G00

$17.70

3

GASKET, CAP

13747-10G00

$5.88

4

SCREW

02142-0512A

$1.49

5

FILTER

13780-10G00

$42.35

6

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

7

CLIP

09401-14101

$2.34

8

CHAMBER ASSY, AIR

13710-10G00

Unavailable

9

TUBE, OUTLET

13881-10G00

Unavailable

10

CLAMP

13826-39H00

Unavailable

11

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

12

CLIP

09401-14101

$2.34

13

TUBE,JOINT This part replaces 13739-10G00.

13739-10G01

$21.22

14

CLAMP (CLEANER SIDE)

13826-10G00

Unavailable

15

CLAMP (CHAMBER SIDE)

13826-10G10

Unavailable

16

BOLT (6X25)

09116-06150

$2.59

17

CUSHION

09320-10501

$6.23

18

SPACER (6.5X10X11.6)

09180-06319

$3.85

19

BOLT

01550-0612B

$2.39

20

TUBE, BREATHER

13851-26J00

Unavailable

21

CLIP

09401-16401

$3.14

22

SENSOR,BOOST

15630-29G40

$307.68

23

COVER

15625-29G40

Unavailable

24

BRACKET

15629-10G00

Unavailable

25

SCREW

03541-0512B

$1.78

26

SENSOR,BOOST

15630-29G40

$307.68

27

COVER

15625-29G40

Unavailable

28

SENSOR, AIR TEMP

13650-49X00

$90.19

29

GASKET (12X17X1)

09168-12017

$1.95

30

HOSE, STARTER AIR

13697-10G00

Unavailable

31

CLIP

09401-15101

$2.26

32

BOLT (6X16)

09116-06130

$2.28
