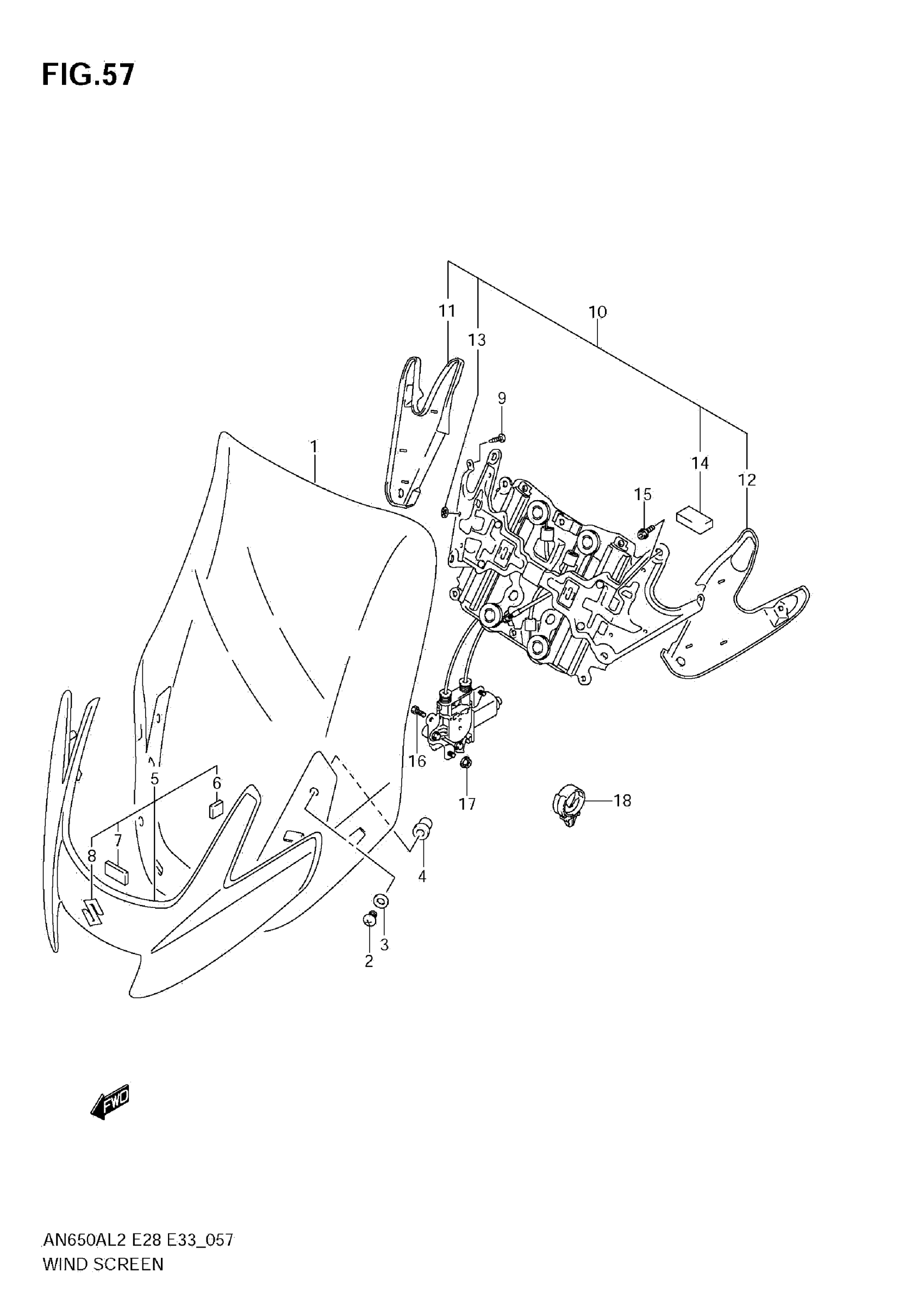

Suzuki AN650AL2 (2012) WINDSCREEN Diagram

#

Description
Price

1

WINDSCREEN

94611-10GA2

$818.28

2

SCREW

02142-0516B

$1.93

3

WASHER (5.2X14X1.5)

09161-05017

$3.18

4

NUT

09159-05048

$7.22

5

COVER, WINDSCREEN

94640-10G10

$164.72

6

CUSHION, COVER

94642-10GA0

$4.03

7

CUSHION, COVER NO.2

94643-10G01

$4.88

8

EMBLEM, "S"

68641-14G00

$40.35

9

SCREW (5X16)

09132-05053

$2.28

10

REGULATOR ASSY, This part replaces 94600-10GA1.

94600-10GA2

$907.53

11

COVER, RH

94651-10GA1

Unavailable

12

COVER, LH

94661-10GA1

Unavailable

13

NUT

09148-03011

$1.96

14

CUSHION

94652-10GA0

Unavailable

15

BOLT

07120-0612B

$3.04

16

BOLT (6X8)

09100-06157

$2.72

17

NUT

08316-1006B

$2.50

18

CLAMP

09403-14307

Unavailable
