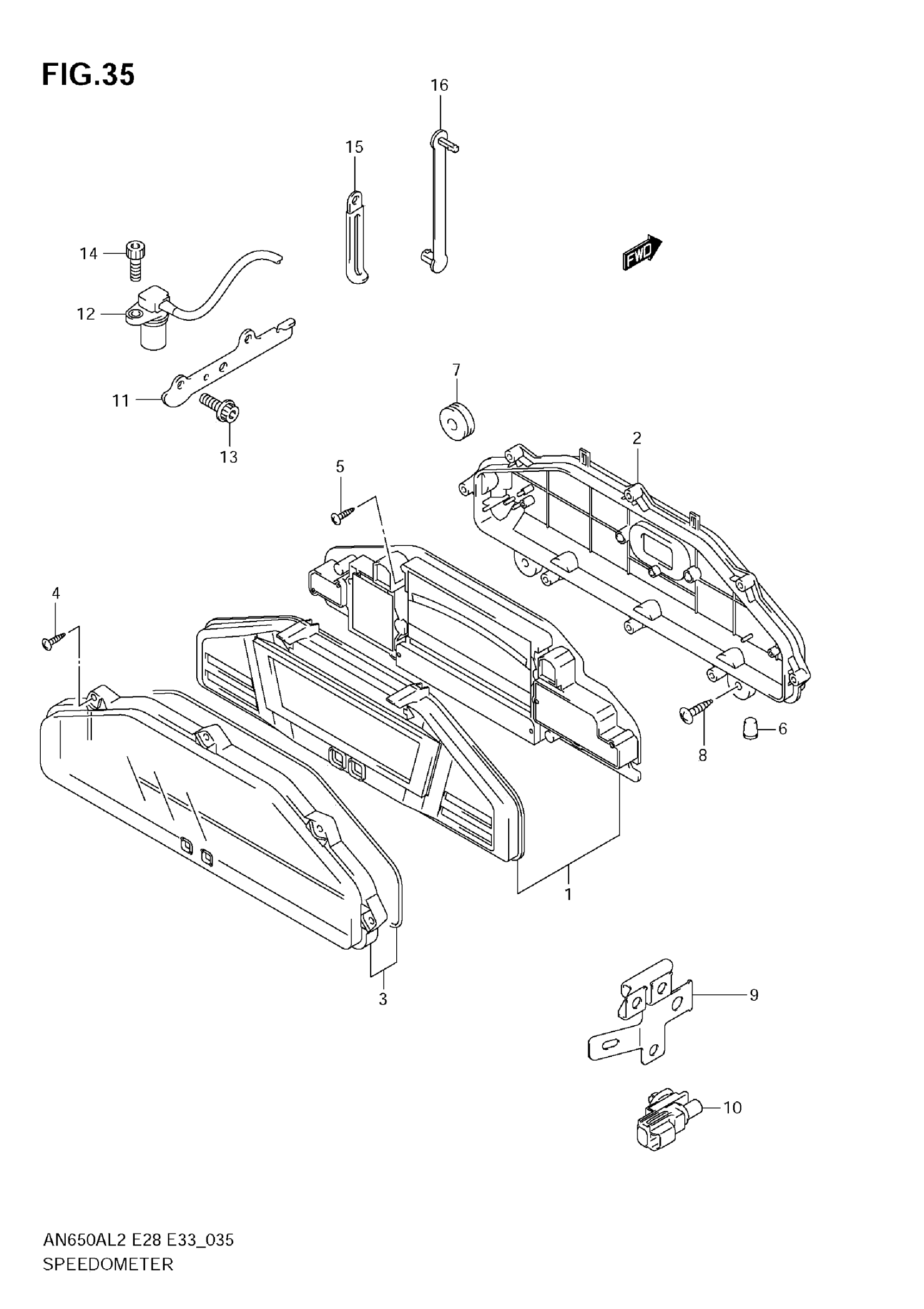

Suzuki AN650AL2 (2012) SPEEDOMETER (AN650A L2 E28) Diagram

#

Description
Price

1

SPEEDOMETER

34120-19HQ0

Unavailable

2

LOWER CASE

34111-19HL0

Unavailable

3

GLASS ASSY

34150-19HP0

Unavailable

4

SCREW (3X16)

34383-35F00

$3.23

5

SCREW (4X12)

34149-31F10

$4.10

6

CUSHION,SPEEDOM This part replaces 34955-10G00.

34955-10G01

$3.03

7

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

8

SCREW

03541-0520B

$2.63

9

BRACKET, SENSOR AMBIENT AIR

34898-13J00

Unavailable

10

SENSOR, AMBIENT AIR TEMP

95643-58J00

$50.50

11

GUIDE, SENSOR LEAD

34938-10G00

Unavailable

12

SENSOR,SPEED This part replaces 34990-10G30.

34990-10G31

$135.48

13

BOLT

07120-0612B

$3.04

14

BOLT

07130-0616B

$2.39

15

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

16

CLAMP (L:63)

36651-48E00

$3.25
