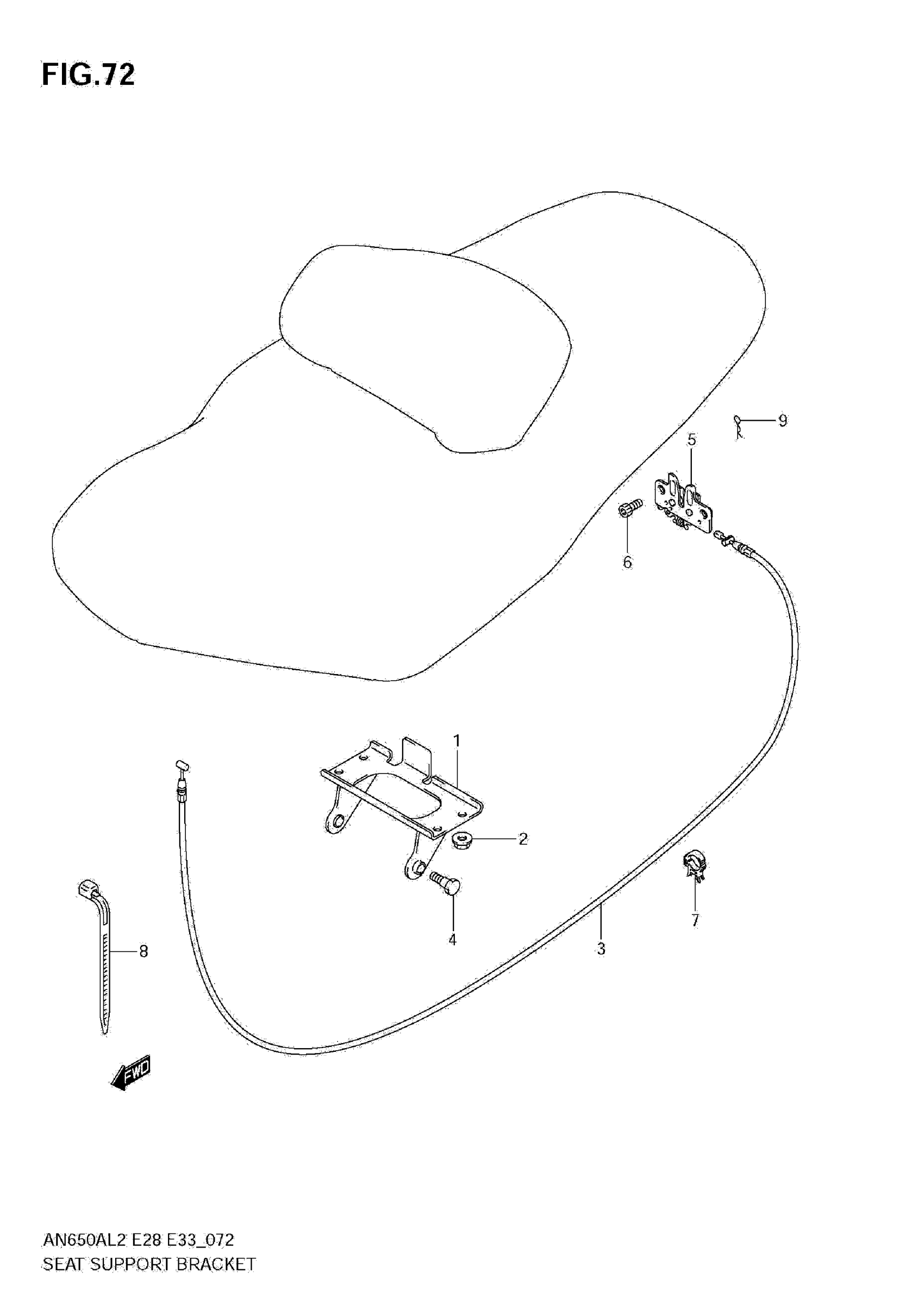

Suzuki AN650AL2 (2012) SEAT SUPPORT BRACKET Diagram

#

Description
Price

1

BRACKET, SEAT HINGE

45240-10G00

Unavailable

2

NUT

08316-1006B

$2.50

3

CABLE, SEAT LOCK

45280-10G30

$50.30

4

BOLT (6X18.5)

09111-06068

$6.13

5

LOCK ASSY, SEAT NO.1

45700-14FB2

$75.90

6

.BOLT

07130-0612B

$3.05

7

CLAMP

09403-08407

Unavailable

8

CLAMP (L:165)

09407-18402

$2.19

9

CLIP

09385-05004

$1.55
