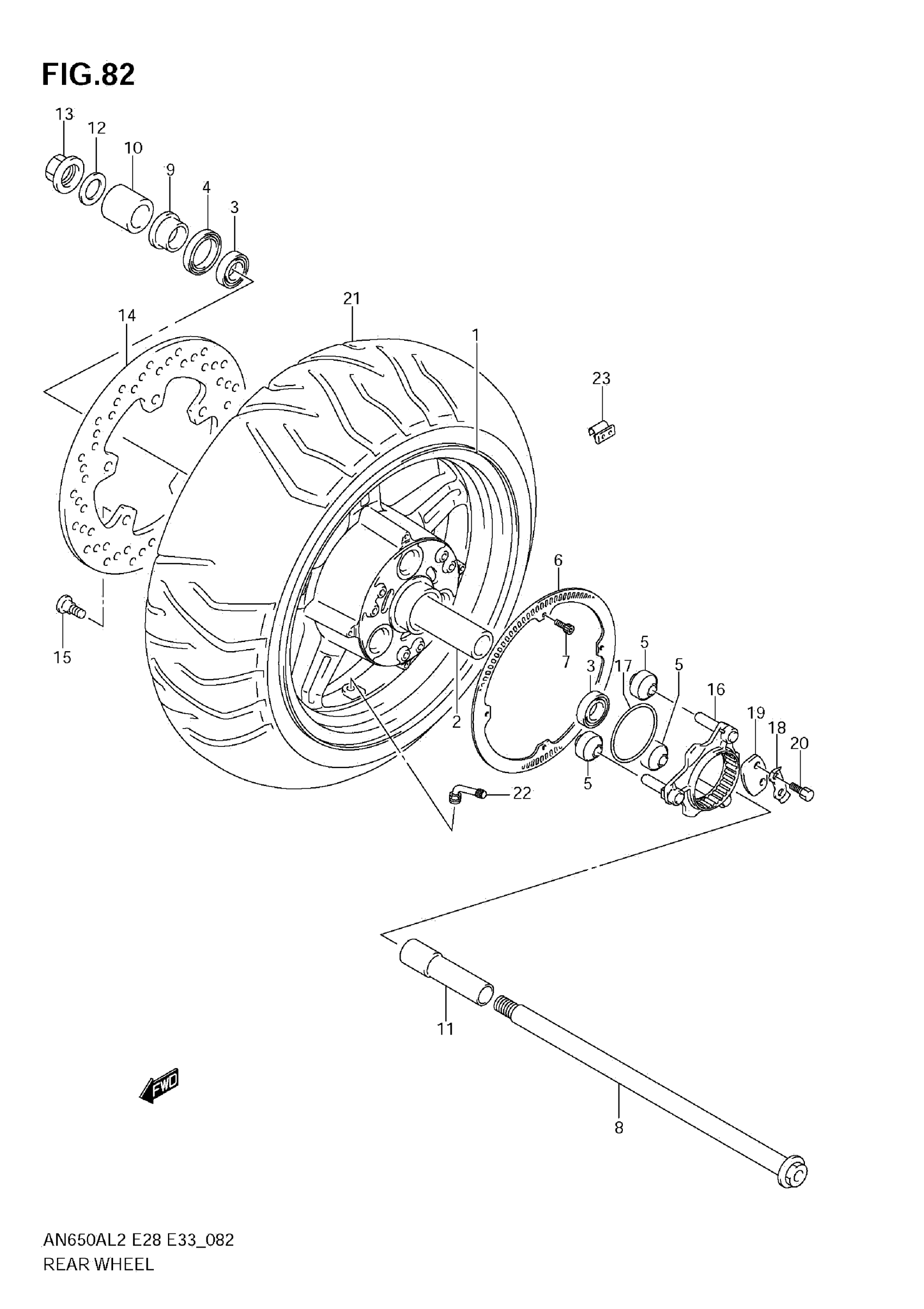

Suzuki AN650AL2 (2012) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (14M/CXMT4.50) (SILVER)

64111-10G20-YD8

$1,002.07

2

SPACER, REAR HUB BEARING

64731-10G00

$40.98

3

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

4

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

5

BUSH

09319-12062

$16.00

6

RING, SPEED SENSOR RR

64162-10G00

$239.07

7

BOLT

07130-0512A

$2.19

8

AXLE, REAR

64711-10G00

Unavailable

9

SPACER, RR AXLE RH

64741-10F00

$20.76

10

SPACER, REAR AXLE RH NO.1

64751-10G10

$15.75

11

SPACER, REAR AXLE LH

64772-10G00

Unavailable

12

WASHER

08322-0118B

$2.70

13

NUT

08319-3118A

$24.48

14

DISC, REAR BRAKE

69211-10G10

$283.60

15

BOLT (8X21)

09106-08160

$3.57

16

JOINT ASSY, REAR HUB DRIVEN

64680-10G20

Unavailable

17

O RING (D:2.1,ID:65)

09280-65003

$3.72

18

WASHER

09169-06030

$3.15

19

WASHER, THRUST

64677-10G00

Unavailable

20

BOLT (6X16)

09119-06049

$1.56

21

TIRE,RR(160/60R | TH01 R RADIAL This part replaces 65110-10G10.

65110-10G11

$284.38

22

VALVE ASSY, WHEEL RIM (TR412)

43130-39H00

$58.65

23

BALANCER, WHEEL (10G)

43222-73H10

$5.82

23

BALANCER, WHEEL (20G)

43224-73H10

$5.50

23

BALANCER, WHEEL (30G)

43226-73H10

$6.42
