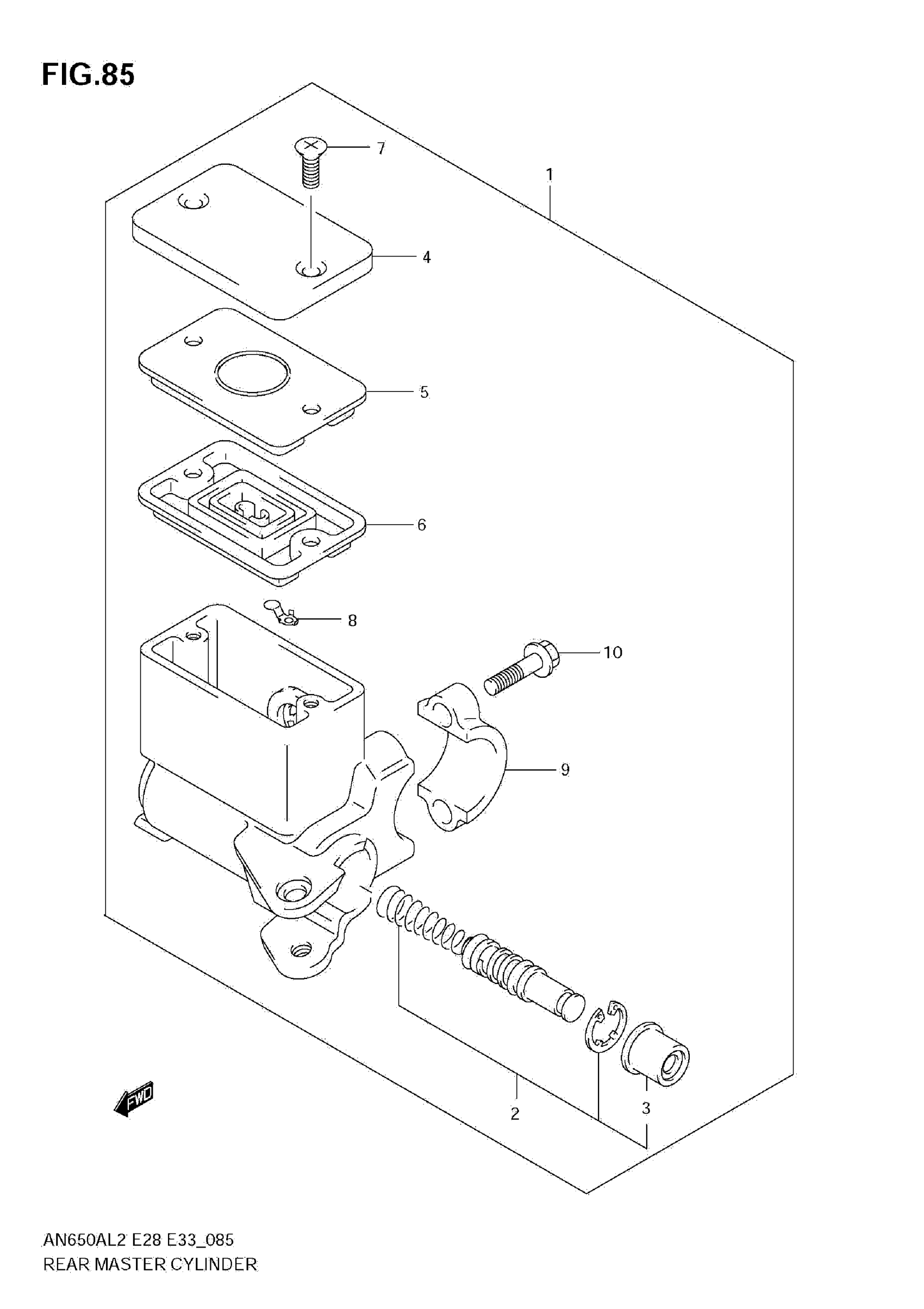

Suzuki AN650AL2 (2012) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-10G00

$337.88

2

PISTON/CUP SET

59600-04810

$41.38

3

BOOT

59666-44300

$5.30

4

CAP

59669-10G00

$43.22

5

PLATE, DIAPHRAGM

59668-41C00

$8.54

6

DIAPHRAGM

59667-49460

$8.95

7

SCREW

69689-49300

$1.81

8

PROTECTOR

59664-32F00

$13.20

9

.HOLDER

59671-36500

$11.50

10

BOLT

59675-02FA0

$3.49
