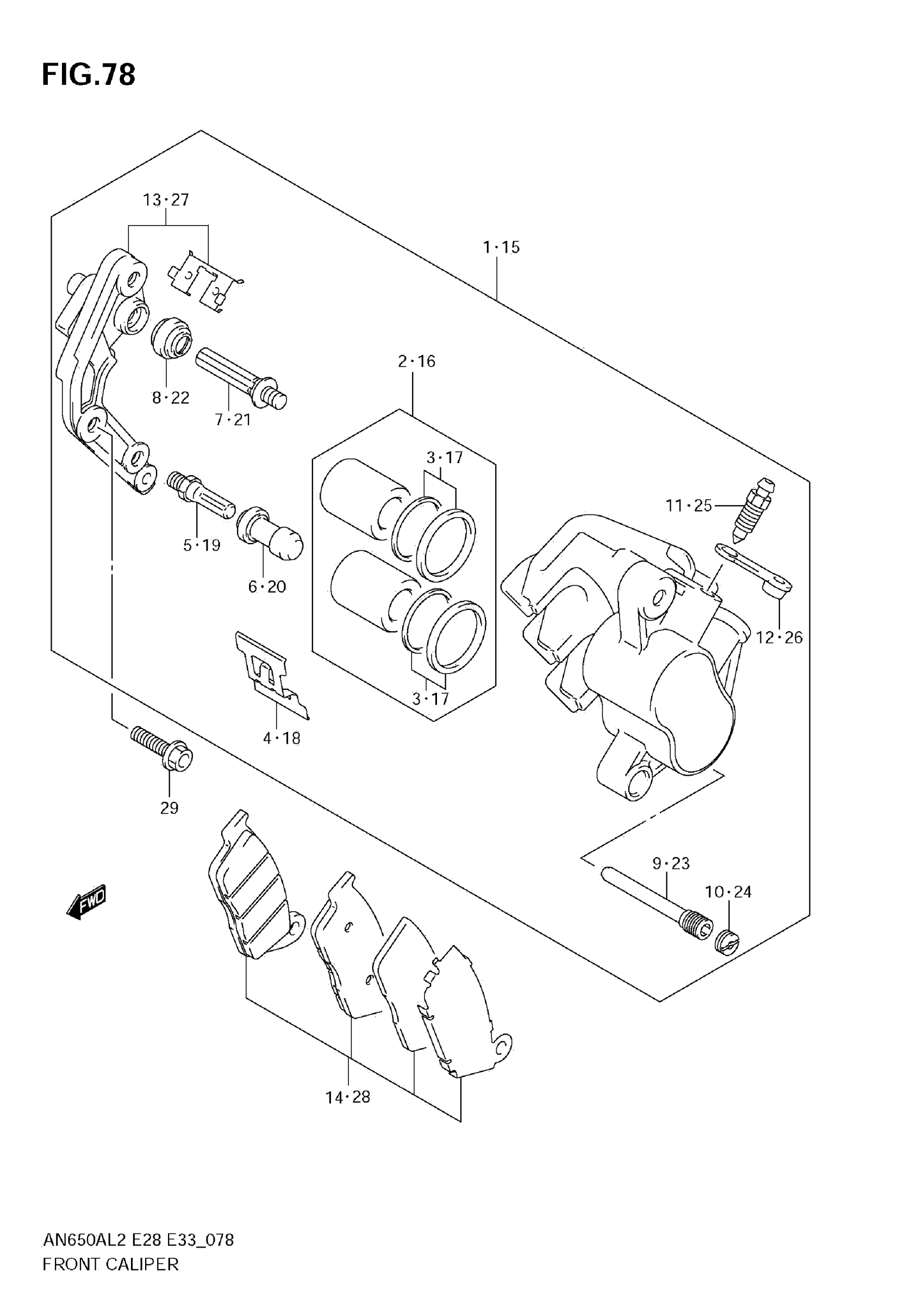

Suzuki AN650AL2 (2012) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-21E60-999

$410.20

2

PISTON SET

59300-21810

$74.77

3

SEAL SET, PISTON

59300-21860

$26.75

4

SPRING, PAD

59115-21E10

$16.60

5

BOLT

59382-27C30

$8.54

6

BOOT

59386-13A00

$7.28

7

PIN

59187-21E10

$30.18

8

BOOT

59303-14500

$5.06

9

PIN, HANGER

59145-21E10

$17.26

10

PLUG, PIN

59146-21E10

$5.62

11

BLEEDER

59121-10G00

$16.32

12

CAP

59122-01A00

$3.97

13

BRACKET RH

59151-21E10

$134.85

14

PAD & SHIM SET RH

59100-21860

$66.68

15

CALIPER ASSY, FRONT LH

59300-21E60-999

$410.20

16

PISTON SET

59300-21810

$74.77

17

SEAL SET, PISTON

59300-21860

$26.75

18

SPRING, PAD

59115-21E10

$16.60

19

BOLT

59382-27C30

$8.54

20

BOOT

59386-13A00

$7.28

21

PIN

59187-21E10

$30.18

22

BOOT

59303-14500

$5.06

23

PIN, HANGER

59145-21E10

$17.26

24

PLUG, PIN

59146-21E10

$5.62

25

BLEEDER

59121-10G00

$16.32

26

CAP

59122-01A00

$3.97

27

BRACKET LH

59351-21E10

Unavailable

28

PAD & SHIM SET LH

59100-21870

$66.68

29

BOLT (8X28)

09103-08359

$3.44
