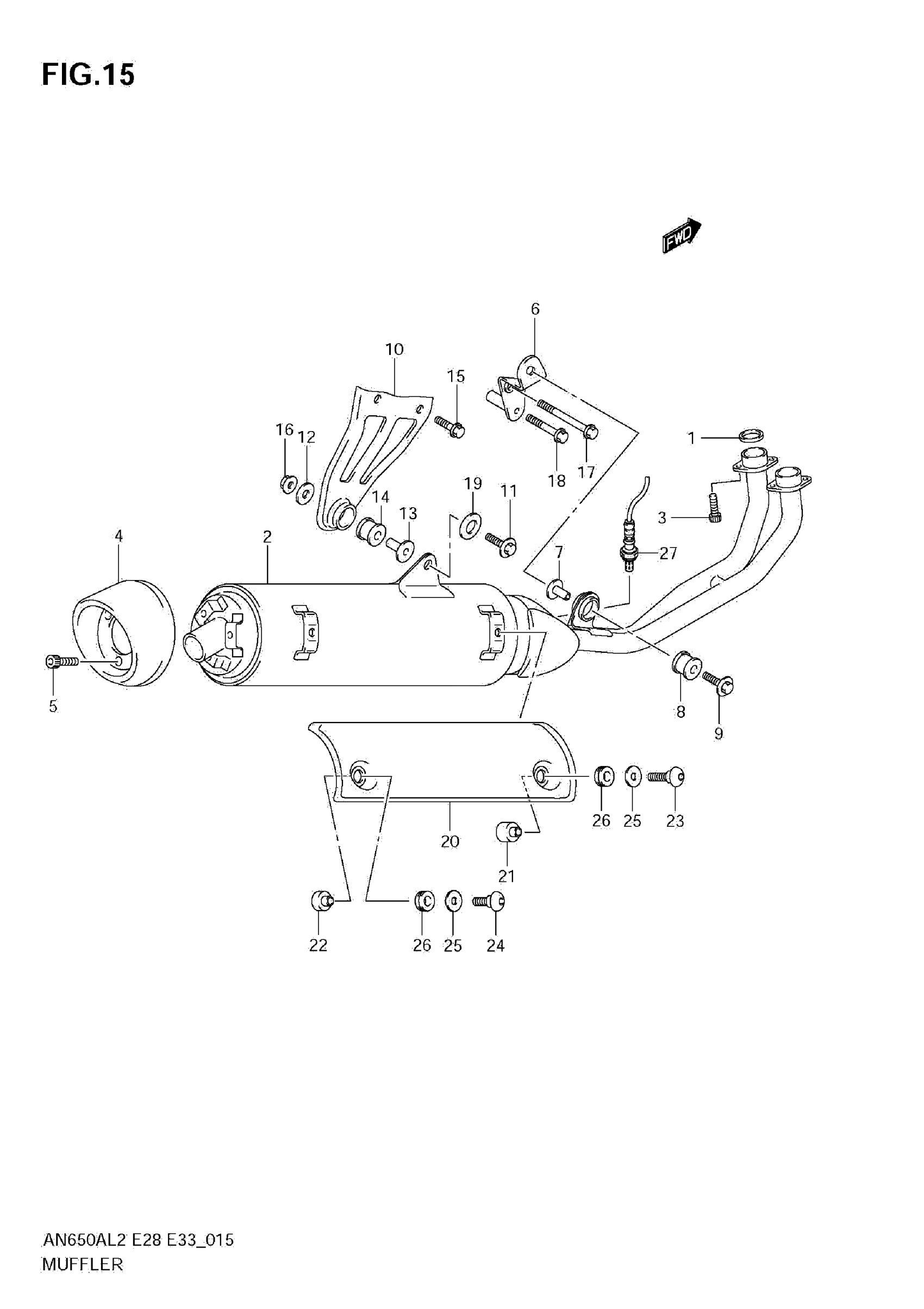

Suzuki AN650AL2 (2012) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

2

MUFFLER

14305-10GG0-H01

Unavailable

3

BOLT (8X25)

09106-08165

$4.03

4

COVER, MUFFLER REAR

14791-10G10

$223.23

5

BOLT (6X15)

09106-06078

$3.37

6

BRACKET, FRONT

14410-10G00

Unavailable

7

SPACER (8.6X12X27.1)

09180-08156

$6.70

8

CUSHION

09320-12049

$10.68

9

BOLT (8X45)

09116-08106

Unavailable

10

BRACKET, REAR

14470-10G10

$57.33

11

BOLT (8X45)

09106-08164

$6.38

12

WASHER (8.5X33X1.5)

09160-08146

$2.60

13

SPACER (8.6X12X27.1)

09180-08156

$6.70

14

CUSHION

09320-12049

$10.68

15

BOLT

01550-0820B

$2.83

16

NUT

08361-2508A

$1.97

17

BOLT (10X115)

09103-10063

$8.73

18

BOLT

01550-0880B

Unavailable

19

WASHER (8.5X28X1.5)

09160-08142

$2.76

20

COVER, MUFFLER

14781-10G11

$347.67

21

SPACER, MUFFLER COVER FRONT

14788-10G10

Unavailable

22

SPACER, MUFFLER COVER REAR

14789-10G10

Unavailable

23

SCREW (6X25)

09139-06029

$5.36

24

SCREW (6X20)

09139-06028

$3.70

25

WASHER (6.5X18X1.5)

09160-06036

$2.28

26

CUSHION (8.4X18X6)

09320-08066

$8.24

27

SENSOR, OXYGEN

18213-10G11

$403.37
