2012 Suzuki AN650AL2 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2012 Suzuki AN650AL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

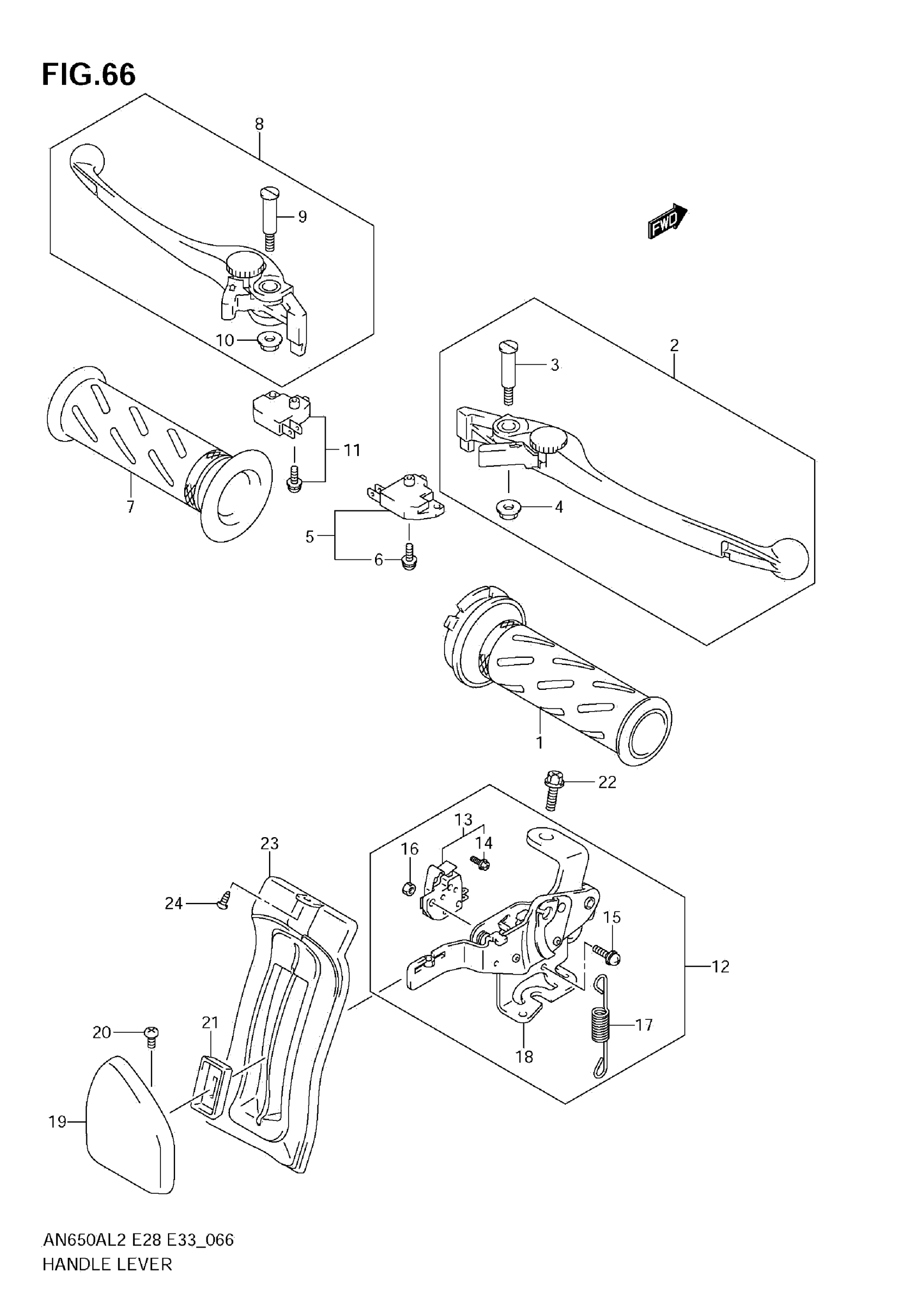

2012 Suzuki AN650AL2 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

1
Out of stock

2

LEVER ASSY, FRONT BRAKE This part replaces 57300-10G31.

57300-10G32

1
Out of stock

3

.BOLT, PIVOT This part replaces 57431-17H01.

57431-17H02

1
Out of stock

4

NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J00.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

GRIP, LH (BLACK) This part replaces 57211-22D01-291.

57211-22D02-291

1
Out of stock

8

LEVER ASSY, REAR BRAKE This part replaces 57500-10G31.

57500-10G32

1
Out of stock

9

.BOLT, PIVOT This part replaces 57431-17H01.

57431-17H02

1
Out of stock

10

NUT

08319-2106A

1
Out of stock

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J00.

57560-14J02

1
Out of stock

12

LEVER ASSY, BRAKE LOCK

57800-10G01

1
Out of stock

13

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

1
Out of stock

14

SCREW

57465-17C00

1
Out of stock

15

SCREW

57852-10G00

1
Out of stock

16

NUT

57853-10G00

1
Out of stock

17

SPRING, RETURN

57804-10G00

1
Out of stock

18

LEVER, BRAKE LOCK

57810-10G00

1
Out of stock

19

KNOB, BRAKE LOCK

57820-10G00

1
Out of stock

20

SCREW

02112-0408B

1
Out of stock

21

COVER, KNOB

57831-10G00

1
Out of stock

22

BOLT

01550-0612B

2
Out of stock

23

PLATE, LEVER SEAL

57950-10G00

1
Out of stock

24

SCREW

03511-0512A

2
Out of stock
