Description

Price

1

WHEEL, FRONT (15M/CXMT3.50) (SILVER)

54111-10G20-YD8

$973.32

2

SPACER, HUB (18X22.2X113.5)

54731-10G00

$26.50

3

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

4

OIL SEAL (24X40X7)

09282-24004

$5.73

5

OIL SEAL (22X40X7)

09285-22004

$5.51

6

RING, SPEED SENSOR FR

54162-10G00

Unavailable

7

BOLT

07130-0512A

$2.19

8

AXLE, FRONT

54711-10G10

$144.57

9

DISC, FRONT BRAKE RH

59211-10G10

$337.88

10

BOLT (8X21)

09106-08160

$3.22

11

TIRE,FRONT,120/ | TH01 F RADIAL This part replaces 55110-10G00.

55110-10G01

$325.88

12

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

13

BALANCER, WHEEL (10G)

43222-73H10

$6.57

13

BALANCER, WHEEL (20G)

43224-73H10

$4.02

13

BALANCER, WHEEL (30G)

43226-73H10

$4.69

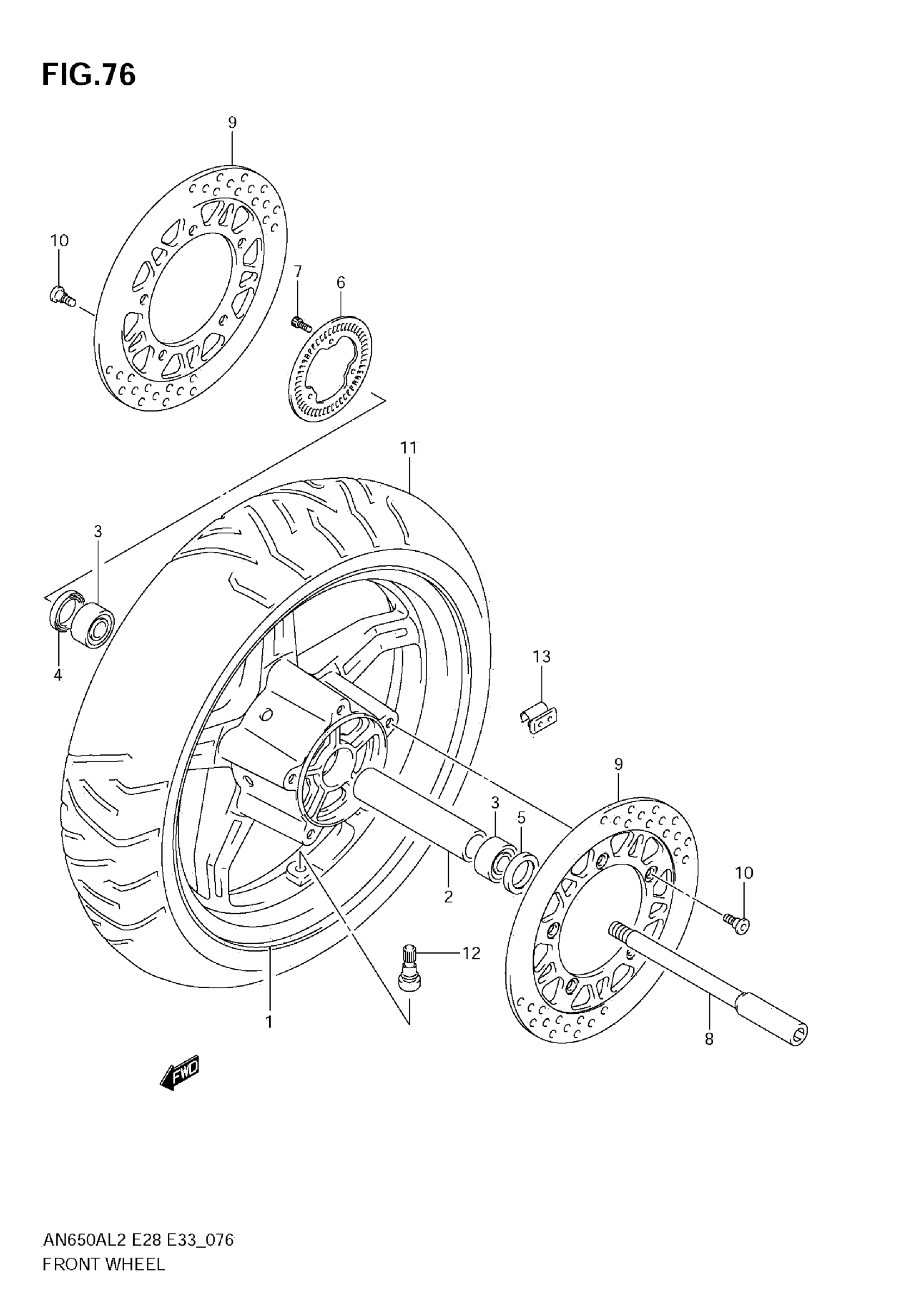

Suzuki AN650AL2 (2012) FRONT WHEEL Diagram
