Description

Price

1

SHIELD, LEG FRONT (GRAY)

48111-10G00-YWC

$1,337.29

1

SHIELD, LEG FRONT (WHITE)

48111-10G00-YPA

$757.25

1

SHIELD, LEG FRONT (BLACK)

48111-10G00-YVB

Unavailable

2

SCREW (6X12)

09136-06004

$2.15

3

NUT

09148-05038

$1.97

4

COVER, FRONT LEG (GRAY)

48130-10GA0-YWC

Unavailable

4

COVER, FRONT LEG (WHITE)

48130-10GA0-YPA

$165.87

4

COVER, FRONT LEG (BLACK)

48130-10GA0-YVB

$270.23

5

CLIP

09409-08326

$2.48

6

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

7

SHIELD, LEG LOWER (GRAY)

48137-10G01-Y0J

$123.73

8

GROMMET

09409-08329

$2.40

9

PLUNGER

09409-08330

$2.38

10

SCREW (5X16)

09132-05053

$2.28

11

COVER, LOWER BRACKET

94458-10G00

$22.08

12

BOLT (6X12)

09111-06107

$2.60

13

.EMBLEM,ABS (GRAY) This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.60

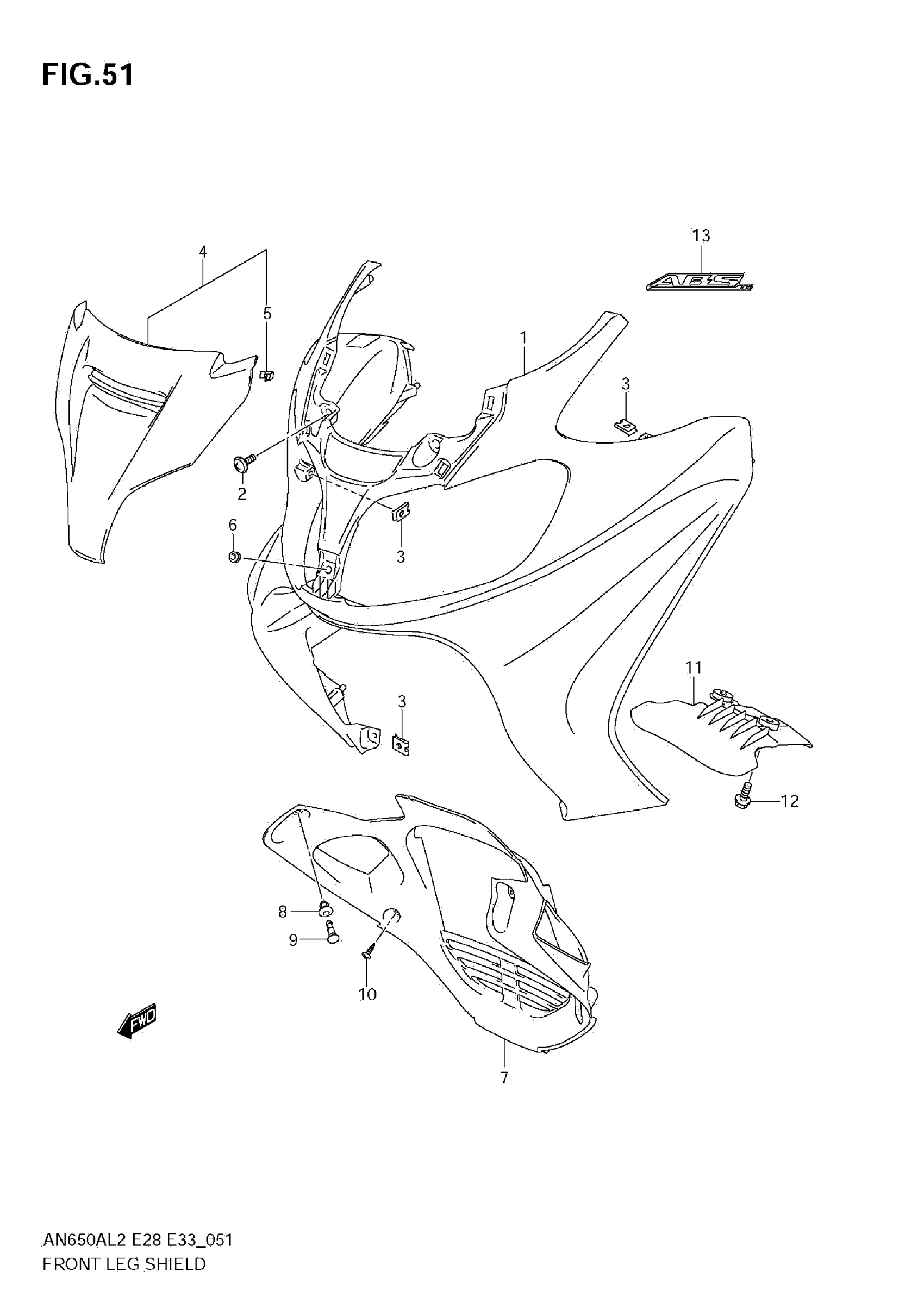

Suzuki AN650AL2 (2012) FRONT LEG SHIELD Diagram
