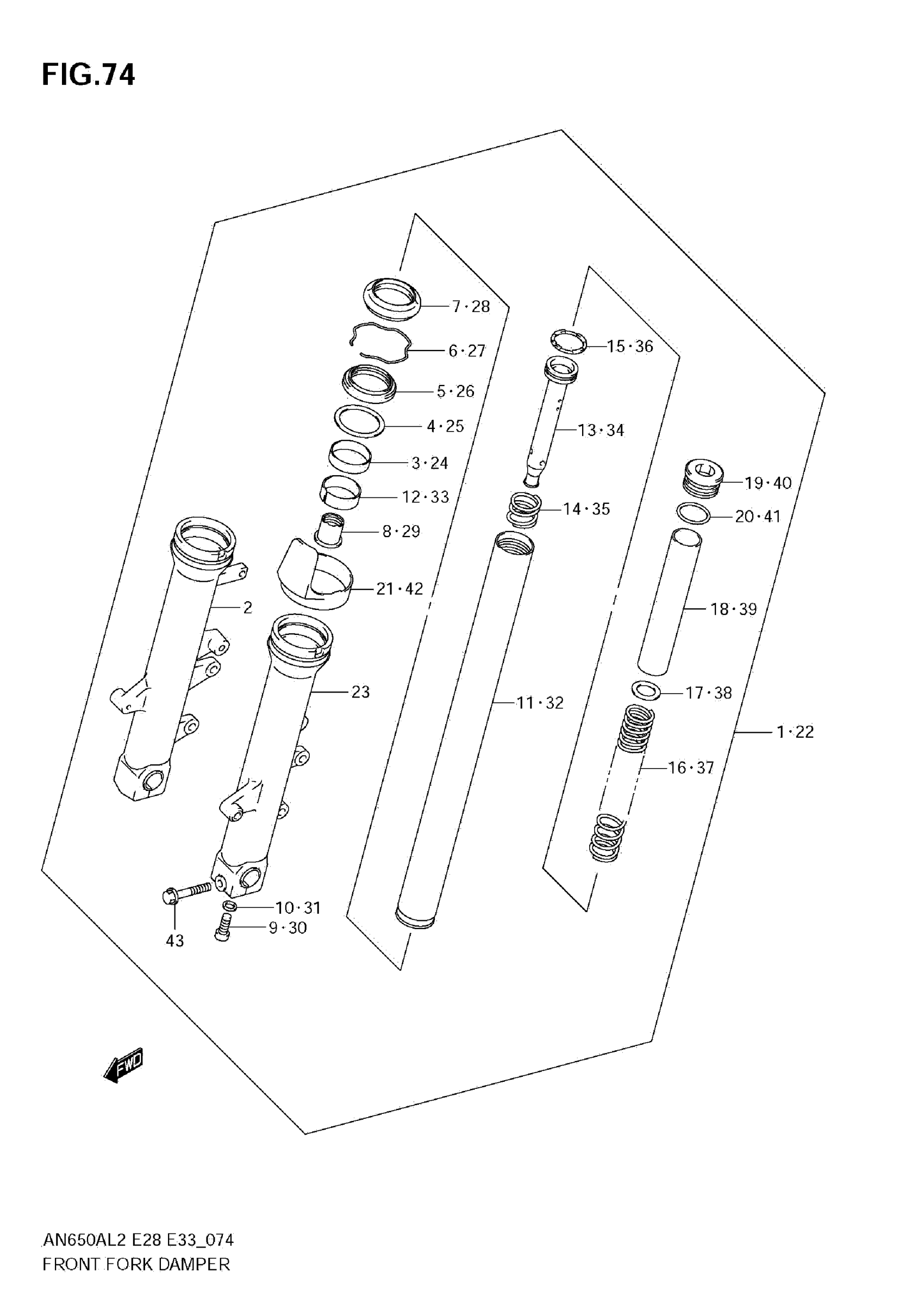

Suzuki AN650AL2 (2012) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-10G50

Unavailable

2

TUBE, OUTER RH

51130-10G10

Unavailable

3

METAL, SLIDE

51167-26E10

$24.52

4

WASHER

51158-05A00

$5.83

5

OIL SEAL

51153-10G50

$20.70

6

RING, SNAP

51156-49440

$5.05

7

SEAL, DUST

51173-14F00

$23.07

8

PIECE, OIL LOCK

51195-33D10

$26.20

9

GASKET

51148-41310

$2.26

10

BOLT

51147-16510

$4.34

11

TUBE, INNER

51110-10G00

$392.77

12

PISTON

51121-33D10

$18.90

13

CYLINDER

51146-10G10

Unavailable

14

SPRING, REBOUND

51177-10G10

Unavailable

15

RING, PISTON

51196-31F00

$7.05

16

SPRING, FRONT

51171-10G10

$73.20

17

WASHER

51356-10D03

$7.50

18

SPACER

51176-10G10

Unavailable

19

CAP

51351-10G10

Unavailable

20

O RING (D:3.5,ID:31.7)

09280-32001

$2.06

21

PROTECTOR

51201-31F00

Unavailable

22

DAMPER ASSY,FR This part replaces 51104-10G50.

51104-10G51

$731.93

23

TUBE, OUTER LH

51140-10G10

Unavailable

24

METAL, SLIDE

51167-26E10

$24.52

25

WASHER

51158-05A00

$5.83

26

OIL SEAL

51153-10G50

$20.70

27

SNAP RING

51156-49440

$5.05

28

SEAL, DUST

51173-14F00

$23.07

29

PIECE, OIL LOCK

51195-33D10

$26.20

30

BOLT

51147-16510

$4.34

31

GASKET

51148-41310

$2.26

32

TUBE, INNER

51110-10G00

$392.77

33

PISTON

51121-33D10

$18.90

34

CYLINDER

51146-10G10

Unavailable

35

SPRING, REBOUND

51177-10G10

Unavailable

36

RING, PISTON

51196-31F00

$7.05

37

SPRING, FRONT

51171-10G10

$73.20

38

WASHER

51356-10D03

$7.50

39

SPACER

51176-10G10

Unavailable

40

CAP

51351-10G10

Unavailable

41

O RING (D:3.5,ID:31.7)

09280-32001

$2.06

42

PROTECTOR

51201-31F00

Unavailable

43

BOLT, AXLE STOPPER This part replaces 51166-10G00.

51166-10G10

$5.38
