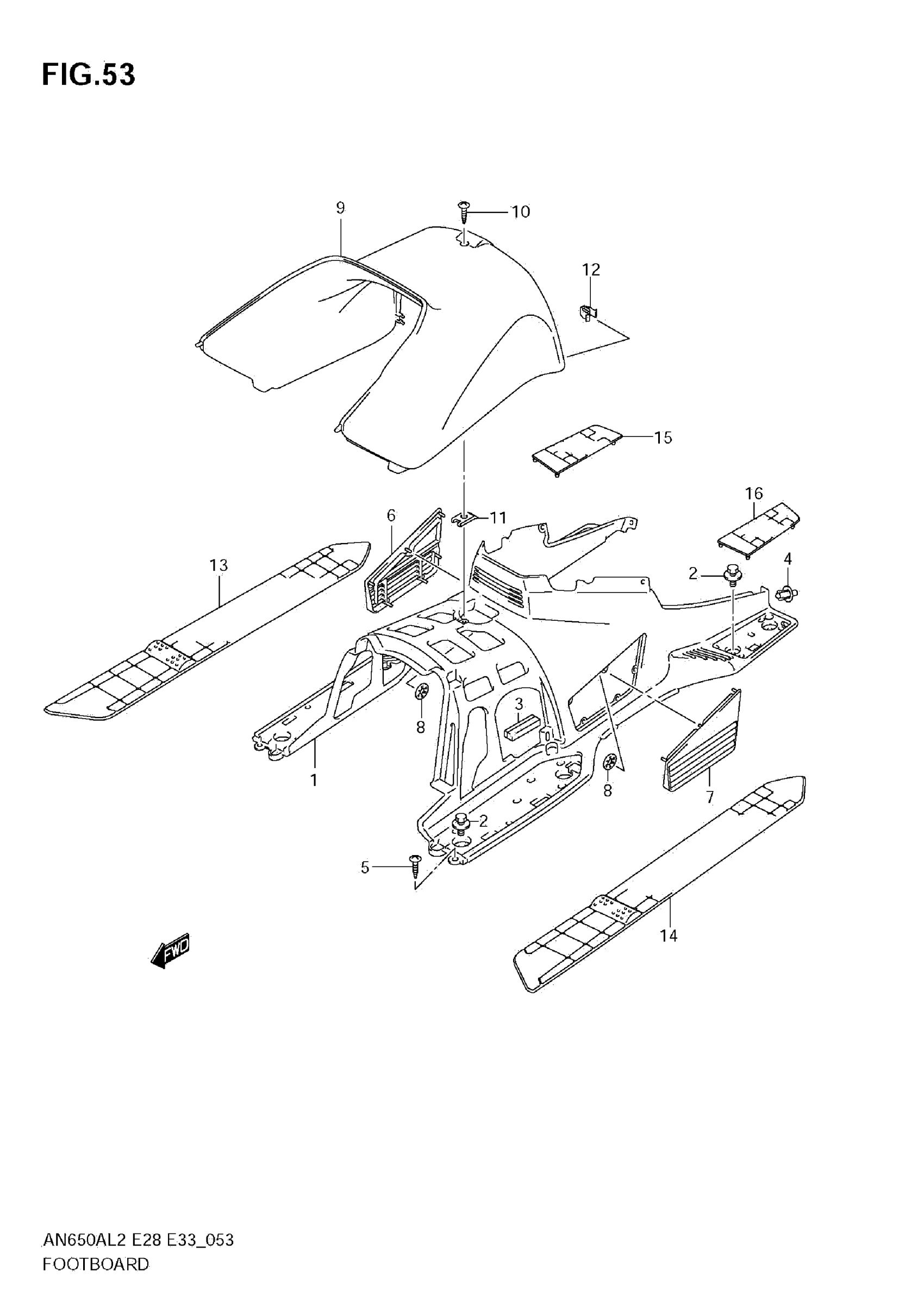

Suzuki AN650AL2 (2012) FOOTBOARD Diagram

#

Description
Price

1

FOOTBOARD (GRAY)

48121-10G00-Y0J

$348.60

2

BOLT (6X16)

09116-06107

$2.31

3

CUSHION

48127-10G00

$22.52

4

CLIP (BLACK)

09409-08308-5ES

$1.97

5

SCREW (5X16)

09132-05053

$2.28

6

LOUVER, AIR RH (GRAY)

48122-10G00-Y0J

$21.20

7

LOUVER, AIR LH (GRAY)

48123-10G10-Y0J

$20.80

8

NUT

09148-03010

$2.63

9

LID, MAINTENANCE (GRAY)

48191-10G01-Y0J

$147.77

10

SCREW (5X16)

09132-05053

$2.28

11

NUT

09148-05038

$1.97

12

CLIP

09409-08326

$2.48

13

MAT, FLOOR FRONT RH (GRAY)

48211-10G00-Y0J

$103.03

14

MAT, FLOOR FRONT LH (GRAY)

48221-10G00-Y0J

Unavailable

15

MAT, FLOOR REAR RH (GRAY)

48231-10G00-Y0J

$43.87

16

MAT, FLOOR REAR LH (GRAY)

48241-10G00-Y0J

$43.87
