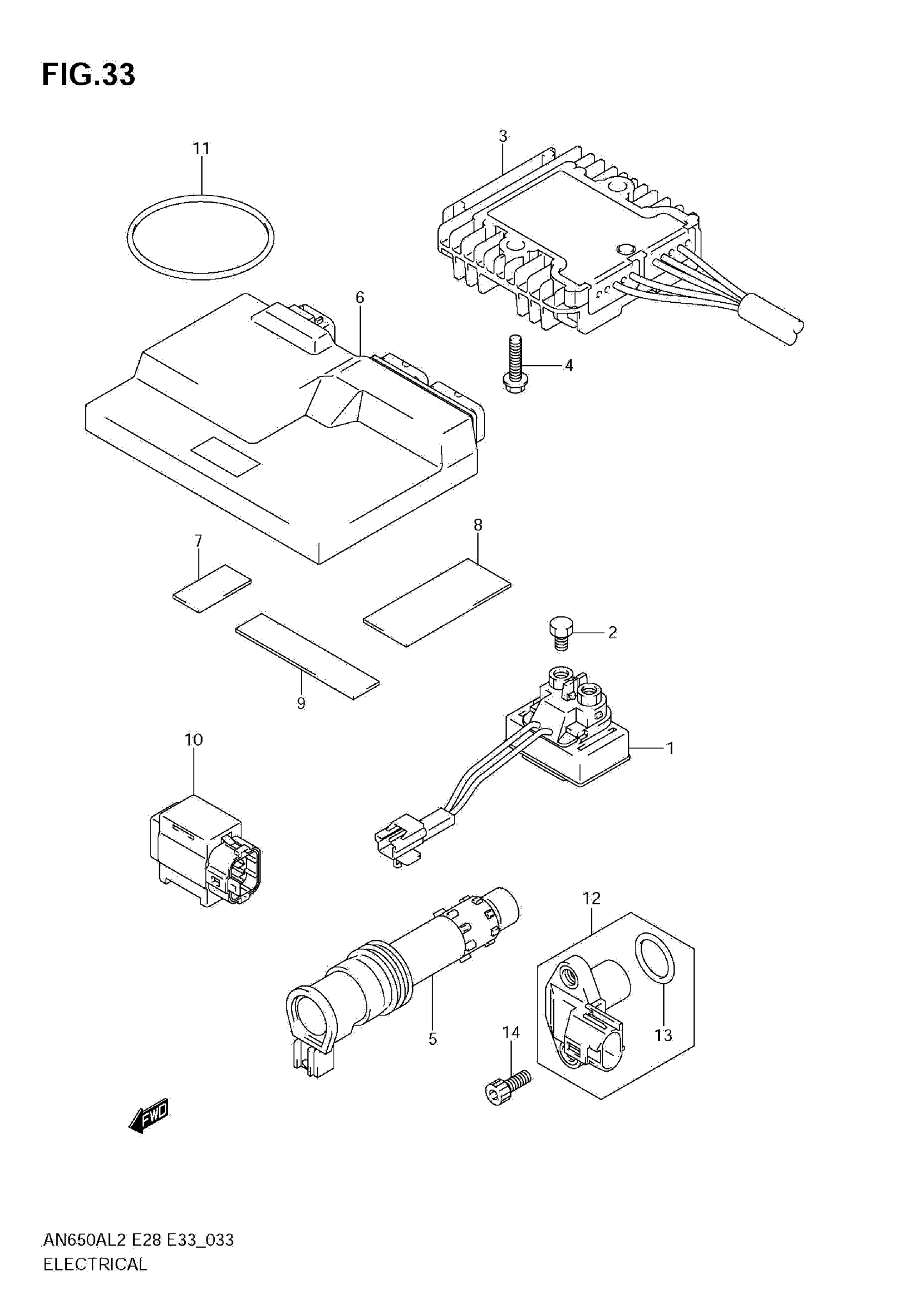

Suzuki AN650AL2 (2012) ELECTRICAL (AN650A L2 E28) Diagram

#

Description

Price

1

RELAY ASSY,STAR This part replaces 31800-10G00.

31800-10G02

$67.77

2

SCREW (6X8)

09128-06013

$1.49

3

RECTIFIER ASSY

32800-10G30

$326.67

4

BOLT

02162-0620C

$1.71

5

COIL ASSY, IGNITION

33410-47H00

$150.98

6

CONTROL UNIT, FI

32920-10GH1

$2,045.57

7

CUSHION, CONTROL

33651-37000

$4.48

8

CUSHION, CONTROL (80X80X2) | CUT AS REQUIRED (30X80)

33652-07D00

$5.64

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

10

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

11

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

$2.60

12

SENSOR ASSY, CAM POSITION

32160-02F10

$150.35

13

PACKING

32161-02F00

$9.72

14

BOLT

07130-0616B

$2.39
