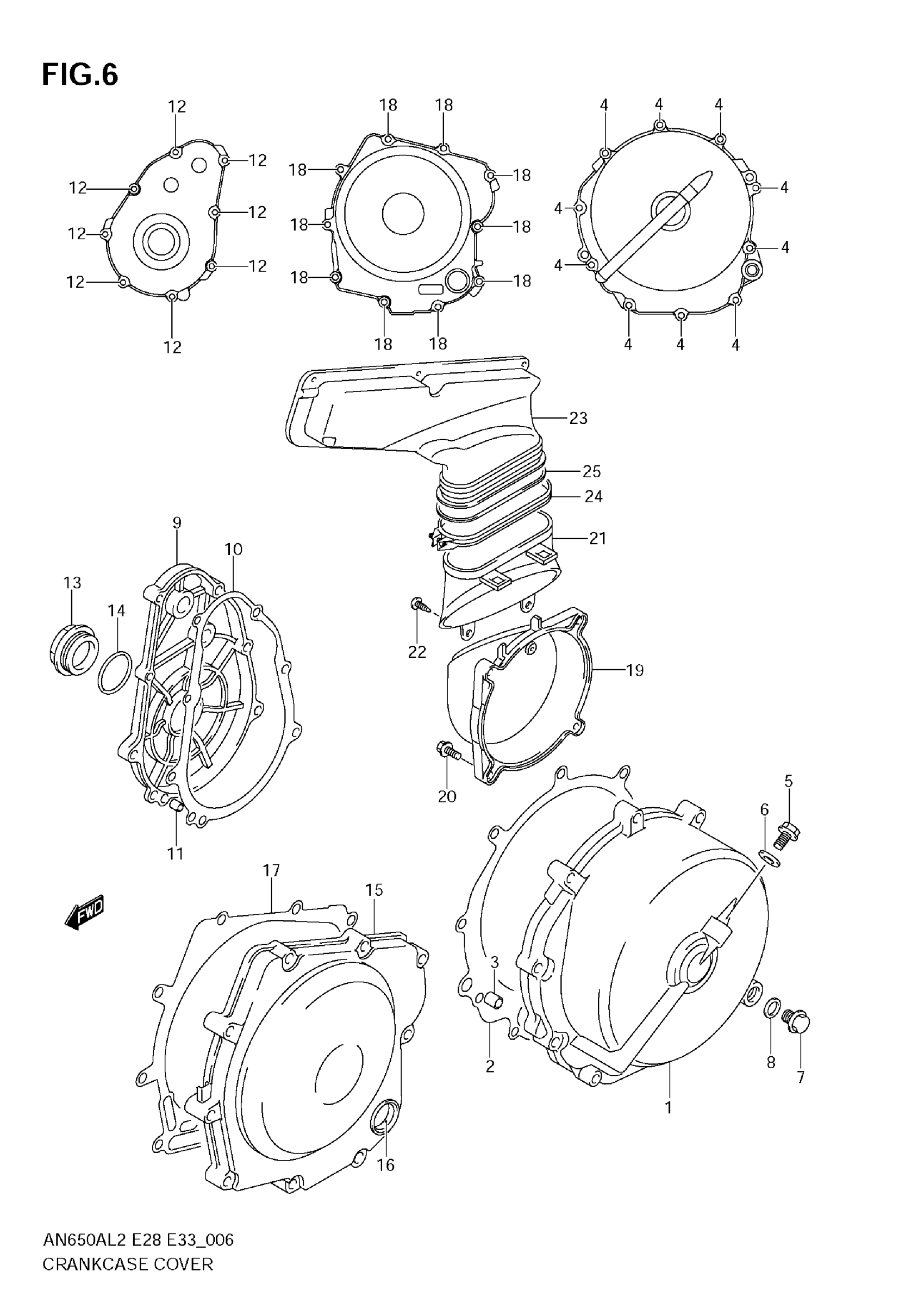

Suzuki AN650AL2 (2012) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-10G00

$237.42

2

GASKET, CLUTCH COVER (NA)

11482-10G00

$15.10

3

PIN

04211-09149

$1.65

4

BOLT

01547-0630A

$2.32

5

BOLT (8X12)

01550-0812A

$2.32

6

GASKET (8.2X14X1)

09168-08016

$1.65

7

PLUG (12X10)

09247-12006

$2.82

8

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

9

COVER, STARTER CLUTCH

11381-10G00

Unavailable

10

GASKET, STARTER CLUTCH COVER

11491-10G00

$9.55

11

PIN

04211-09149

$1.65

12

BOLT

01547-0625A

$2.01

13

PLUG (36X10)

09259-36021

$13.80

14

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

15

COVER, MAGNETO

11350-10G00

Unavailable

16

LENS, OIL LEVEL

11971-33210

$18.20

17

GASKET, MAGNETO COVER

11483-10G00

$12.90

18

BOLT

01547-0630A

$2.32

19

DUCT, BELT COOLING NO.1

11371-10G00

Unavailable

20

BOLT

01547-0625A

$2.01

21

DUCT, BELT COOLING NO.2

11372-10G00

Unavailable

22

SCREW

03141-0512A

$1.70

23

DUCT, BELT COOLING NO.3

11373-10G00

Unavailable

24

CLAMP, BELT COOLING DUCT

11374-10G00

Unavailable

25

GUIDE, BELT COOLING DUCT NO.3

11375-10G00

Unavailable
