Description

Price

1

CHAIN, CAMSHAFT DRIVE

12760-19F01

$197.58

2

GUIDE, CAM CHAIN NO.1

12771-10G10

Unavailable

3

TENSIONER,CAM C This part replaces 12811-10G11.

12811-10G12

$56.98

4

WASHER

08322-0108B

$2.34

5

BOLT, CAM CHAIN TENSIONER

12812-26B02

$8.43

6

GUIDE, CAM CHAIN NO.2

12782-10G00

Unavailable

7

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.02

8

SCREW

02122-0612A

$1.49

9

ADJUSTER ASSY, TENSIONER

12830-10G01

$131.20

10

GASKET (6.2X13X1.2)

09168-06018

$1.77

11

BOLT, TENSIONER ADJUSTER This part replaces 09103-06221.

09103-06250

$2.23

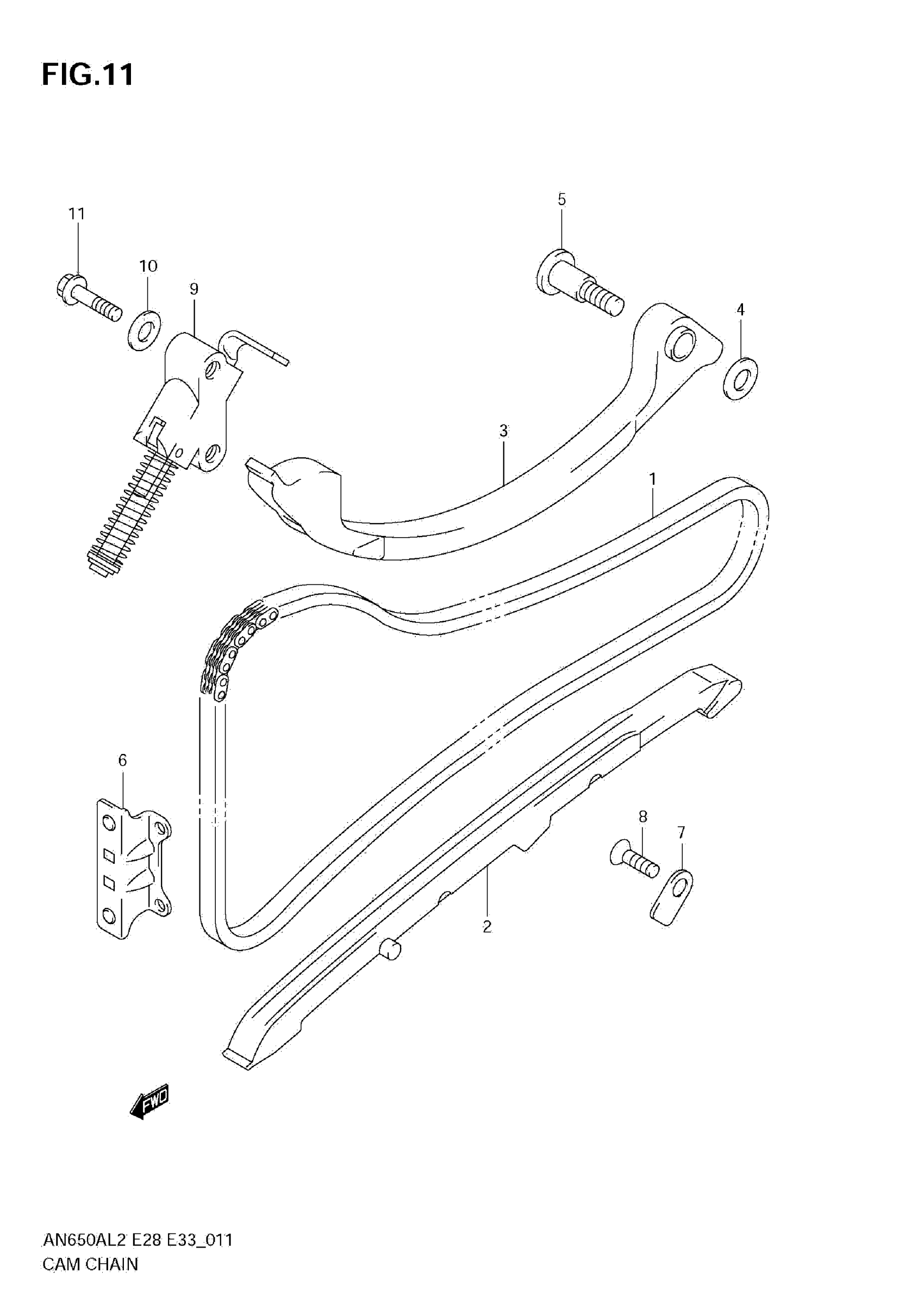

Suzuki AN650AL2 (2012) CAM CHAIN Diagram
