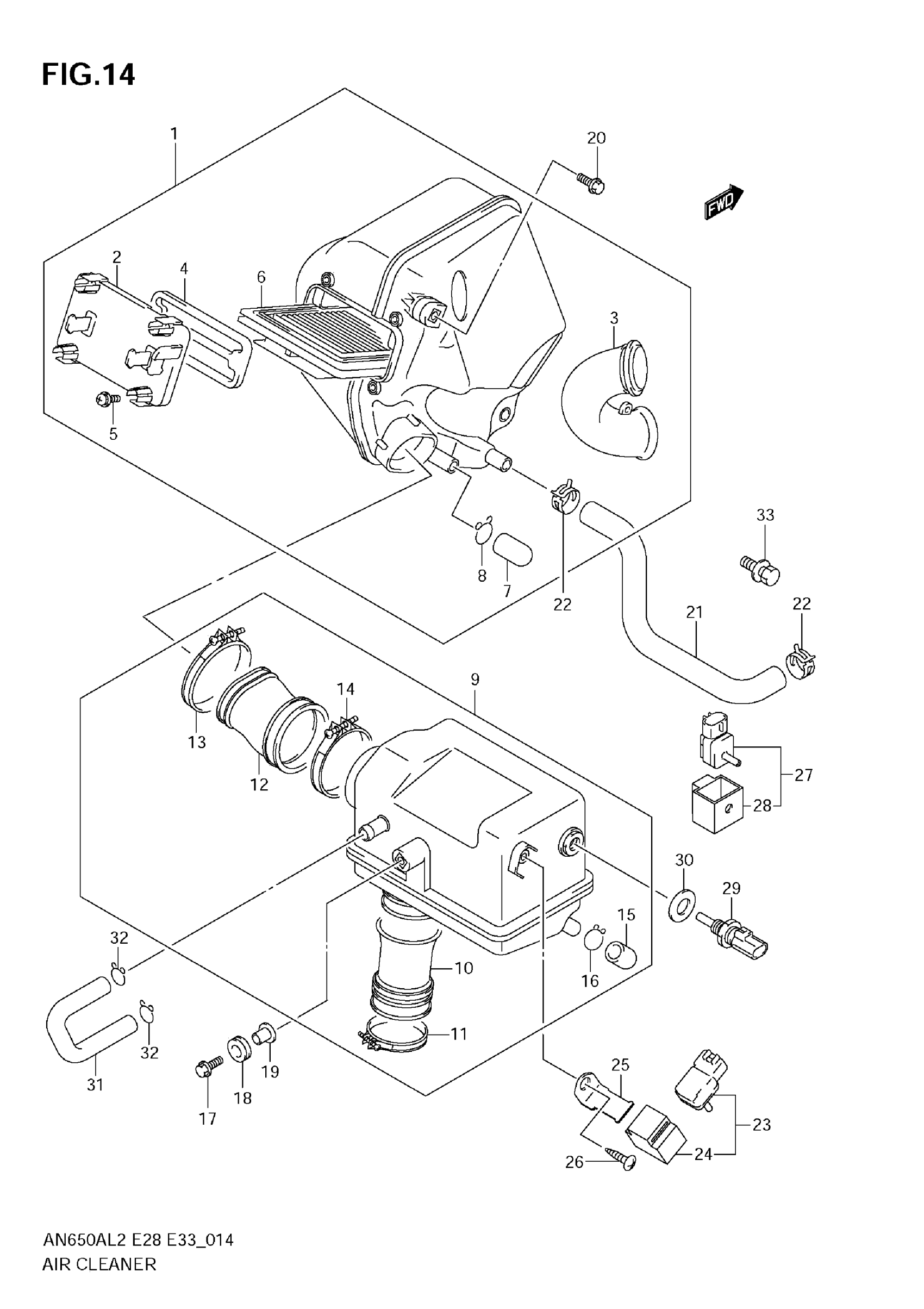

Suzuki AN650AL2 (2012) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR This part replaces 13701-10G00.

13701-10G01

Unavailable

2

CAP, AIR CLEANER

13741-10G00

$17.70

3

TUBE, INLET

13891-10G00

Unavailable

4

GASKET, CAP

13747-10G00

$5.88

5

SCREW

02142-05127

$1.97

6

FILTER

13780-10G00

$42.35

7

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

8

CLIP

09401-14101

$2.34

9

CHAMBER ASSY, AIR

13710-10G00

Unavailable

10

TUBE, OUTLET

13881-10G00

Unavailable

11

CLAMP

09402-50208

$4.77

12

TUBE,JOINT This part replaces 13739-10G00.

13739-10G01

$21.22

13

CLAMP (CLEANER SIDE)

13826-10G00

Unavailable

14

CLAMP (CHAMBER SIDE)

13826-10G10

Unavailable

15

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

16

CLIP

09401-14101

$2.34

17

BOLT (6X25)

09116-06150

$2.59

18

CUSHION

09320-10501

$6.23

19

SPACER (6.5X10X11.6)

09180-06319

$3.85

20

BOLT

01550-0612B

$2.39

21

TUBE, BREATHER

13851-10G00

Unavailable

22

CLIP

09401-18406

Unavailable

23

SENSOR, BOOST

15630-29G20

$283.88

24

COVER

15625-29G10

Unavailable

25

BRACKET

15629-10G00

Unavailable

26

SCREW

03541-0512B

$1.78

27

SENSOR, BOOST

15630-29G20

$283.88

28

COVER

15625-29G10

Unavailable

29

SENSOR, AIR TEMP

13650-61B00

$109.08

30

GASKET (12X17X1)

09168-12017

$1.95

31

HOSE, STARTER AIR

13697-10G00

Unavailable

32

CLIP

09401-15101

$2.26

33

BOLT (6X16)

09116-06130

$2.28
