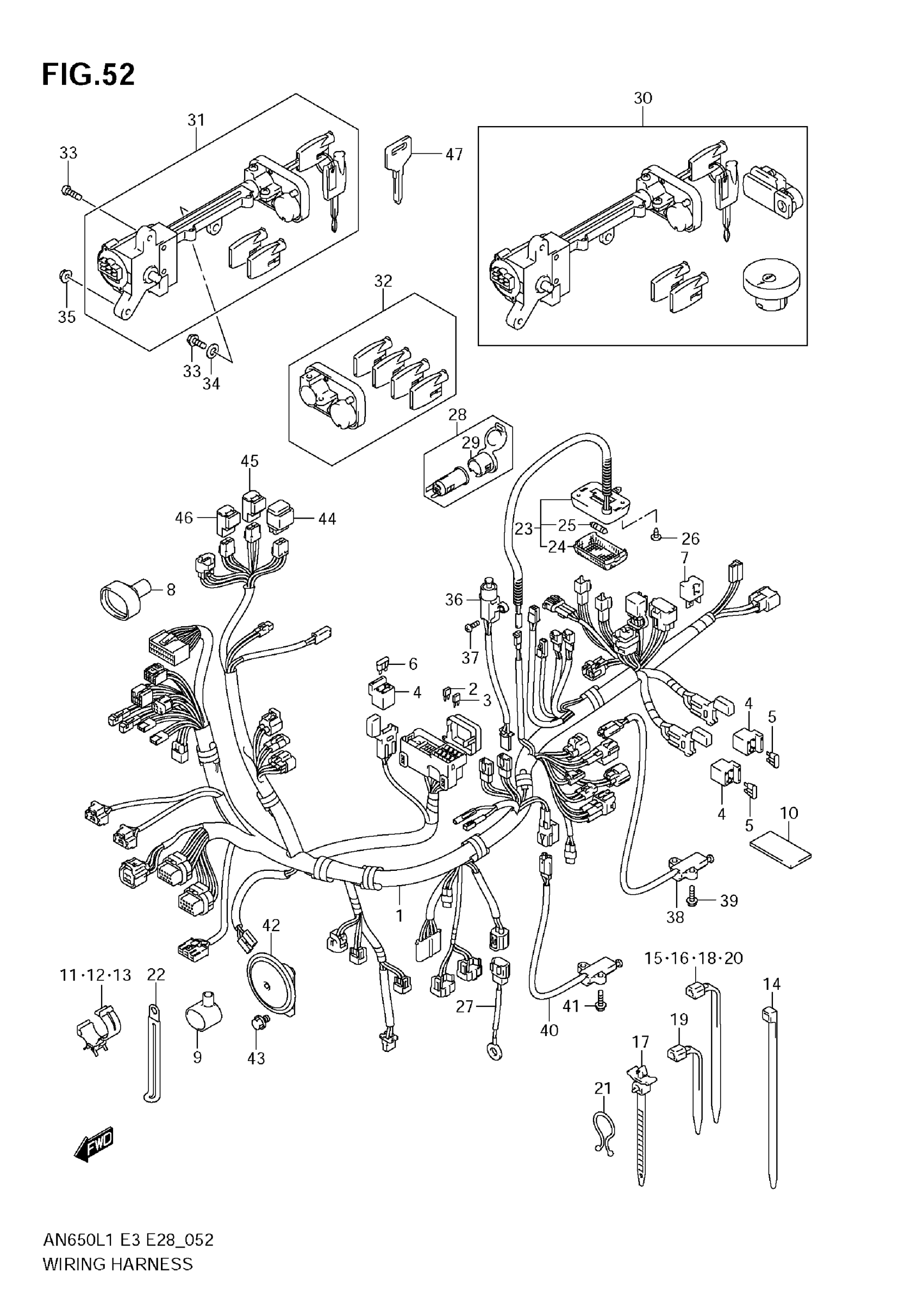

Suzuki AN650AL1 (2011) WIRING HARNESS (AN650 L1 E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-13J50

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

HOLDER

36742-39D00

$19.15

5

FUSE (40A)

09481-40101

$9.35

6

FUSE (15A)

09481-15101

$2.53

7

DIODE

32800-16A00

$23.07

8

COVER

36618-21E00

Unavailable

9

BOOT

36717-19H00

Unavailable

10

PROTECTOR

36920-08D10

Unavailable

11

CLAMP

09403-20403

$3.58

12

CLAMP

09403-25401

Unavailable

13

CLAMP

09403-30403

Unavailable

14

CLAMP (L:100)

09407-10404

$2.90

15

CLAMP (L:95)

09407-11401

$2.63

16

CLAMP (L:125)

09407-14403

$2.26

17

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

18

CLAMP (L:165)

09407-18402

$2.19

19

CLAMP (L:190)

09407-19401

$3.05

20

CLAMP (L:235)

09407-25401

$4.66

21

CLAMP (ID:11.5)

09408-00012

$2.13

22

CLAMP (L:45)

09404-06429

$1.83

23

LAMP ASSY, TRUNK BOX

36210-10G00

Unavailable

24

LENS

36212-79001

Unavailable

25

BULB (12V,5W)

09471-12073

$3.03

26

SCREW

03541-0412B

$1.49

27

WIRE,OIL PRESSU This part replaces 36851-19H00.

36851-19H01

$11.07

28

SOCKET ASSY (GRAY)

39410-76F00-P4Z

Unavailable

29

COVER (GRAY)

39441-76F00-P4Z

$14.77

30

LOCK SET This part replaces 37103-10833.

37103-10836

$471.45

31

LOCK ASSY,STEER This part replaces 37120-10853.

37120-10855

$339.63

32

SHUTTER, STEERING LOCK

37155-10G01

Unavailable

33

SCREW (6X20)

09139-06048

$2.14

34

WASHER (6.5X18X1.6)

09160-06109

$1.49

35

NUT

08316-1006B

$2.50

36

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

37

SCREW

02112-0516B

$1.93

38

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$80.70

39

BOLT

01550-0620B

$2.39

40

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$70.52

41

BOLT

01550-0620B

$2.39

42

HORN ASSY

38500-10G00

Unavailable

43

BOLT

01550-0812B

$2.73

44

RELAY ASSY, FAN MOTOR

38740-38B00

$63.30

45

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

46

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

47

KEY, BLANK

37146-10G00

$38.13
