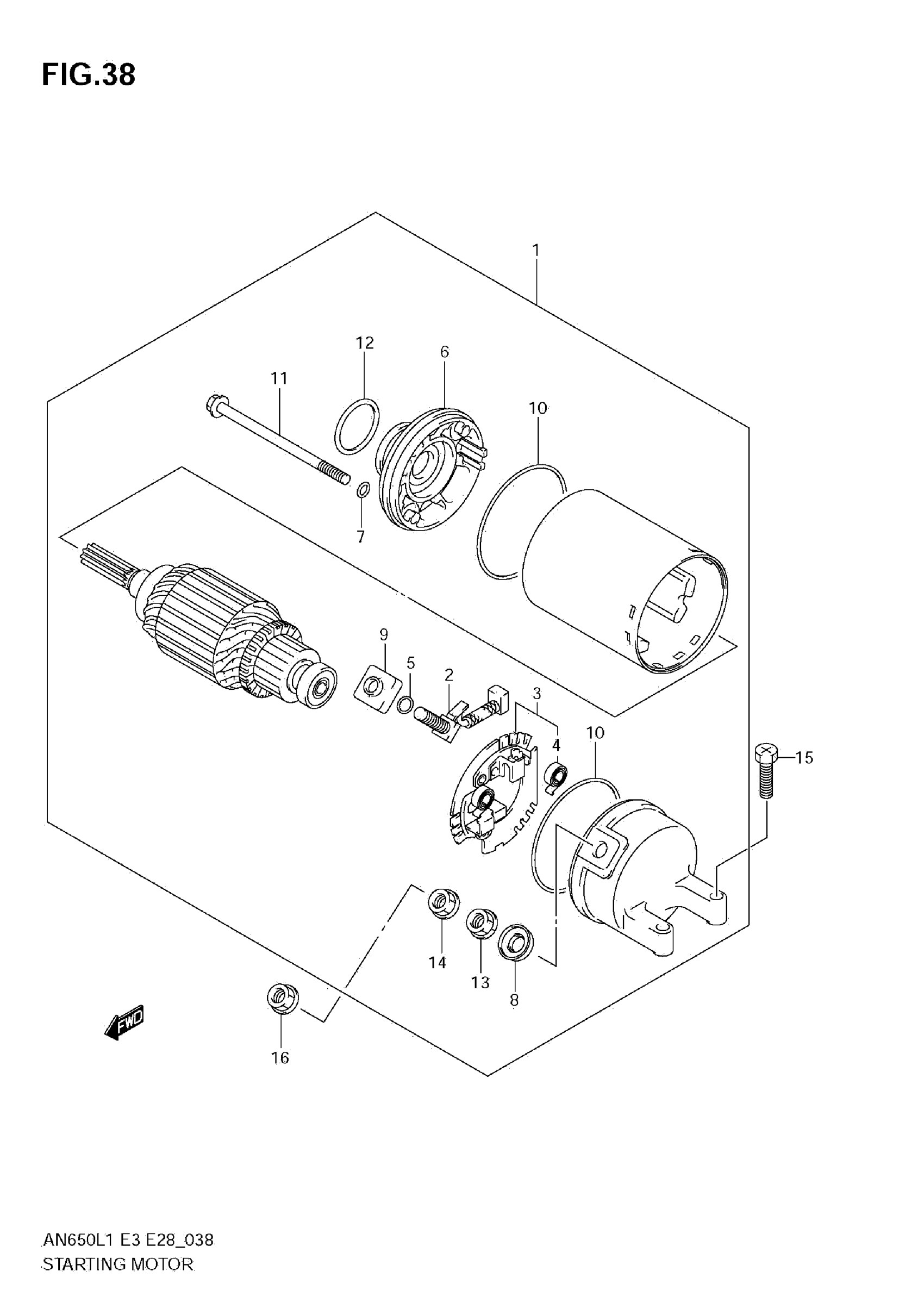

Suzuki AN650AL1 (2011) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-10G00

$661.85

2

BRUSH (+)

31130-38300

$18.43

3

HOLDING ASSY, BRUSH

31132-27A01

$73.55

4

SPRING

31135-65010

$4.52

5

O RING

31143-38300

$5.10

6

HOUSING ASSY, STARTING

31150-49500

Unavailable

7

O RING

31156-38300

$4.52

8

BUSHING

31171-38300

$8.93

9

BUSHING

31172-38300

$6.55

10

O RING

31264-44110

$11.87

11

BOLT

31281-88C00

Unavailable

12

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

13

.NUT

08310-00067

$2.13

14

NUT

08361-3506A

$1.80

15

BOLT (6X25)

09103-06212

$2.47

16

NUT

08361-3506A

$1.80
