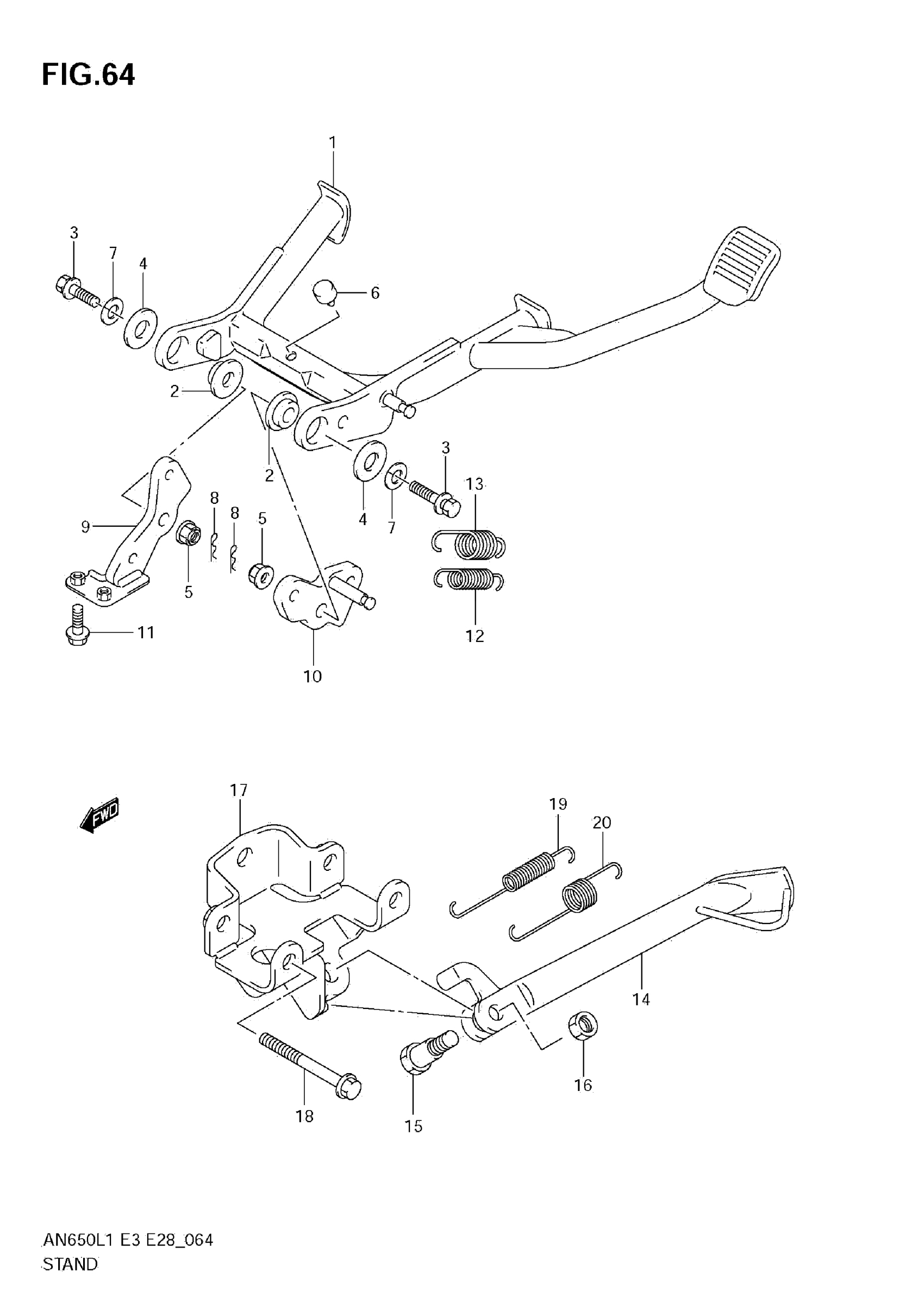

Suzuki AN650AL1 (2011) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-10G14

$293.05

2

SPACER

42253-10G01

$11.17

3

BOLT (10X35)

09101-10036

$5.28

4

WASHER (10.5X24X1.6)

09160-10126

$2.12

5

NUT, PROP STAND

42321-03FK0

$5.17

6

CUSHION

09321-10036

$6.63

7

LOCK WASHER

08321-0110A

$1.84

8

CLIP

09385-10005

$1.56

9

BRACKET, CENTER STAND RH

42270-10G40

$43.27

10

BRACKET, CENTER STAND LH

42280-10G01

$35.10

11

BOLT

01550-0820A

$2.23

12

SPRING

09443-14057

$9.59

13

SPRING

09443-22009

$9.59

14

STAND, PROP

42310-10G00

$129.45

15

BOLT (10X37.5)

09111-10058

$6.66

16

NUT, PROP STAND

42321-03FK0

$5.17

17

BRACKET, PROP STAND

42330-10G02

Unavailable

18

BOLT

01550-0875A

$3.55

19

SPRING

09443-12050

$10.28

20

SPRING

09443-21005

$12.55
