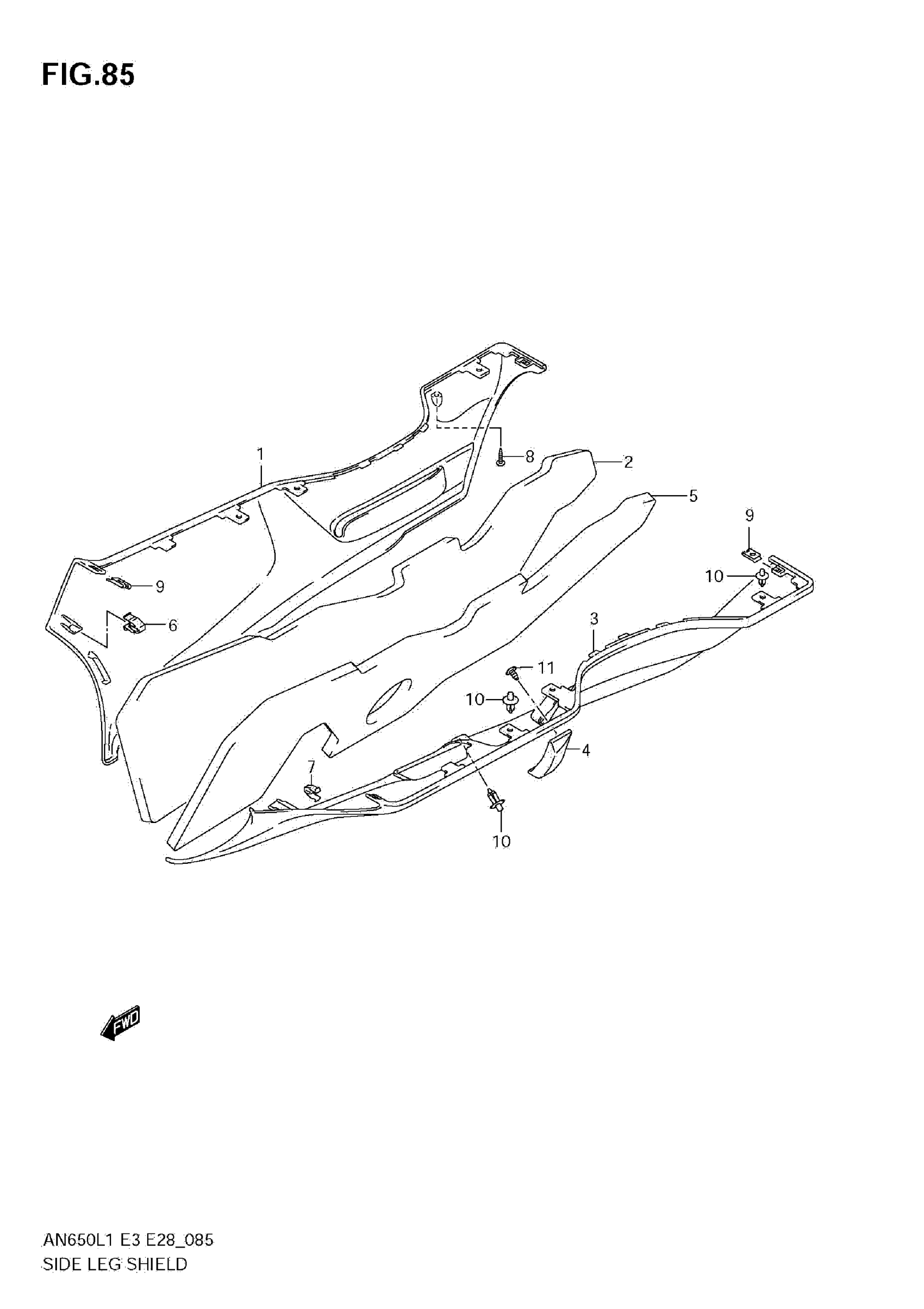

Suzuki AN650AL1 (2011) SIDE LEG SHIELD (AN650A L1 E28) Diagram

#

Description
Price

1

SHIELD, LEG SIDE RH (BLACK)

48171-10G00-YVB

Unavailable

1

SHIELD, LEG SIDE RH (WHITE)

48171-10G00-YPA

$371.53

1

SHIELD, LEG SIDE RH (GRAY)

48171-10G00-YHG

$361.90

2

CUSHION, RH

48172-10G00

$163.80

3

CLIP

09409-08326

$2.48

4

SHIELD, LEG SIDE LH (WHITE)

48181-10G20-YVB

Unavailable

4

SHIELD, LEG SIDE LH (WHITE)

48181-10G20-YPA

Unavailable

4

SHIELD, LEG SIDE LH (GRAY)

48181-10G20-YHG

$361.90

5

COVER, LH

48183-10G00

$22.42

6

CUSHION, LH

48182-10G00

$166.88

7

CLIP

09409-08326

$2.48

8

SCREW (5X16)

09132-05053

$2.28

9

NUT

09148-05038

$1.97

10

CLIP (BLACK)

09409-08308-5ES

$1.97

11

SCREW

03541-0516A

$1.49
