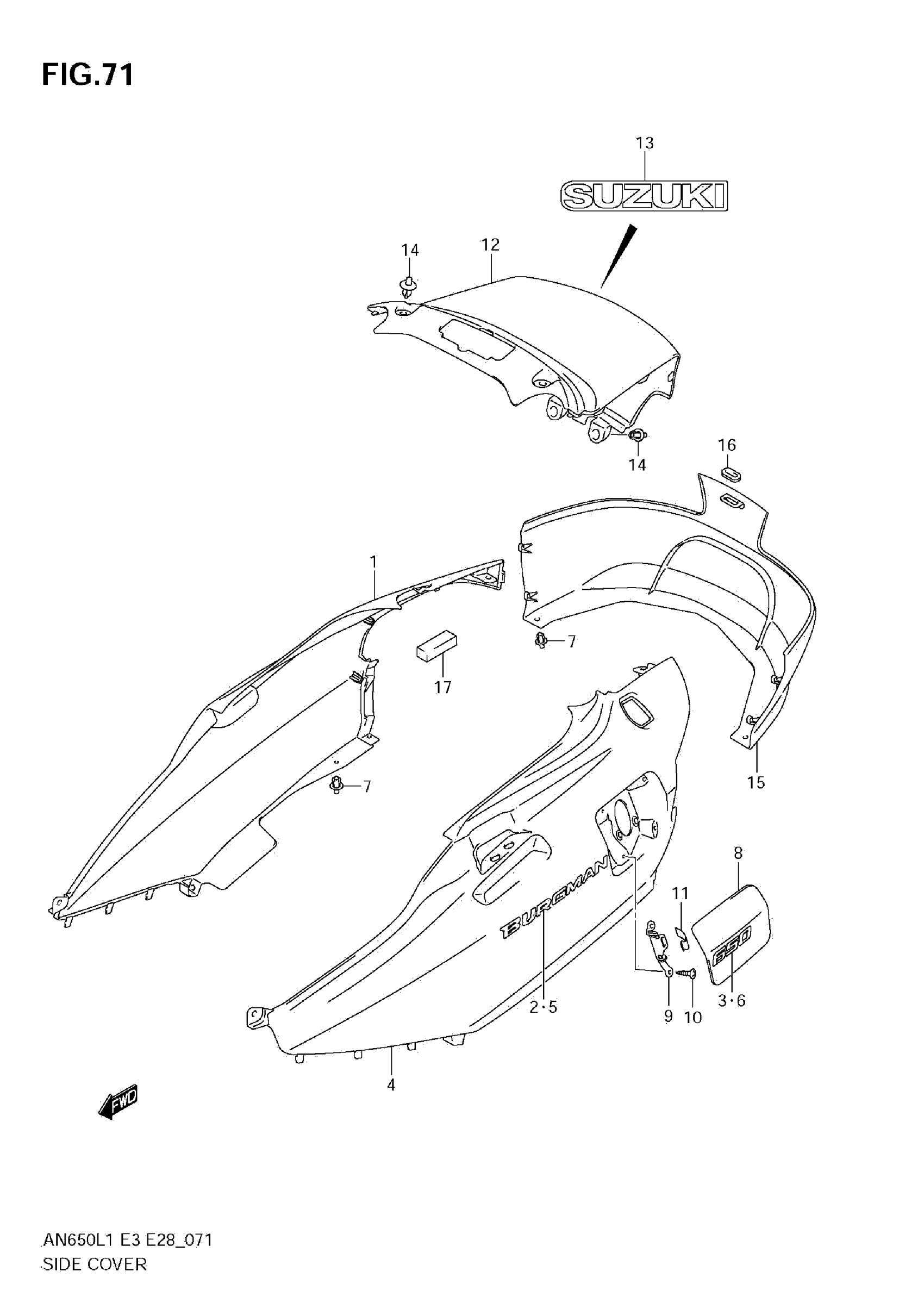

Suzuki AN650AL1 (2011) SIDE COVER (AN650 L1 E33) Diagram

#

Description
Price

1

COVER,SIDE,R This part replaces 47111-10G20-YPA.

47111-10G21-YPA

$312.57

1

COVER, SIDE RH (BLACK)

47111-10G20-YVB

Unavailable

2

EMBLEM, SIDE COVER

68131-10G10

$61.93

3

EMBLEM, "650"

68131-10GA0

$28.27

4

COVER,SIDE,L This part replaces 47211-10G31-YPA.

47211-10G32-YPA

$327.05

4

COVER, SIDE LH (BLACK)

47211-10G31-YVB

Unavailable

5

EMBLEM, SIDE COVER

68131-10G10

$61.93

6

EMBLEM, "650"

68131-10GA0

$28.27

7

CLIP (BLACK)

09409-06314-5PK

$2.78

8

LID, FUEL (BLACK)

47381-10G11-YPA

$45.37

8

LID, FUEL (WHITE)

47381-10G11-YVB

Unavailable

9

HINGE, FUEL LID

47382-10G10

$8.65

10

SCREW

03541-0512B

$1.78

11

SPRING, LID

47388-10G01

$5.11

12

COVER, FRAME CENTER (WHITE)

47311-10G01-YPA

Unavailable

12

COVER, FRAME CENTER (BLACK)

47311-10G01-YVB

Unavailable

13

.EMBLEM,"SUZUKI" (SILVER) | FOR YVB This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

13

EMBLEM,"SUZUKI" | FOR YPA This part replaces 68271-34A00-YJH.

68271-34A01-YJH

$8.35

14

CLIP (BLACK)

09409-08308-5ES

$1.97

15

COVER, FRAME LOWER (WHITE)

47321-10G00-YPA

$112.17

15

COVER, FRAME LOWER (BLACK)

47321-10G00-YVB

Unavailable

16

CUSHION This part replaces 09320-04008.

09320-04012

$2.91

17

CUSHION, FRAME COVER

47115-10G00

$4.27
